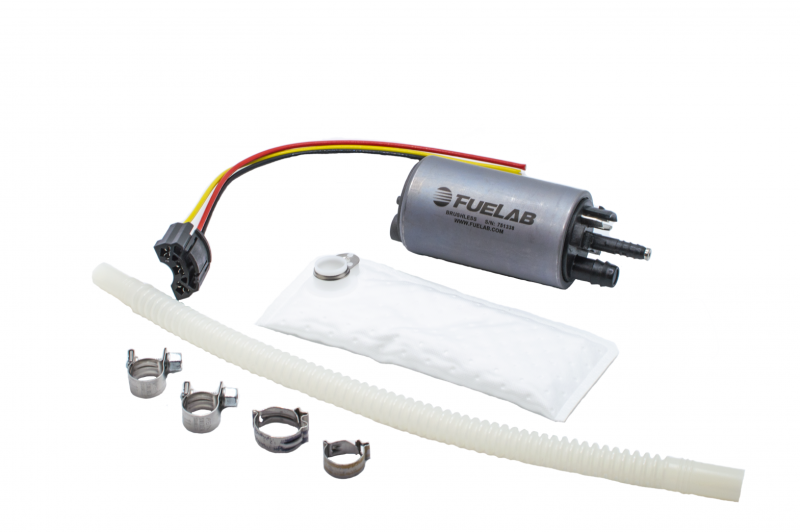

Fuelab 49614 500LPH In-Tank Brushless Fuel Pump 9mm Barb Universal Fit

Vehicle Fitment

• Universal Fit - Compatible with custom and retrofit applications requiring a high-flow in-tank fuel pump

Features

• Delivers 500 LPH (132 GPH) at 3 bar (45 psi) with 13.5V input
• Supports both carbureted and EFI systems
• Compatible with gasoline, E85, and methanol fuels
• Brushless motor design for increased efficiency and longevity
• Requires external brushless pump controller for operation
• Compact 41.5mm diameter facilitates easy integration
• Includes integrated 6mm barb siphon for jet pump applications
• Individually tested with performance and current draw reports

Specifications

• Flow Rate: 500 LPH @ 3 bar (45 psi)
• Maximum Pressure: 8.6 bar (125 psi)
• Voltage: 13.5V DC
• Current Draw: 13 Amps
• Inlet: Integrated with pre-filter
• Outlet: 9mm (3/8") barb
• Siphon Outlet: 6mm barb
• Weight: 11.5 oz (326 grams)
• Designed for in-tank use only

Included Components

• 1x Fuelab 49614 In-Tank Brushless Fuel Pump
• 1x Pre-filter
• 1x Wire lead harness

Product Description

The Fuelab 49614 is engineered for high-performance fuel systems requiring substantial flow rates and reliability. Its brushless motor design ensures efficient operation and extended service life, making it ideal for both carbureted and EFI applications. With a compact form factor, it can be seamlessly integrated into various fuel tanks, including OEM modules.

This pump delivers a robust 500 liters per hour at 3 bar pressure, supporting engines up to 1500 horsepower. It is compatible with a range of fuels, including gasoline, E85, and methanol. The inclusion of a 6mm barb siphon outlet allows for integration with jet pump systems, enhancing fuel delivery consistency. Note that an external brushless pump controller is required for operation.
