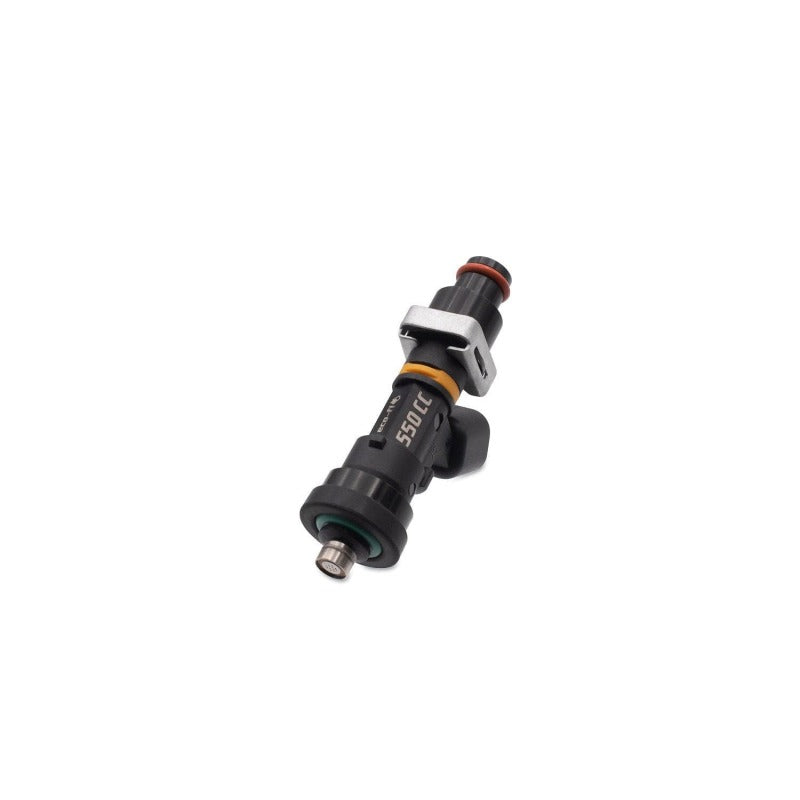

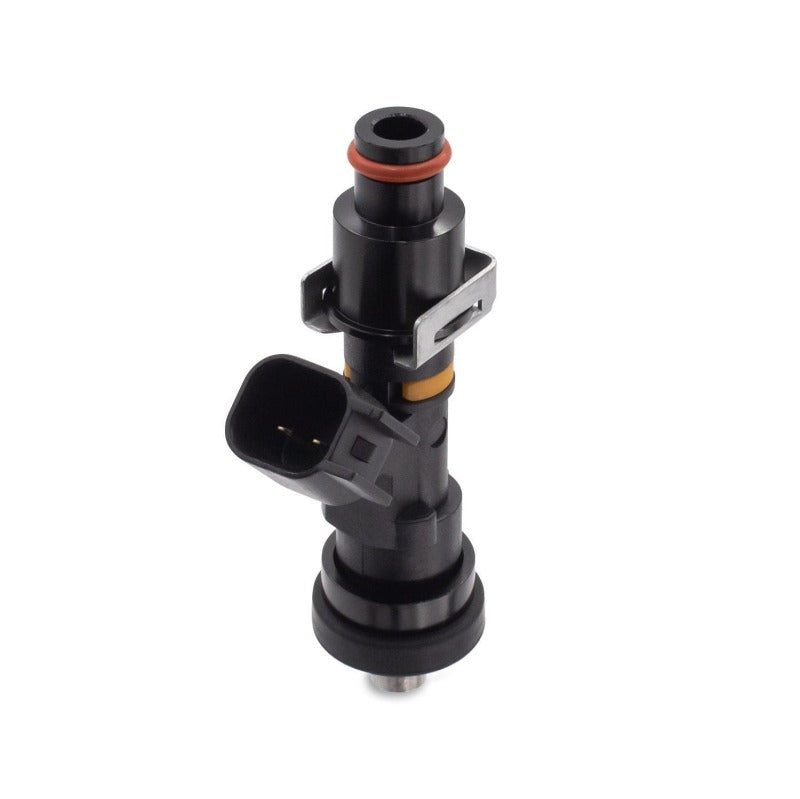

BLOX Racing BXEF-06514.11-550-4 550cc EV14 Fuel Injectors Honda B/D/H/F-

Vehicle Fitment

• Honda B-Series, D-Series, H-Series, and select F-Series engines with EV14 injector ports and compatible fuel rail configurations (numerous Civic, CRX, Integra, Prelude, del Sol, and other older Honda models) - verify application specifics before installation

Features

• Set of four high-flow fuel injectors rated at 550cc/min for improved fuel delivery in performance street builds
• Eco-Fi Street design for smooth throttle response and reliable daily performance
• EV14 electrical pigtails for direct plug-and-play installation on compatible Honda fuel systems
• Includes 1/2" adapter tops to fit a wide range of intake and fuel rail setups
• Matched injector flow for consistent fueling across all four cylinders
• Viton O-rings included for secure sealing and fuel resistance
• Built to withstand up to ~88 psi maximum operating pressure in typical applications
• Durable construction suitable for naturally aspirated and mild forced induction street tuners

Specifications

• Flow rate: 550 cc/min (nominal) at ~43.5 psi base pressure
• Injector type: High-impedance EV14
• Bore size: 14 mm body, 11 mm adapter top
• Injector length: 48 mm body (typical street configuration)
• Operating voltage: ~13.8 V
• Operating frequency: ~100 Hz
• Pressure range: base 43.5 psi (3 bar) up to ~88 psi max

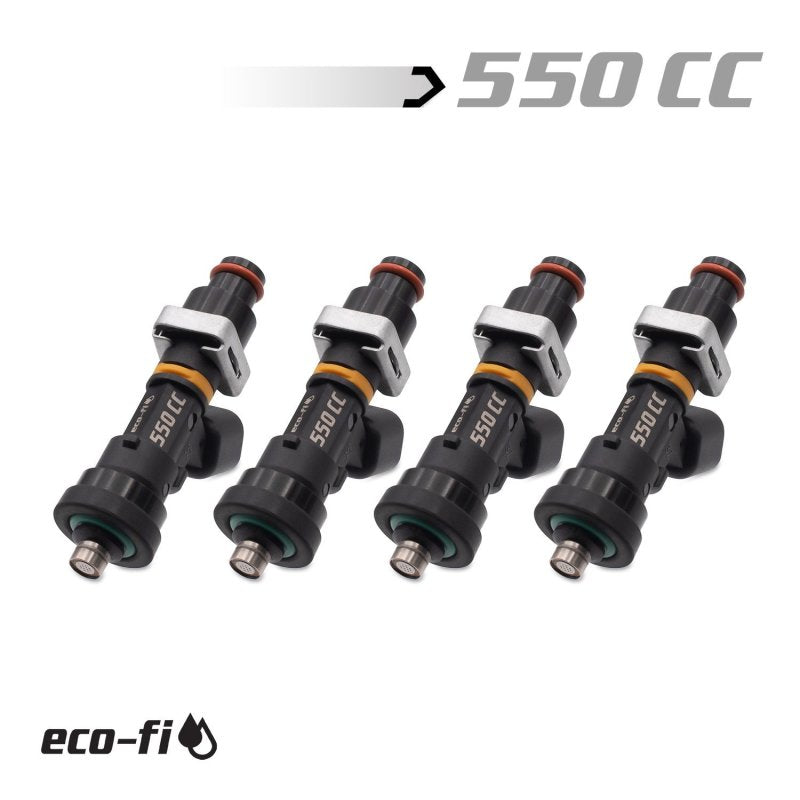

• Quantity: 4 injectors per set

Included Components

• 4x 550 cc/min EV14 fuel injectors
• 4x 1/2" injector adapter tops
• 4x Viton O-rings

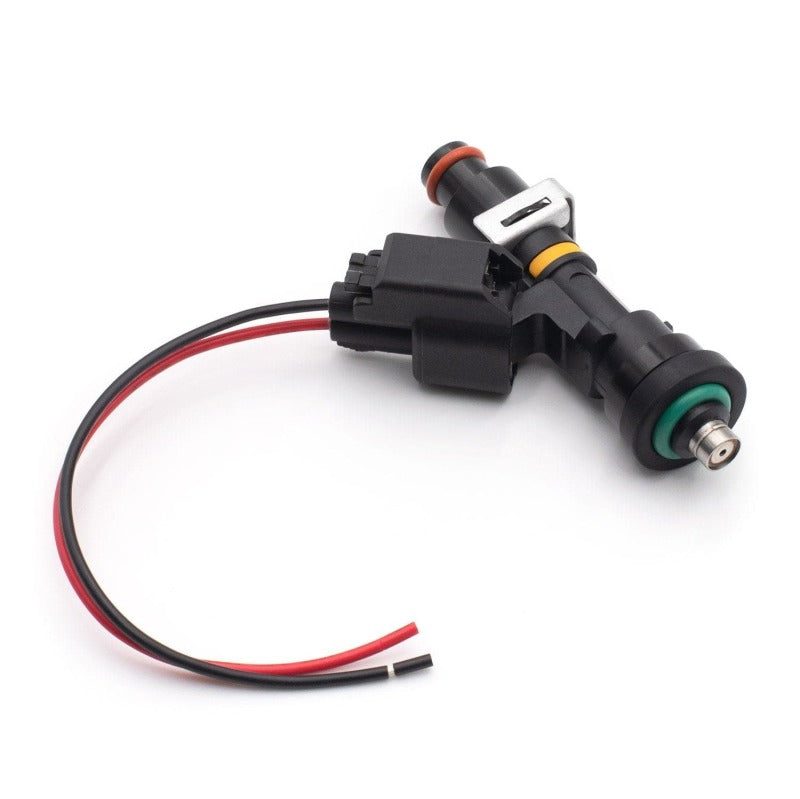

• 4x EV14 electrical pigtails

Product Description

The BLOX Racing BXEF-06514.11-550-4 550 cc Eco-Fi Street fuel injectors are engineered to upgrade fuel delivery on Honda engines equipped with EV14 injector ports, including popular B-Series, D-Series, H-Series, and select F-Series platforms. Designed for street performance and mild forced induction applications, this matched set of four injectors provides consistent flow and atomization for improved throttle response and power throughout the RPM range. The included 1/2" adapter tops and Viton O-rings help ensure compatibility with a wide array of intake and fuel rail systems while sealing securely under typical street fuel pressures.

These fuel injectors are ideal for engine swaps, street performance builds, and upgrades where factory injectors are no longer sufficient to support increased airflow and power demands. While not recommended for dedicated racing or high-boost applications without proper tuning and supporting modifications, the 550 cc/min rating offers a balance of performance and drivability for enthusiast Honda builds. Before installation, confirm that your fuel system, ECU, and tuning support the 550 cc injectors and that the injector body and adapter match your engine's fuel rail configuration. This product is not CARB-approved and may be restricted in emissions-controlled regions.
