BLOX BXEF-04914.14-1000-4 Eco-Fi 1000cc Street Injectors Honda K-Series Set of 4

Vehicle Fitment

• Honda K-Series engines -- all variants (K20A, K20A2, K20Z1, K20Z3, K24A, K24Z7, etc.)
• 2006-2009 Honda S2000 (AP2, F22C1 -- requires K-Series adapter)
• 2002-2006 Acura RSX Type-S (K20A2 / K20Z1)
• 2002-2011 Honda Civic Si (K20A3, K20Z3, K24Z7)
• 2002-2006 Honda CR-V (K24A1)
• 2003-2007 Honda Accord (K24A4 / K24A8)
• 2007-2013 Acura MDX, RDX, TSX -- verify engine code before ordering
• All K-Series engine swaps -- verify fitment before ordering

Fitment Notes

• K-Series engines only -- 14mm bore, 1/2 in. adapter included
• Street applications only -- NOT for racing
• NOT compatible with E85 or methanol
• For B/D/H-Series use BLOX BXEF-04914.11-1000-4 instead
• Professional tune required after installation
• Do not exceed 50 psi base pressure / 85 psi MAX
• Minimum idle pulse width: 2.2ms

Features

• 1000cc/min flow rate at 43.5 psi (3 bar)
• EV14 injector body -- flowed and matched set
• Shortie design -- 38mm injector length
• High impedance
• Viton O-rings
• 1/2 in. adapter top included
• EV14 pigtail connectors included
• Pre-assembled -- plug-and-play ready
• 15-month warranty

Specifications

• Part Number: BXEF-04914.14-1000-4
• Series: Eco-Fi Street
• Flow Rate: 1000cc/min
• Injector Body: EV14
• Injector Length: 38mm (Shortie)
• Bore: 14mm
• Impedance: High
• Test Pressure: 43.5 psi (3 bar)
• Test Voltage: 13.8V
• Test Frequency: 100 Hz
• Max Base Pressure: 50 psi
• Max Pressure: 85 psi
• O-Ring Material: Viton
• Connector: EV14
• Adapter: 1/2 in. (included)
• Quantity: Set of 4

Included Components

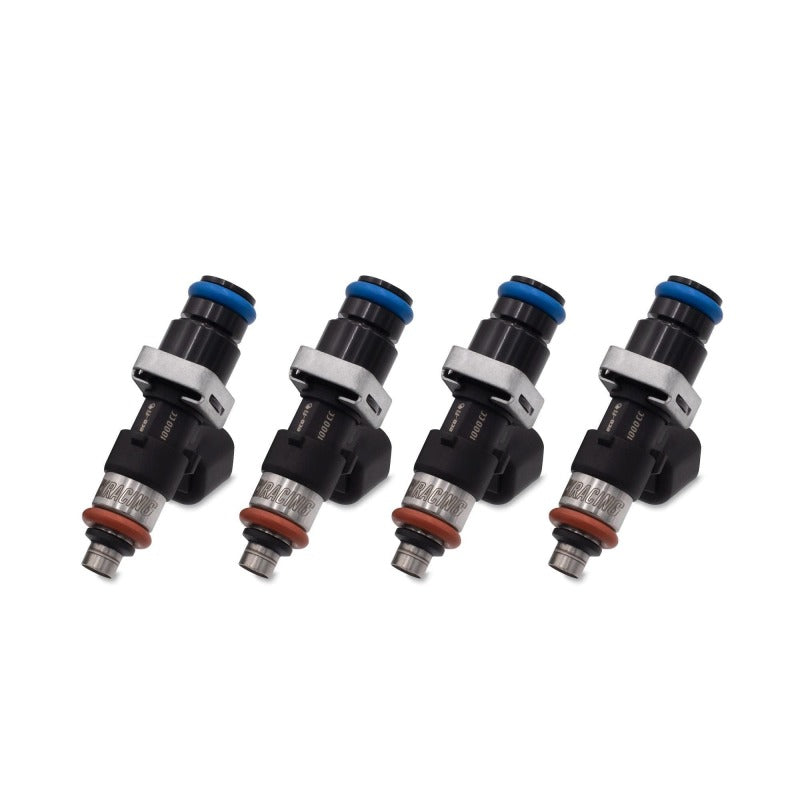

• 4x BLOX Eco-Fi 1000cc EV14 fuel injectors
• 4x Viton O-rings
• 4x EV14 pigtail connectors
• 1/2 in. adapter tops

Product Description

The BLOX BXEF-04914.14-1000-4 is an Eco-Fi Street fuel injector set of 4 at 1000cc/min for Honda K-Series engines and 2006-2009 Honda S2000 applications. Each EV14 injector is individually flowed and matched for balanced fuel delivery, making this set an economical upgrade for naturally aspirated and mildly boosted street tunes. The 38mm Shortie design with 1/2 in. adapter fits directly into K-Series fuel rails with no modifications.

High impedance, Viton O-rings, and EV14 pigtails are included -- plug-and-play ready. Street use only -- not compatible with E85, methanol, or racing applications. A professional tune is required after installation. Backed by BLOX Racing's 15-month warranty.
