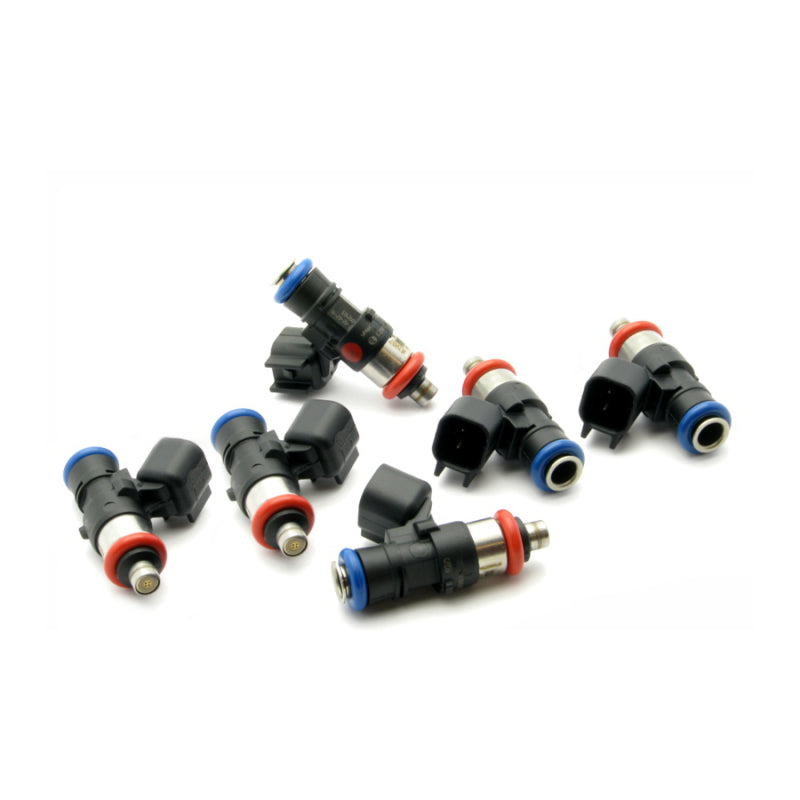

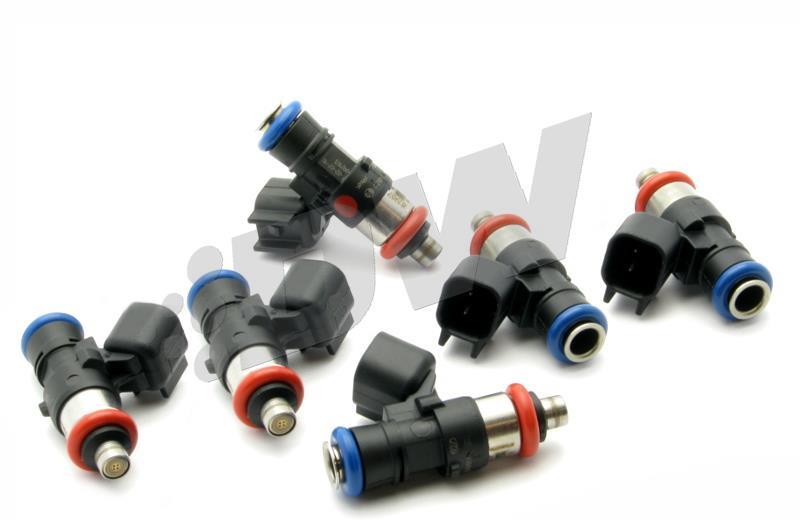

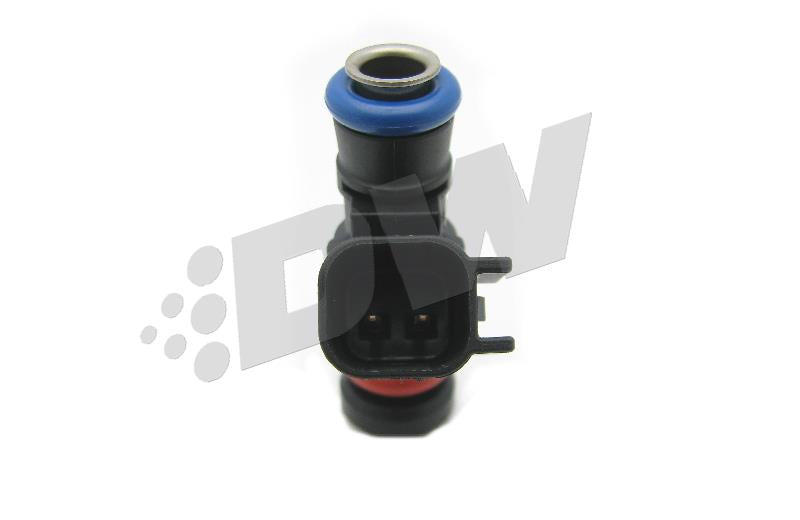

DeatschWerks 16U-00-0065-6 700cc Fuel Injectors for 2011-2015 Ford Mustang V6

Vehicle Fitment

• 2011-2015 Ford Mustang V6 (3.7L)
• 2012-2017 Jeep Wrangler V6 (3.6L)

Features

• Matched set of 6 Bosch EV14 EV-2 injectors, 700 cc/min (~65 lb/hr)
• High-impedance design - direct-fit OEM harness compatibility
• Drop-in fitment with USCAR connector
• Dynamic multi-point flow balancing to <2% variance
• Corrosion-resistant stainless steel internal construction
• Optimized spray pattern for stable idle and throttle response
• SAE J1832 characterized with full flow data included
• Backed by a 3-year DeatschWerks factory warranty

Specifications

• Flow Rate: 700 cc/min (~65 lb/hr) @ 43.5 psi
• Impedance: High (~12.5 Ω)
• Connector Type: USCAR
• Injector Count: 6
• Body: Compact EV14, stainless steel internals, 14 mm O-rings
• Compliance: Non-CARB; not legal for street use in CA & CARB states

Included Components

• 6x DeatschWerks Bosch EV14 700 cc/min Injectors (16U-00-0065-6)
• 6x OEM-style O-rings
• 6x Plug-and-play wiring clips
• 1x Flow data sheet (matched set)
• 1x Installation & tuning guide

Product Description

The DeatschWerks 16U-00-0065-6 injector kit is a performance-focused, drop-in solution for mildly modified 3.6L-3.7L V6 applications, including the 2011-2015 Ford Mustang V6 and 2012-2017 Jeep Wrangler V6. Engineered with robust Bosch EV14 high-impedance coils and top-flight stainless steel internals, this set supports gasoline and E85 tuning, offering substantial fueling capacity for demanding builds.

Each injector is dynamically flow-matched to within 2% variance and tested to SAE J1832 standards, ensuring precise metering across varied operating conditions and pulse widths. The OEM-compatible USCAR connectors facilitate seamless installation without rail or harness modifications.

Fitment confirmed through 2017; 2018+ models unconfirmed. Supports both RWD and 4WD drivetrain layouts. With fueling capacity beyond 700 cc/min @ 3 bar, this kit enables tuning for 400-500+ WHP depending on supporting mods. Not CARB legal - intended for race or off-road use. Ships nationwide except CA/CARB states. Includes flow data and 3-year factory warranty. Installation requires ECU tuning via platforms like SCT, DiabloSport, or HP Tuners.
