Radium 20-0589 Split-Flow Flex Fuel Sensor Adapter 10AN ORB Universal

Vehicle Fitment

• Universal, for use with compatible flex fuel ethanol content sensors

Fitment Notes

• Compatible with GM flex fuel sensor P/N 13577429, using included mount
• Compatible with GM flex fuel sensor P/N 13577379, which has 3 usable mounting holes
• 10AN female ports require adapters to match hose in the vehicle, sold separately
• Can be used on feed or return fuel lines
• Not CARB legal, not for sale in California or CARB states
• Installation instructions available at radiumauto.com

Features

• Split-Flow Flex Fuel Sensor Adapter
• Implements an ethanol content sensor into a high flow fuel line
• Dual passage design, no loss in fuel flow
• Splits fuel flow into an auxiliary passage parallel to the sensor
• Sensor reads incoming ethanol content at high and low engine demands
• Less complicated and considerably more compact than hose/y-adapter setups
• Provides a dedicated mounting solution for popular GM flex fuel sensors
• Sensor position can be rotated at any time, even mounted and plumbed
• Allows proper spacing with surrounding components
• Two M6x1.0mm socket head bolts included for mounting

Specifications

• Port size: 10AN ORB, female
• Design: Dual passage, split-flow
• Color: Black
• Mounting hardware: 2x M6x1.0mm socket head bolts
• Weight: 0.7 lbs
• Package dimensions: 4.4in W x 4.2in H x 4.8in L
• Sensor included: No
• Emissions: Not CARB legal

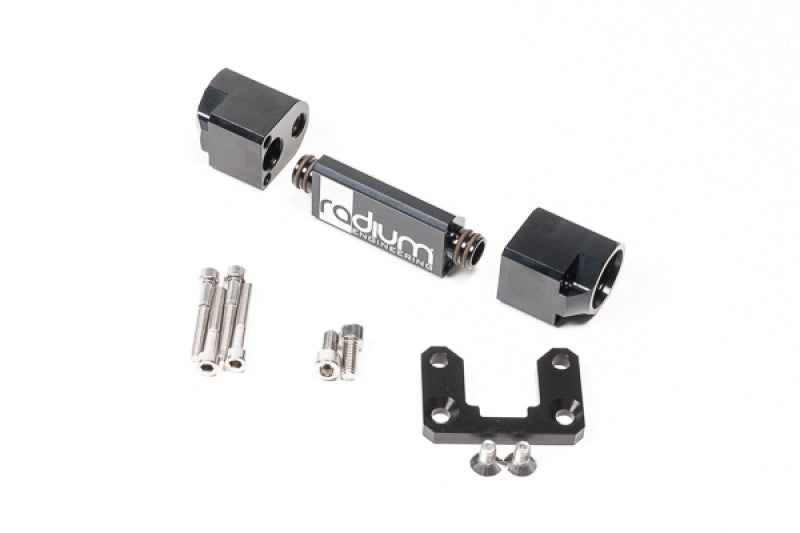

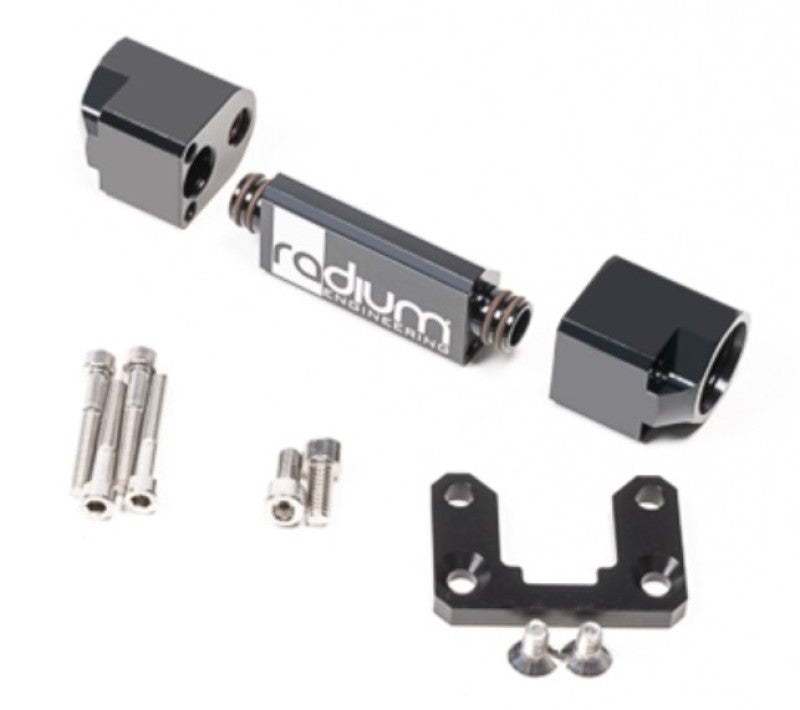

Included Components

• 1x Split-Flow Flex Fuel Sensor Adapter
• 2x M6x1.0mm Socket Head Mounting Bolts

Product Description

Radium Engineering Split-Flow Flex Fuel Sensor Adapter. Allows implementing an ethanol content sensor into a high flow fuel line, using a dual passage design so fuel can flow through with no loss in flow. The adapter splits fuel flow into an auxiliary passage parallel to the sensor, so it reads incoming ethanol content accurately at both high and low engine demands.

Traditionally, this additional flow path required hose and y-adapter fittings -- the Radium Split-Flow adapter is less complicated, considerably more compact, and provides a dedicated mounting solution for the popular GM 13577429 flex fuel sensor (compatible with the included mount) or the GM 13577379 sensor (which has 3 usable mounting holes). The sensor position can be rotated at any time, even when mounted and plumbed, for proper spacing with surrounding components.

Universal fitment, can be used on feed or return fuel lines. 10AN female ports will require adapters to match the hose in the vehicle, sold separately. Not CARB legal, not for sale in California or CARB states. Installation instructions available at radiumauto.com.
