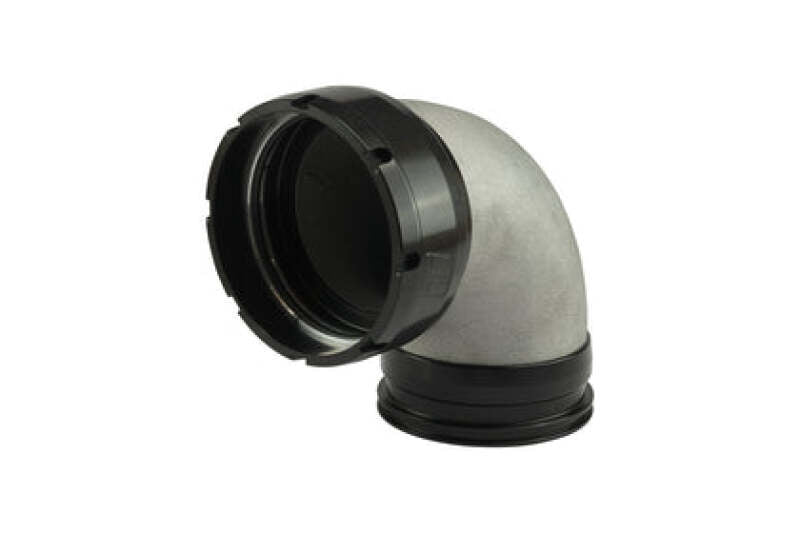

Turbosmart TS-199-3037 LockSleeve Compressor Outlet 3.00" 90 Vibrant/Plazmaclamp

Vehicle Fitment

• Universal - compatible with Turbosmart B-Frame and C-Frame turbochargers (TS-1 and TS-2 series) requiring a 3.00" compressor outlet connection to a 90° elbow using Vibrant HD clamps or Plazmaman Plazmaclamps

Fitment Notes

• Suits both B-Frame and C-Frame Turbosmart turbocharger compressor covers
• Dual clamp compatibility - works with both Vibrant HD clamps and Plazmaman Plazmaclamps at 3.00" in a single part, unlike the 2.50" range which uses separate SKUs per clamp type
• 90° elbow outlet orientation - for straight outlet at 3.00" (Vibrant/Plazmaclamp), use TS-199-3041; for 90° elbow with hose barb end at 3.00", use TS-199-3040
• Clamps are not included and must be sourced separately
• Race and competition use only; not CARB legal and not for use on pollution-controlled road vehicles

Features

• Weld-free installation - precision-machined screw-together ferrule creates a mechanically interlocked O-ring seal between the compressor cover and outlet sleeve, eliminating TIG welding
• Internal O-ring provides airtight integrity at boost pressure, while the outer collar delivers mechanical retention equivalent to a welded joint
• 90° elbow outlet routes charged air cleanly in space-constrained engine bays; the larger 3.00" diameter suits higher-output applications requiring greater compressor outlet flow
• Compatible with both Vibrant HD and Plazmaman Plazmaclamp systems, reducing the number of SKUs needed for builds using either clamp style
• Serviceable at the track - installs and removes with basic hand tools in minutes, with no permanent modification to the turbocharger
• Black anodized finish for corrosion resistance and a clean engine bay appearance

Specifications

• Part Number: TS-199-3037
• Product Name: LockSleeve Turbo Adapter - Compressor Outlet 3.00" to 90° Elbow
• Outlet Diameter: 3.00" (76.2mm)
• Outlet Orientation: 90° elbow
• Clamp Compatibility: Vibrant HD clamps and Plazmaman Plazmaclamps (3.00")
• Compatible Turbochargers: Turbosmart B-Frame and C-Frame (TS-1 / TS-2 series)
• Installation Method: Weld-free, screw-together ferrule with internal O-ring seal
• Finish: Black anodized

Included Components

• 1x Turbosmart LockSleeve Compressor Outlet Adapter - 3.00" to 90° Elbow, Vibrant/Plazmaclamp (TS-199-3037)
• 1x Internal O-ring seal (pre-installed)

Product Description

The Turbosmart LockSleeve (TS-199-3037) is the 3.00" 90° elbow compressor outlet adapter for Turbosmart B-Frame and C-Frame turbochargers (TS-1 / TS-2 series), and unlike the 2.50" variants in this range, it is dual-compatible with both Vibrant HD clamps and Plazmaman Plazmaclamps in a single part. The larger 3.00" outlet diameter suits higher-output builds where greater compressor outlet flow area is required. The weld-free LockSleeve ferrule system uses a precision-machined two-piece screw-together collar to mechanically compress an internal O-ring between the compressor cover and the outlet sleeve, creating a high-pressure seal that performs like a welded connection without any permanent modification to the turbocharger.

The 90° elbow orientation allows an immediate directional change at the compressor outlet, useful in tight engine bays where straight routing is not possible before the first intercooler pipe bend. For straight outlet configurations at 3.00", use TS-199-3041; for a 90° elbow with a hose barb end at 3.00", use TS-199-3040. All LockSleeve variants install and remove with basic hand tools in minutes, making them equally suited for initial builds and trackside servicing.
