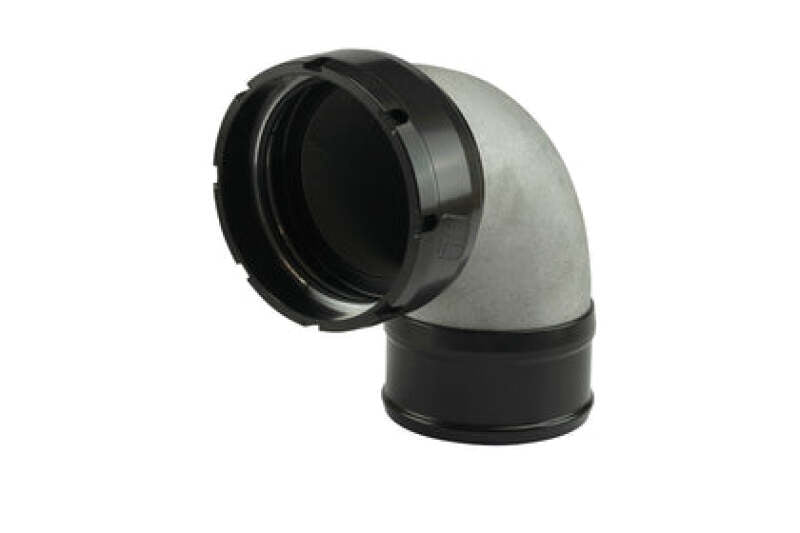

Turbosmart TS-199-3040 LockSleeve Compressor Outlet 3.00" 90 Deg Hose Barb

Vehicle Fitment

• Universal - compatible with Turbosmart B-Frame and C-Frame turbochargers (TS-1 and TS-2 series) requiring a 3.00" compressor outlet connection to a 90° elbow with a hose barb end for silicone or rubber hose attachment

Fitment Notes

• Suits both B-Frame and C-Frame Turbosmart turbocharger compressor covers
• Hose barb outlet end - for builds using silicone or rubber intercooler pipe secured with standard hose clamps; no Vibrant HD or Plazmaclamp coupler required
• For 90° elbow with Vibrant HD or Plazmaclamp fitment at 3.00", use TS-199-3037; for straight hose barb outlet at 3.00", see the corresponding straight hose barb variant; for 90° hose barb at 2.50", use TS-199-3023
• Race and competition use only; not CARB legal and not for use on pollution-controlled road vehicles

Features

• Weld-free installation - precision-machined screw-together ferrule creates a mechanically interlocked O-ring seal between the compressor cover and outlet sleeve, eliminating TIG welding
• Internal O-ring provides airtight integrity at boost pressure, while the outer collar delivers mechanical retention equivalent to a welded joint
• 90° elbow with hose barb outlet allows direct attachment of silicone or rubber intercooler pipe using standard hose clamps - no profile coupler or specialty clamp required
• 3.00" diameter suits higher-output builds requiring greater compressor outlet flow area compared to the 2.50" hose barb variant (TS-199-3023)
• Serviceable at the track - installs and removes with basic hand tools in minutes, with no permanent modification to the turbocharger
• Black anodized finish for corrosion resistance and a clean engine bay appearance

Specifications

• Part Number: TS-199-3040
• Product Name: LockSleeve Turbo Adapter - Compressor Outlet 3.00" to 90° Elbow, Hose Barb
• Outlet Diameter: 3.00" (76.2mm)
• Outlet Orientation: 90° elbow
• Outlet End Type: Hose barb (for silicone/rubber hose with standard hose clamps)
• Compatible Turbochargers: Turbosmart B-Frame and C-Frame (TS-1 / TS-2 series)
• Installation Method: Weld-free, screw-together ferrule with internal O-ring seal
• Finish: Black anodized

Included Components

• 1x Turbosmart LockSleeve Compressor Outlet Adapter - 3.00" to 90° Elbow, Hose Barb (TS-199-3040)
• 1x Internal O-ring seal (pre-installed)

Product Description

The Turbosmart LockSleeve (TS-199-3040) is the 3.00" 90° elbow hose barb compressor outlet adapter for Turbosmart B-Frame and C-Frame turbochargers (TS-1 / TS-2 series). It is the larger-diameter counterpart to the TS-199-3023 (2.50" hose barb, 90° elbow) and serves builds where a 3.00" outlet and conventional silicone or rubber hose routing - secured with standard hose clamps - is preferred over profile clamp systems. The weld-free LockSleeve ferrule mechanically compresses an internal O-ring between the compressor cover and the outlet sleeve as the two collar halves are torqued together, producing a high-pressure, airtight seal equivalent to a welded connection with no permanent modification to the turbocharger.

The 90° elbow orientation routes charged air immediately away from the compressor outlet, useful in tight engine bays where straight piping is not viable before the first bend. For 3.00" configurations requiring Vibrant HD or Plazmaclamp fitment at 90°, use TS-199-3037. All LockSleeve variants install and remove with basic hand tools in minutes, making them well-suited for both initial turbo system builds and trackside maintenance.
