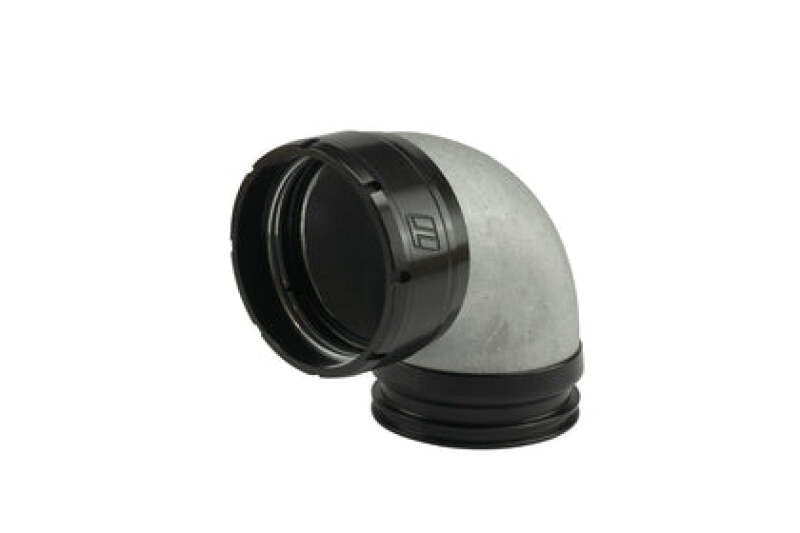

Turbosmart TS-199-3019 LockSleeve Weld-Free Compressor Outlet 2.50" 90 Deg Vibrant

Vehicle Fitment

• Universal - compatible with Turbosmart B-Frame turbochargers (TS-1 and TS-2 series) requiring a 2.50" compressor outlet connection to a 90° elbow using Vibrant HD clamps

Fitment Notes

• Designed specifically for Turbosmart B-Frame compressor covers (TS-1 / TS-2 turbocharger series); compatibility with other turbocharger brands should be verified before purchase
• 90° elbow outlet orientation - for straight outlet configurations, use TS-199-3029 (2.50" Straight, Vibrant); for Plazmaman clamp fitment, use TS-199-3030
• Mates with Vibrant HD clamps at 2.50" - Vibrant clamps are not included and must be sourced separately
• Race and competition use only; not CARB legal and not for use on pollution-controlled road vehicles

Features

• Weld-free installation - precision-machined screw-together ferrule creates a mechanically interlocked O-ring seal between the compressor cover and outlet sleeve, eliminating the need for TIG welding
• Internal O-ring sealing provides airtight integrity at boost pressure, while the outer collar delivers mechanical retention equivalent to a welded joint
• 90° elbow outlet routes charged air cleanly in space-constrained engine bays without custom piping fabrication
• Serviceable at the track - installs and removes with basic hand tools in minutes, with no permanent modification to the turbocharger
• Black anodized finish for corrosion resistance and clean appearance in the engine bay

Specifications

• Part Number: TS-199-3019
• Product Name: LockSleeve Turbo Adapter - Compressor Outlet 2.50" to 90° Elbow
• Outlet Diameter: 2.50" (63.5mm)
• Outlet Orientation: 90° elbow
• Clamp Compatibility: Vibrant HD clamps (2.50")
• Compatible Turbochargers: Turbosmart B-Frame (TS-1 / TS-2 series)
• Installation Method: Weld-free, screw-together ferrule with internal O-ring seal
• Finish: Black anodized

Included Components

• 1x Turbosmart LockSleeve Compressor Outlet Adapter - 2.50" to 90° Elbow, Vibrant (TS-199-3019)
• 1x Internal O-ring seal (pre-installed)

Product Description

The Turbosmart LockSleeve (TS-199-3019) is a weld-free compressor outlet ferrule that adapts Turbosmart B-Frame turbochargers (TS-1 and TS-2 series) to a 90° elbow outlet for use with Vibrant HD clamps at 2.50". Rather than TIG-welding a ferrule to the compressor cover, the LockSleeve uses a precision-machined two-piece screw-together collar that mechanically compresses an internal O-ring to form a high-pressure, airtight seal between the compressor cover and the outlet sleeve - delivering structural integrity equivalent to a welded connection with none of the permanent modification.

The 90° elbow orientation makes this LockSleeve particularly useful for tight engine bay layouts where routing charged air directly from the turbo outlet to an intercooler or intake pipe requires an immediate directional change. Installation requires only basic hand tools and takes minutes, making it equally suited for pre-race setup and trackside servicing. For straight outlet or alternative clamp style requirements, Turbosmart offers additional LockSleeve variants across the TS-199 range.
