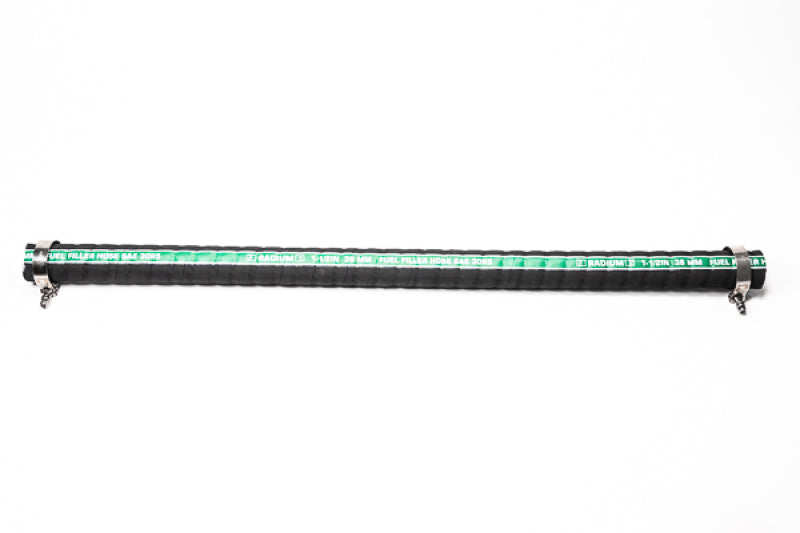

Radium 20-0597 Fuel Fill Neck Hose Kit 1.5" ID (Universal)

Application

• Universal - fuel fill neck hose for body-mounted filler installations

Features

• Flexible convoluted fuel fill neck hose for easy routing
• 1.5" (38 mm) internal diameter ideal for many fuel system applications
• Hose length 36" (0.9 m) and can be trimmed to fit specific setups
• Helical wires embedded in the hose resist kinking under tight bends
• Includes two 304 stainless-steel T-bolt clamps for a secure seal
• Compatible with gasoline, diesel, ethanol/E85 and other fuels
• Neoprene-coated fabric cover for abrasion and weather resistance
• Designed to provide reliable long-term service in performance fuel systems

Specifications

• Internal Diameter: 1.5" (38 mm)
• Length: 36" (914 mm) - trim to fit
• Wall Thickness: 0.176" (4.47 mm)
• Working Pressure: 20 psi maximum
• Burst Pressure: 90 psi minimum
• Bend Radius: 5" minimum for optimal routing
• Material: Nitrile rubber with synthetic fabric reinforcement
• Temperature Range: -40 °F to 212 °F

Included Components

• 1x 1.5" internal diameter fuel fill neck hose
• 2x 304 stainless-steel T-bolt clamps

Product Description

The Radium Engineering 20-0597 Fuel Fill Neck Hose Kit is a universal aftermarket component designed to connect a body-mounted fuel filler to a vehicle's fuel tank or fuel cell. Featuring a 1.5" internal diameter and a flexible convoluted construction with embedded helical wires, the hose resists kinking and allows tight bends without restricting fuel flow. Two heavy-duty T-bolt clamps are included to ensure a leak-resistant connection during fueling operations, making this kit suitable for custom fuel systems in performance and motorsport applications.

Measuring 36" in length and easily trimmed to fit specific installations, the 20-0597 hose supports a wide range of fuel types - including gasoline, diesel, and ethanol blends - thanks to its reinforced nitrile construction and neoprene-coated cover. Designed for versatility and durability, it's a practical choice when fabricating custom fuel filler neck routes or upgrading older hose styles for improved performance and longevity.
