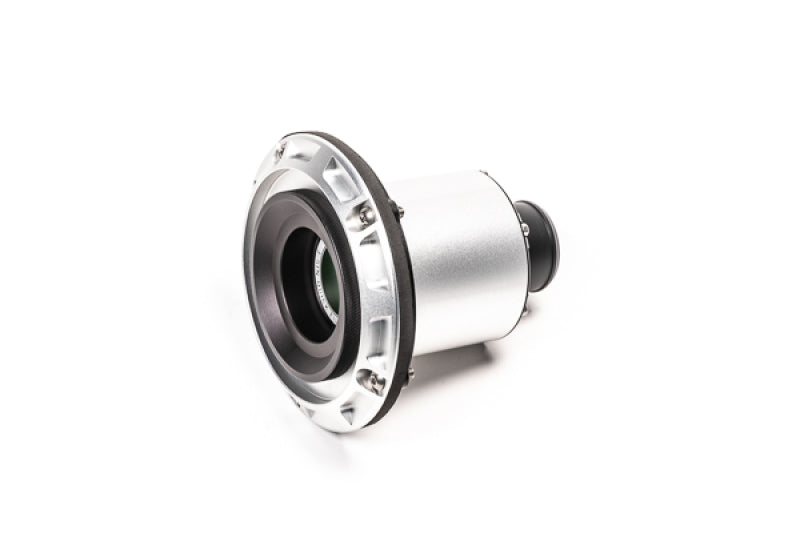

Radium 20-1004-V Vented Remote Dry Break Fuel Filler Universal

Vehicle Fitment

• Universal fit - remote mount fuel filler solution for custom fuel systems
• Designed for remote mounting to body panels, fenders, or cages
• Requires fabrication (77 mm hole recommended) for installation

Features

• Remote mount, vented female dry break fuel filler receptacle
• 1.5" female dry break connection compatible with Radium dry break systems
• Vented cap design with rollover protection
• Aluminum housing and nut ring for lightweight, durable performance
• Interchangeable outlet adapters (sold separately) for different hose types
• Stainless steel hardware included for corrosion resistance
• Compatible with a wide range of fuel types including gasoline, E85, methanol, diesel, and AV gas
• Seals designed to prevent leaks during refueling with dry break coupling
• Ideal for motorsport, custom, and fabricated fuel systems

Specifications

• Part Number: 20-1004-V
• Type: Remote mount vented dry break fuel filler
• Nominal Connector Size: 1.5" ID dry break
• Filler Hose ID Requirement: 1.5"
• Flange Outer Diameter: 4.75" (≈121 mm)
• Bolt Circle Diameter: 4.25" (≈108 mm)
• Construction: Anodized aluminum housing and ring
• Seal Type: O-ring sealed receptacle
• Hardware: Stainless steel bolts

Included Components

• 1x Remote mount housing with male dry break receptacle
• 1x Ozone/flame resistant gasket
• 1x Anodized aluminum nut ring
• Stainless steel mounting hardware

Product Description

The Radium 20-1004-V Vented Remote Dry Break Fuel Filler is a universal remote mounting solution for custom fuel system applications where a clean, safe, and efficient fuel inlet is required. Designed to accept a 1.5" female dry break coupling, it allows for quick, secure refueling without spills and minimizes vapor exposure. Its vented design includes rollover protection, which helps equalize pressure and prevent vacuum lock during fueling.

Built with a durable anodized aluminum housing and stainless steel hardware, the remote mounting filler is ideal for motorsports vehicles, fabricated chassis, and race cars where access to the fuel system may be relocated away from the original fuel tank or cell. It requires a fabricated mounting hole (approximately 77 mm) and pairing with appropriate dry break components and hose to complete the system. Compatible with gasoline, alcohol blends like E85, diesel, and more, this part brings convenience and reliability to high-performance fuel system builds.
