COMP Cams 5449 Cam Phaser Limiter Kit for 2005+ Ford 4.6 / 5.4L 3-Valve Modular

Vehicle Fitment

• 2005+ Ford 4.6L Modular 3-Valve V8
• 2005+ Ford 5.4L Modular 3-Valve V8

Features

• Limits cam phasing to 20° crank (i.e. reduces VVT range)
• Helps prevent piston-to-valve clearance issues with performance cams
• Includes two phaser limiter plates
• Comes with spring compressor tool to safely compress VVT spring
• Includes a disassembly / installation tool for the phaser components
• Allows use of more aggressive camshaft grinds on VVT engines
• Maintains some benefit of variable valve timing while improving safety
• Durable parts built to last in a high-performance valvetrain setup

Specifications

• Part Number: 5449
• Limiter Range: 20° (crank) for Ford Modular 3-Valve

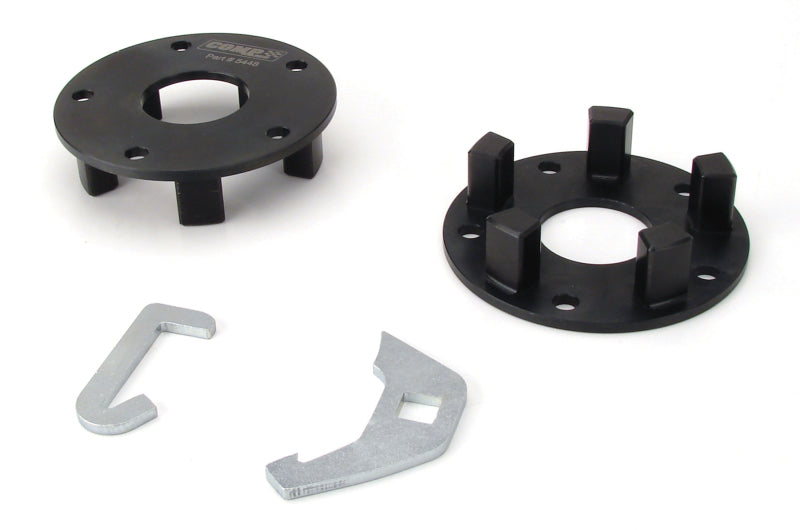

• Includes: 2x limiter plates, 1x spring lock / compressor tool, 1x disassembly tool
• Manufacturer Warranty: 12 months

Included Components

• 2x cam phaser limiter plates
• 1x spring compressor tool
• 1x phaser disassembly / installation tool

Product Description

The COMP Cams 5449 is a cam phaser limiter kit made for 2005+ Ford Modular 3-Valve V8 engines (4.6L and 5.4L). This kit restricts the variable valve timing (VVT) range to 20° of crank movement, reducing the risk of piston-to-valve contact when running aggressive performance camshafts.

Included in the kit are two limiter plates, a spring compressor to safely compress the VVT spring during installation, and a special disassembly tool for the phaser. By limiting phasing, the 5449 enables the use of tighter lobe separation or more aggressive cam profiles that wouldn't be safe with full VVT range, all while retaining some benefits of variable timing. This makes it ideal for performance builds on Modular 3-Valve engines where more radical cams are used.
