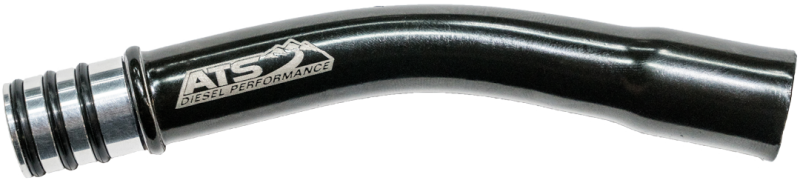

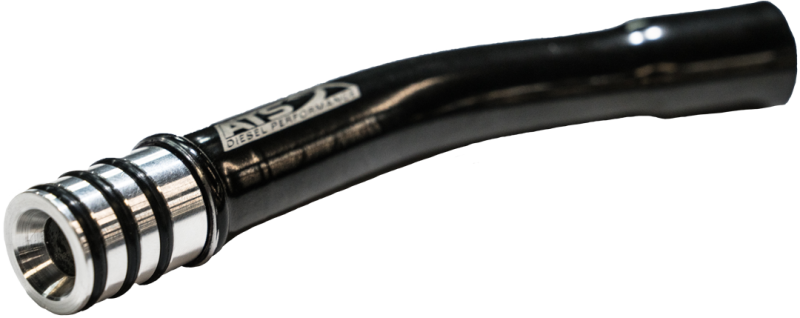

ATS 314-220-3104 E4OD/4R100/5R110 Dipstick Tube for 1989-2010 Ford Powerstroke

Vehicle Fitment

• 1989-2010 Ford F-250/F-350 Super Duty (7.3L, 6.0L, 6.4L Power Stroke)

Fitment Notes

• Applies only to trucks equipped with E4OD, 4R100, or 5R110 automatic transmissions

Features

• Two-piece billet base design
• Oil-resistant O-ring seals for leak-free operation
• Eliminates factory Teflon-coated press-in seal failure point
• Lower tube section removable without pulling the transmission
• Direct-fit, bolt-on installation
• Corrosion-resistant, weather-tight construction
• Meets or exceeds OE fit and performance specifications
• Reduces repair time from hours to roughly 20 minutes

Specifications

• Transmission Compatibility: E4OD, 4R100, 5R110
• Construction: Billet Base, 2-Piece Design
• Seal Type: Oil-Resistant O-Rings
• Replaces Ford P/N: XC3Z-7A160-AA

Included Components

• 1x Transmission Dipstick/Oil Fill Tube (2-Piece)
• 1x O-Ring Seal Set

Product Description

The ATS 314-220-3104 Dipstick/Oil Fill Tube solves a common leak point on early Ford heavy-duty automatic transmissions, where the factory press-in tube relies on a thin Teflon coating that often fails to seal over time. ATS replaces this design with a sturdy two-piece billet tube sealed by oil-resistant O-rings for a dependable, leak-free fit.

Its biggest advantage is serviceability: the lower section can be removed directly from the transmission case without pulling the transmission itself, turning what's normally a multi-hour repair into roughly a 20-minute job. It's a practical fix for 1989-2010 Ford Power Stroke owners running the E4OD, 4R100, or 5R110 transmission who are dealing with a leaking or worn factory fill tube.
