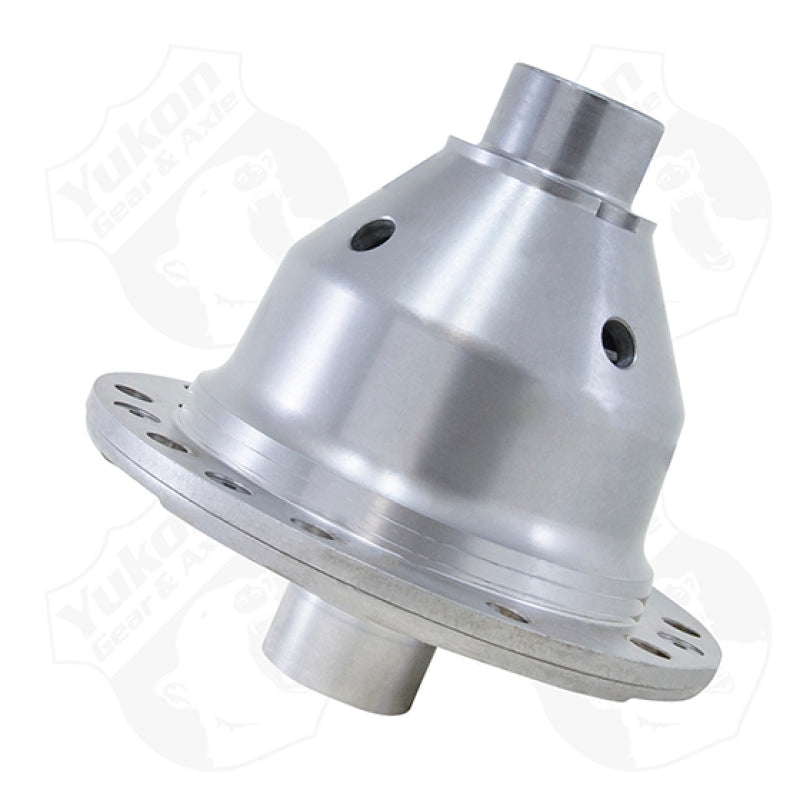

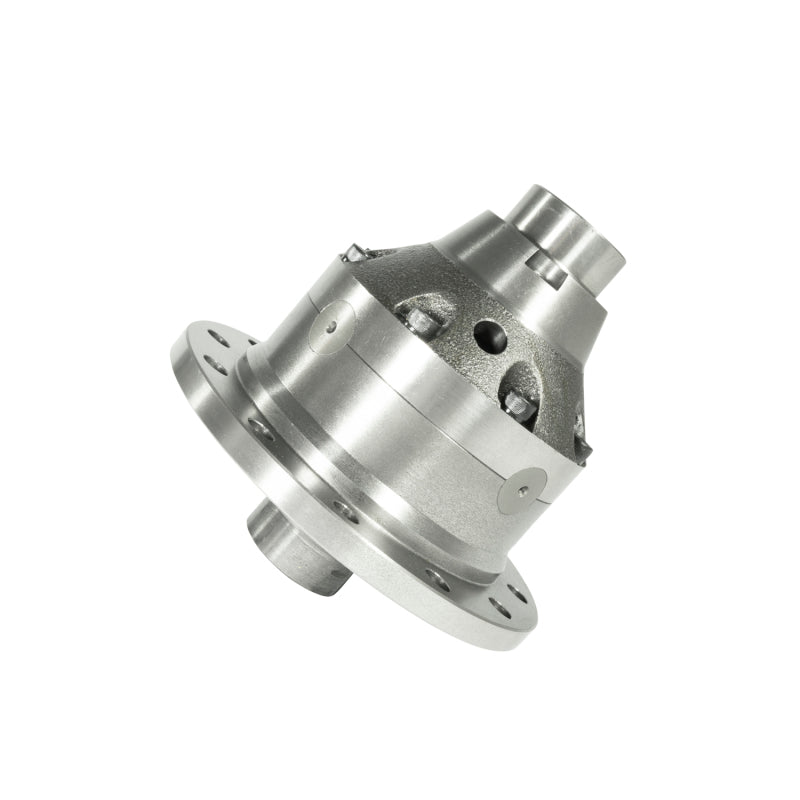

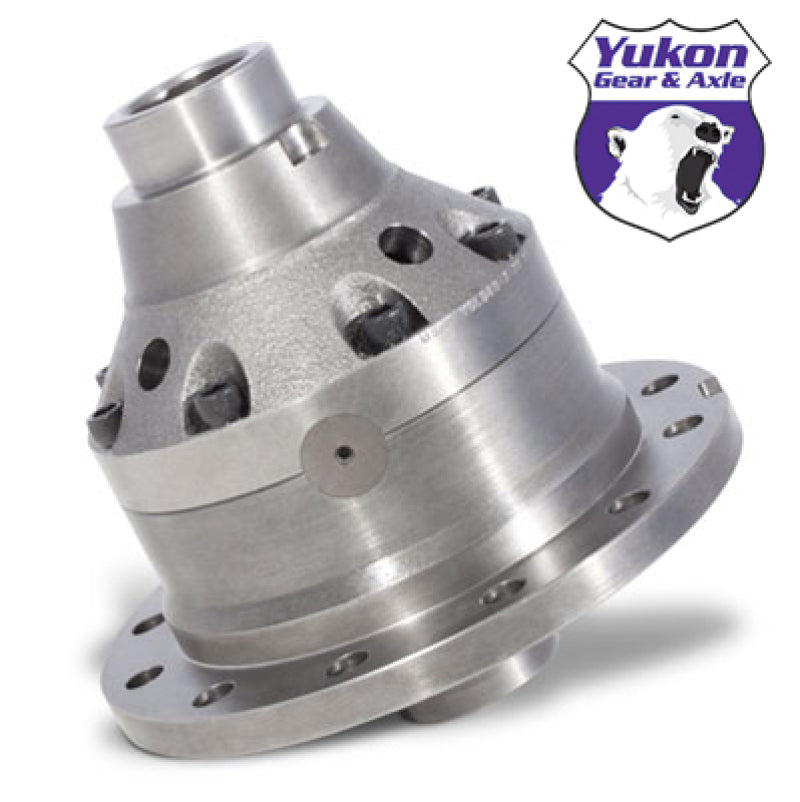

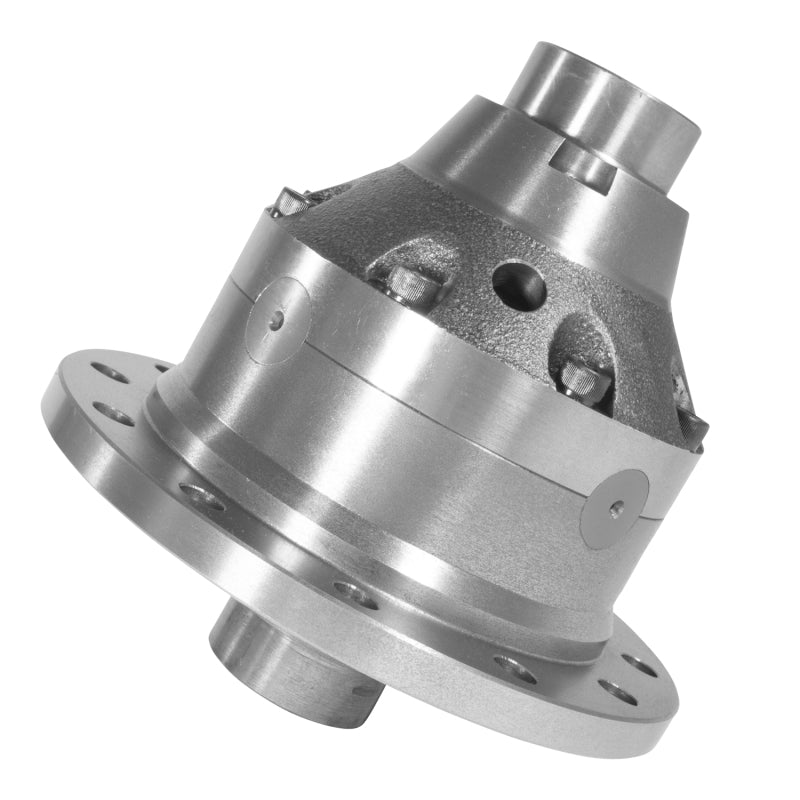

Yukon YGLD60-4-35 Grizzly Locker for Dana 60 35-Spline Axles 4.56 &Up Gear Ratio

Regular price: $689.95
Regular price
Sale price: $689.95

Shipping calculated at checkout.

In Stock: 0

Orders by 1pm PST ship same business day

Free Shipping w/3-4 Day Delivery

Authorized Dealer

Fitment Guarantee

30-Day Hassle Free Returns

Product Specification:

SKU:YUKYGLD60-4-35

MPN: YGLD60-4-35

UPC: 883584280057

Weight: 32.8 lb

Type: Differentials

Vehicle Fitment

Dana 60 rear differentials (narrow case) with 35-spline axle shafts and 4.56 & up gear ratios - front and full-float rear applications
1999-2015 Ford F-250 Super Duty (Dana 60 rear, 35-spline, 4.56 & up, RWD/4WD)
1999-2015 Ford F-350 Super Duty (Dana 60 rear, 35-spline, 4.56 & up, RWD/4WD)
1978-1997 Ford F-250/F-350 (Dana 60 rear, 35-spline, 4.56 & up, RWD/4WD)
1967-1991 Chevrolet/GMC C20/C2500 & K20/K2500 (Dana 60 rear, 35-spline, 4.56 & up, RWD/4WD)
1967-1991 Chevrolet/GMC C30/C3500 & K30/K3500 (Dana 60 rear, 35-spline, 4.56 & up, RWD/4WD)
Early Dodge Ram 2500/3500 (Dana 60 rear, 35-spline early models, 4.56 & up, RWD/4WD) - Note: verify spline count; 2nd Gen Dodge switched to 30-spline, except 2000-2002 which were 32-spline
Custom off-road builds and swaps using Dana 60 rear axle with 35-spline, narrow-case, 4.56 & up carrier configuration

Fitment Notes

Fits Dana 60 narrow case differentials with 4.56 & up gear ratio carrier only - does not fit 4.10 & down carrier applications (see YGLD60-3-35 for 4.10 & down)
Dana 60 has a 4.10/4.56 carrier break - the 4.56 & up carrier requires standard (non-thick) ring and pinion gears; incompatible with thick gears used for 4.30 and lower ratios
This is a narrow case locker - wide housing applications require two DS 42563 spacers (sold separately)
Not compatible with c-clip axle configurations
ABS compatible
Fits front and full-float rear Dana 60 applications; always verify your specific axle spline count and carrier configuration before ordering

Features

Patented clutch tooth design with larger-radius base - up to 350% stronger than standard back-cut locking designs
Forged case construction for maximum housing rigidity and impact resistance
8620 chromium alloy steel internals for superior strength under shock-loading and high-torque conditions
Automatic, speed-sensing engagement - locks when wheel speed difference is detected side-to-side
Disengages during cornering to allow normal wheel speed differentiation for safe on-road and trail driving
Delivers 100% torque to both wheels simultaneously during straight-line driving
Assembled and quality-tested in the USA
ABS compatible design

Specifications

Differential: Dana Spicer 60 (narrow case)
Axle Spline Count: 35-spline
Gear Ratio Requirement: 4.56 & up (high carrier)
Case Material: Forged chromium alloy steel
Internals: 8620 chromium alloy steel
Position: Front or full-float rear
Ring Gear Diameter: 9.75"
Shipping Weight: 31.0 lbs

Included Components

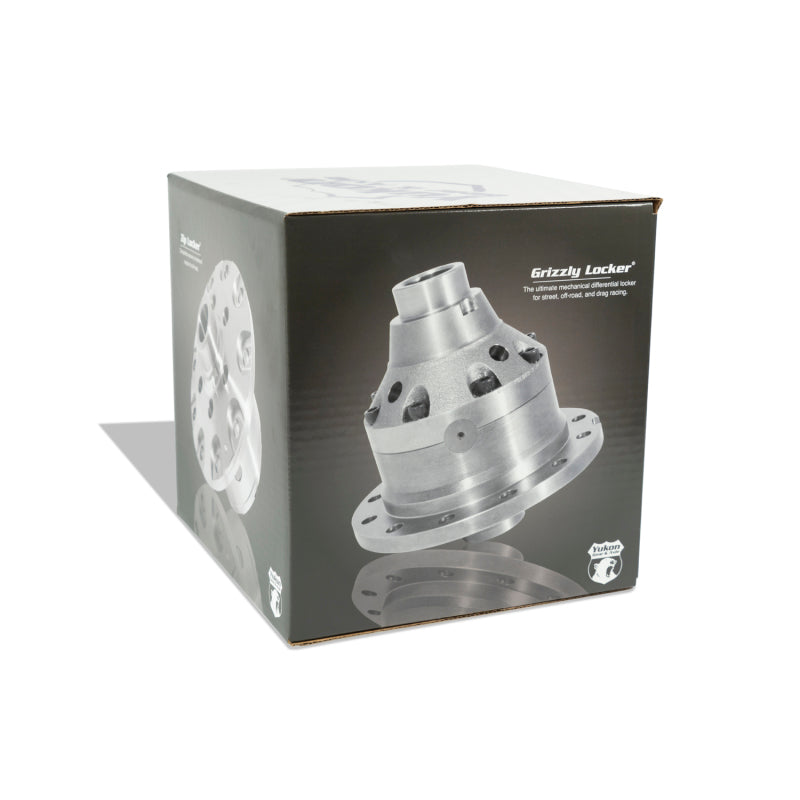

1x Yukon Grizzly Locker carrier assembly (complete unit)

Product Description

The Yukon YGLD60-4-35 Grizzly Locker is a full carrier replacement mechanical locking differential engineered for the Dana 60 narrow case axle with 35-spline axle shafts and 4.56 & up gear ratios. A true positive-locking unit, the Grizzly delivers 100% of available torque to both wheels simultaneously - making it the go-to choice for rock crawlers, serious trail rigs, drag racing applications, and heavy-duty trucks that demand maximum traction. Its patented clutch tooth design features a larger radius at the base of each tooth, offering up to 350% greater shear strength than conventional back-cut designs, with large teeth that resist breakage under catastrophic shock loads.

The Grizzly Locker operates automatically, locking when a side-to-side wheel speed difference is detected and disengaging during cornering to allow safe, normal handling on the street or trail. The forged case and 8620 alloy internals are purpose-built for the Dana 60's demanding torque capacity, covering Ford Super Duty, legacy GM 3/4 and 1-ton trucks, and purpose-built custom off-road rigs. Note that this locker is specific to the 4.56 & up (high) carrier - verify your gear ratio and carrier type before ordering. Wide housing applications require two DS 42563 spacers (sold separately). Assembled and quality-tested in the USA.
