Eaton 14234-1 ELocker Differential for 2018-2025 Jeep Wrangler JL / Gladiator JT

Vehicle Fitment

• 2018-2025 Jeep Wrangler JL / JL Unlimited (front/rear Dana-44 / M210 & M220, non-Rubicon, 32-spline)
• 2020-2025 Jeep Gladiator JT (front/rear Dana-44 / M210 & M220, non-Rubicon, 32-spline)
• 2021-2025 Ford Bronco (front or rear Dana-44 / M210 & M220, non-factory electronic locker, 32-spline)

Fitment Notes

• Does **not** replace factory OEM electronic locker
• Does **not** fit vehicles with full-float Dana-44 HD rear axle or Rubicon / Mojave models that have 35-spline axles
• For Bronco and Rangers: models with welded OEM ring gear/open differential with factory 3.73 gear will require replacement ring & pinion matching Eaton's M210/M220 spec for proper installation
• Stator must be removed for clearance prior to installing ring gear; reinstalled in order: (1) Ring Gear, (2) Stator Assembly, (3) Bearing

Features

• Selectable electronic locking differential ("ELocker") gives driver ability to lock or unlock on demand
• Net-forged internal gears for enhanced strength and durability under off-road loads
• Compatible with **all ring & pinion gear ratios** in Dana-44 / M210 / M220 axles
• 32 spline axle shafts for improved strength over lower spline count options
• High-quality steel carrier and robust design to handle trail, towing, and work use
• Front or rear axle position fitment in applicable vehicle models (where axle is Dana-44, non-Rubicon / non-factory locker versions)
• Installation harness & locker switch included for simplified wiring and activation
• Designed to maintain OEM geometry and fitment for lift / tire upgrades without needing major modifications

Specifications

• Position: Front or Rear (depends on where Dana-44 / M210 or M220 axle is located)
• Axle type: Dana-44 M210 / M220
• Spline count: 32 splines
• Ring & Pinion Gear Ratio: All ratios supported
• Weight: ~27-30 lbs depending on packaging and axle location
• Cover bolts: standard Dana-44 bolt count (8 on carrier cover plus OEM axle shaft bolts etc.)
• Compatible with OE and aftermarket gear oil types (API GL-5, etc.)
• Fitment confirmed through 2025

Included Components

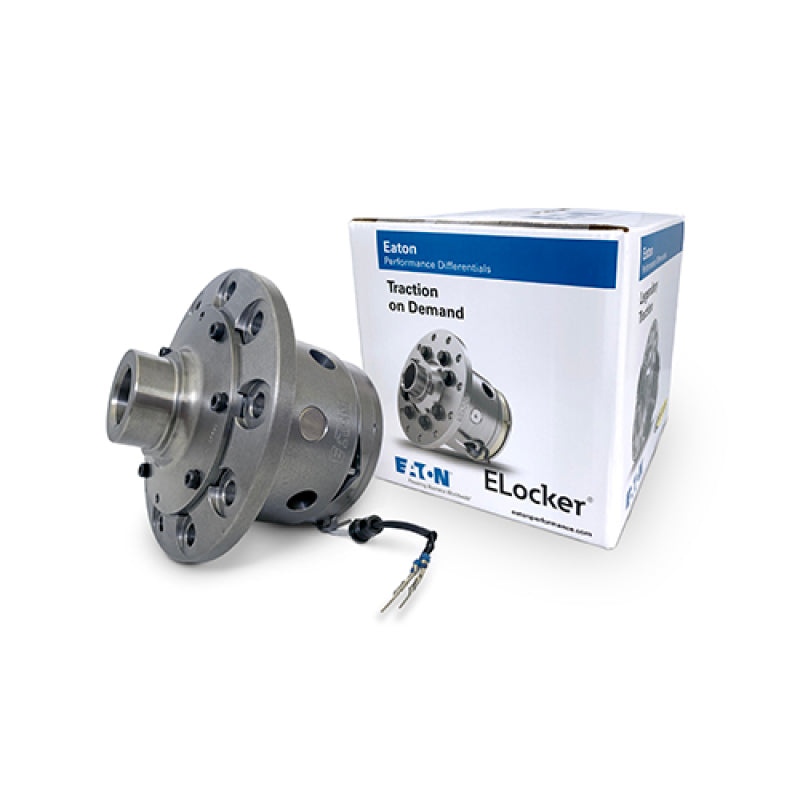

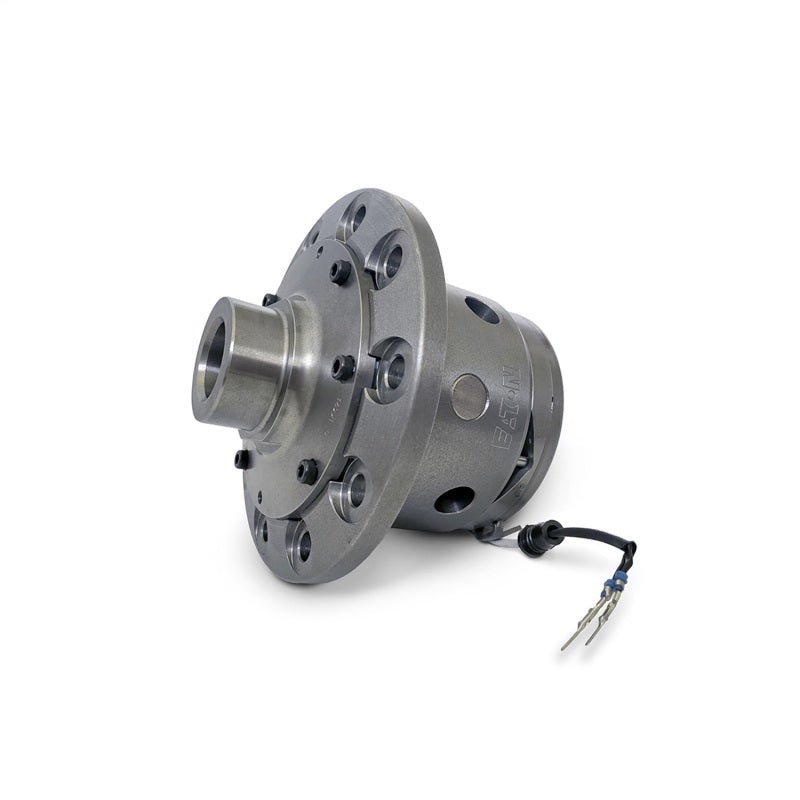

• 1x Eaton 14234-1 ELocker Carrier Assembly
• 1x Wiring Harness & Control Switch

Product Description

The Eaton 14234-1 ELocker Differential is a selectable, electronic locking differential designed for Dana-44 M210 / M220 axle assemblies in non-factory locker models. It delivers full locking traction on command while remaining an open differential during normal driving. This product is intended for enthusiasts or off-road users who need powerful, reliable traction upgrades on 2018-2025 Jeep Wrangler JL, 2020-2025 Gladiator JT, and 2021-2025 Ford Bronco models, but are not equipped with the OEM electronic locker (or in Rubicon / Mojave 35-spline axles).

Installation requires careful removal and reinstallation of the stator to seat the ring gear properly (order: ring gear first, stator assembly, then bearing). For vehicles with factory welded open differentials or incompatible ring gears (e.g. Bronco/Ranger with 3.73 welded gear), ring & pinion replacement according to Eaton's M210/M220 spec may be necessary. Fitment is confirmed through model year 2025.
