Yukon ZIKF9.75-S-34 Standard Open Spider Gear Kit for Ford 9.75" 34-Spline Axle

Regular price: $144.95
Regular price: ~~$177.00~~
Sale price: $144.95

Shipping calculated at checkout.

In Stock: 8

Orders by 1pm PST ship same business day

Free Shipping w/3-4 Day Delivery

Authorized Dealer

Fitment Guarantee

30-Day Hassle Free Returns

Product Specification:

SKU:YUKZIKF9.75-S-34

MPN: ZIKF9.75-S-34

UPC: 883584390190

Weight: 9.0 lb

Inventory: 8

Type: Differential Spider Gears

Vehicle Fitment

1997-2014 Ford F-150 (with 9.75" rear differential, 34-spline axles)
1997-2014 Ford E-150 (with 9.75" rear differential, 34-spline axles)
2000-2005 Ford Excursion (with 9.75" rear differential, 34-spline axles)
1997-2014 Ford Expedition (with 9.75" rear differential, 34-spline axles)

Fitment Notes

Ford 9.75" open differential with 34-spline axles ONLY
Verify differential ring gear size and axle spline count before ordering
For open (standard) differentials ONLY -- not for limited-slip or locking diffs
USA Standard Gear -- Yukon's value-line brand
Yukon premium equivalent: YPKF9.75-S-34
For positraction/limited-slip internals: Yukon YPKF9.75-P-34

Features

USA Standard Gear (by Yukon) standard open spider gear kit
Higher quality materials than OEM
Better manufacturing techniques than factory for longer service life
Complete kit -- all internals for a full spider gear replacement

Specifications

Part Number: ZIKF9.75-S-34
Brand: USA Standard Gear (by Yukon Gear & Axle)
Type: Standard open spider gear kit
Differential: Ford 9.75"
Axle Spline Count: 34
Differential Type: Open (standard)
UPC: 883584390190
Package Weight: 9 lbs
Package Dimensions: 12" x 12" x 3"

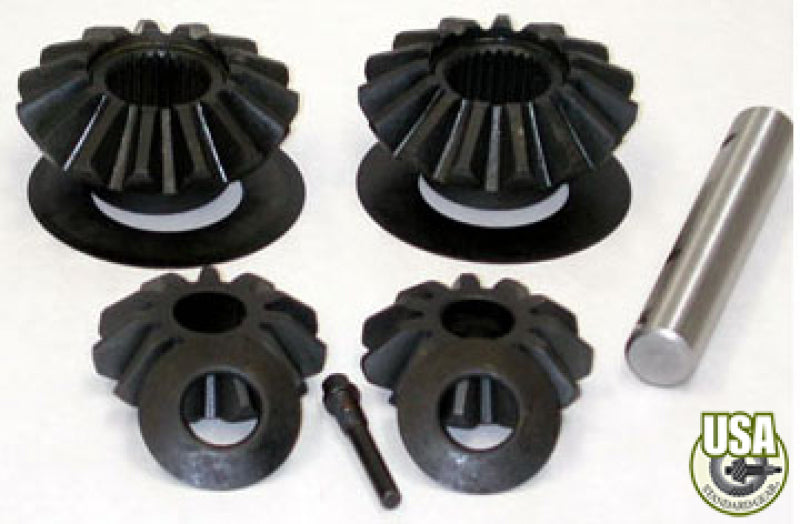

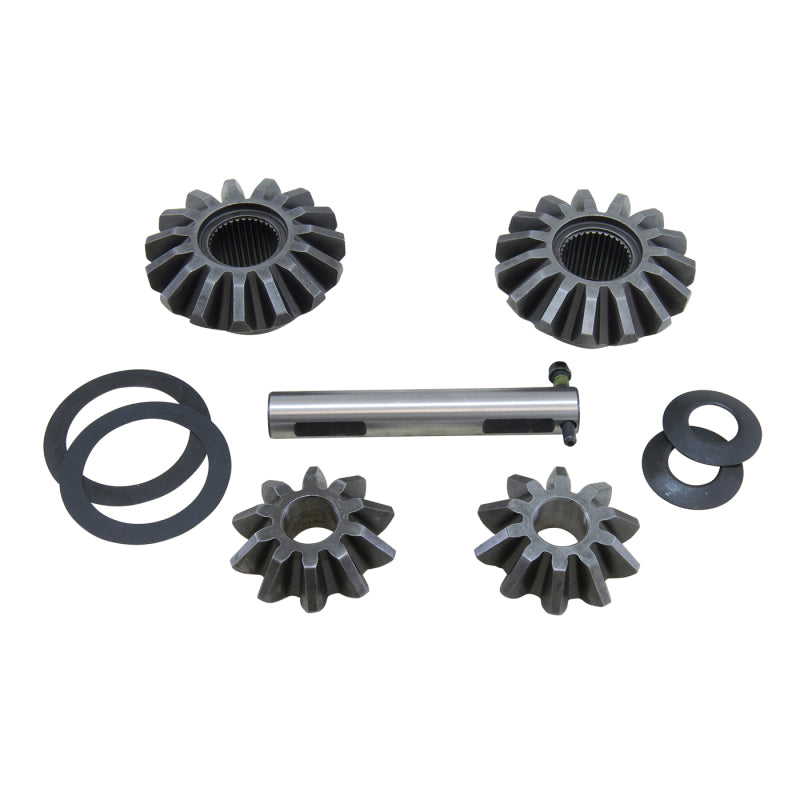

Included Components

2x Side gears (34-spline)
2x Pinion gears
1x Cross pin shaft
1x Cross pin bolt
Spider gear thrust washers

Product Description

The Yukon ZIKF9.75-S-34 is a USA Standard Gear standard open spider gear kit for Ford 9.75" differentials with 34-spline axles, commonly found in the 1997-2014 Ford F-150, E-150, Expedition, and Excursion. This complete kit replaces all internal spider gear components in an open (standard) differential with parts manufactured from higher quality materials and better techniques than the factory originals, ensuring a longer-lasting spider gear set. Spider gears are the internal differential gears that allow the two rear wheels to rotate at different speeds during turns.

The kit includes two side gears, two pinion gears, a cross pin shaft, cross pin bolt, and spider gear thrust washers -- everything needed for a complete and proper spider gear replacement. USA Standard Gear is Yukon Gear & Axle's value-line brand, offering OE-quality or better components at a competitive price point. The Yukon premium equivalent is YPKF9.75-S-34. For limited-slip/positraction internal upgrades, see Yukon YPKF9.75-P-34. Always verify your differential ring gear size and axle spline count before ordering -- not all Ford 9.75" differentials use 34-spline axles.
