Revolution Gear & Axle REV-JL-220/210-488DC 4.88 Ratio Gear Pkg for 18-25 Jeep

Vehicle Fitment

• 2018-2025 Jeep Wrangler JL & Jeep Gladiator JT (all trims, 4WD) - front Dana 44 220 mm & rear Dana 44 210 mm axle housings

Features

• 4.88:1 gear ratio engineered for maximum low-end torque and performance with large-tire or lifted builds
• Complete front and rear ring & pinion gear sets built specifically for the 220 mm/210 mm Dana 44 axle configuration
• 2-Cut (face-hobbing) gear manufacturing ("DC" suffix) for high precision, quiet operation and heavy-duty use
• Includes master install bearing kits and full hardware for both front & rear axles - full rebuild kit included
• Constructed from premium 8620 alloy steel and heat-treated for durability under off-road and high-stress conditions
• Precision-lapped gear surfaces for smooth engagement, reduced gear-whine and long service life
• Optimized for off-road rigs, large-tire setups, heavy loads, overlanding or performance builds where factory gearing is inadequate
• Backed by a 2-year limited manufacturer warranty covering defects and durability

Specifications

• Gear ratio: 4.88:1
• Front axle housing: 220 mm Dana 44 - pinion spline count: ~28-spline (verify vehicle)
• Rear axle housing: 210 mm Dana 44 - pinion spline count: ~28-spline (verify vehicle)
• Material: 8620 heat-treated alloy steel
• Gear cut type: 2-Cut (face-hobbing) - high precision heavy-duty gear set
• Rotation: Standard front & rear orientation for the specified axle setup
• Application: Front & rear axles of Jeep Wrangler JL / Gladiator JT only - other axle configurations excluded unless verified

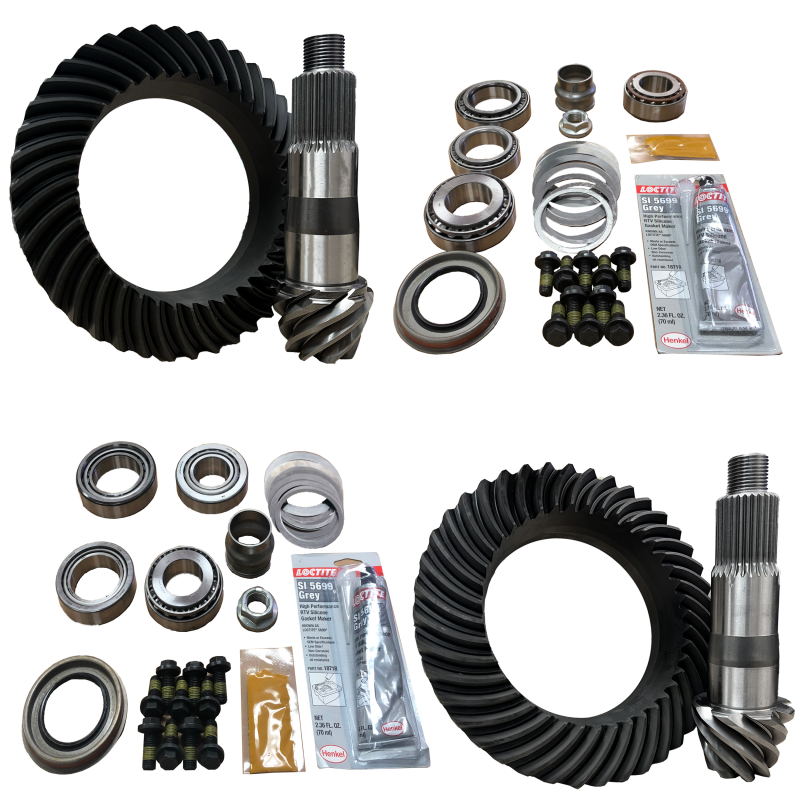

Included Components

• 1x Front ring gear
• 1x Front pinion gear assembly
• 1x Rear ring gear
• 1x Rear pinion gear assembly
• 1x Front master install bearing kit (bearings, seals, shims)
• 1x Rear master install bearing kit (bearings, seals, shims)
• 1x Installation instructions / manufacturer specification sheet

Product Description

The Revolution Gear & Axle REV-JL-220/210-488DC gear package is engineered for 2018-2025 Jeep Wrangler JL and Jeep Gladiator JT models equipped with the 220 mm front and 210 mm rear Dana 44 axles. With a 4.88:1 ratio and premium 2-Cut gear manufacturing, this kit provides serious low-end torque, improved driveline responsiveness, and is ideal for large-tire builds, lifted suspensions or heavy-use off-road/overlanding setups.

Constructed from premium 8620 alloy steel and heat-treated to rigorous standards, the ring & pinion gear sets are precision-lapped for smooth operation, long service life and minimal noise under heavy load. The full kit includes both front and rear gear sets plus master install bearing kits - making it a comprehensive upgrade rather than a simple ring & pinion swap.

Installation should be performed by a qualified technician using proper differential-setup tools - bearing preload, backlash and gear-pattern must be correctly set for optimal performance and longevity. Fitment is confirmed for the years and models listed above; coverage for other years, axle configurations or vehicle platforms is **unconfirmed at time of listing**.
