Haltech HT-010136 4 Bar Motorsport MAP Sensor for Universal Applications

Vehicle Fitment

• Universal (for any engine / ECU needing a 4 bar MAP input)

Fitment Notes

• Ensure your ECU, boost controller, or gauge accepts 0-4 bar MAP signal range
• Includes Deutsch DTM-3 connector; compatible mating plug is HT-031001
• Not vehicle-specific - check your wiring and MAP scaling before install

Features

• High-accuracy 4 bar (≈ 43 psi) sensing capability
• Designed for motorsport / high boost environments
• Solid construction for durability and long life
• Low drift and stable output across temperature range
• Fast response time to dynamic pressure changes
• Compact footprint for flexible mounting
• Includes Deutsch DTM-3 connector for secure wiring
• Widely compatible with many ECUs, boost controllers, and gauge systems

Specifications

• Pressure range: up to 4 bar (0 to ~4.0 bar absolute) ≈ 43 psi
• Connector: Deutsch DTM-3 (male plug)
• Mating connector: HT-031001 (Deutsch DTM-3 female)
• Mount type: inline / panel mount (sensor body)
• Material: aluminum or anodized sensor housing (vendor descriptions)
• Output: analog / voltage signal per Haltech scaling (refer ECU manual)
• Temperature stability: designed for automotive environments (specified in Haltech sensor docs)
• Position: can be mounted in intake manifold, boost reference port, or vacuum line as required

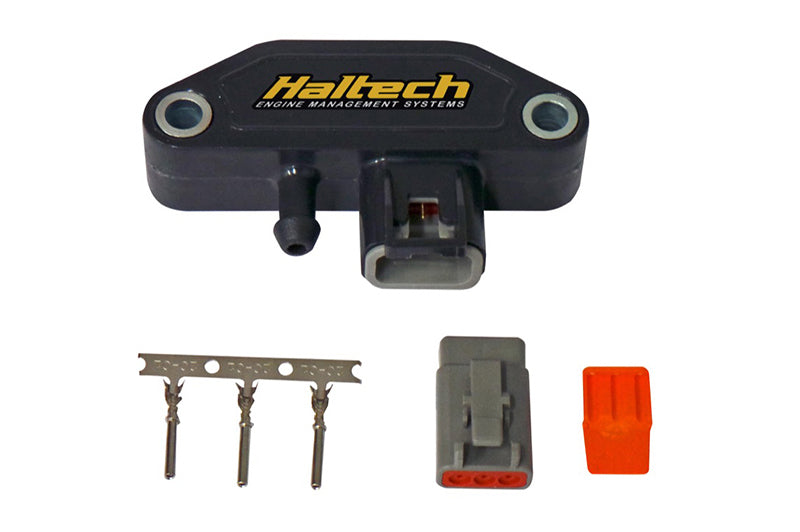

Included Components

• 1x HT-010136 4 Bar Motorsport MAP Sensor
• 1x Deutsch DTM-3 male connector (matched) (HT-031001 style)

Product Description

The Haltech HT-010136 4 Bar Motorsport MAP Sensor is a universal, high-performance manifold absolute pressure sensor suited for boosted or high-load engine applications. It is designed to produce accurate pressure readings up to 4 bar (≈ 43 psi), making it ideal for tuning, boost control, and performance monitoring in motorsport and aftermarket setups.

With its compact housing, robust build, and included Deutsch DTM-3 connector, the sensor can be integrated into most engine bays and control systems. When installing, ensure your ECU or control module supports the 4 bar MAP range and adjust sensor scaling accordingly. It is not vehicle-specific - compatibility depends on your system's input specifications.
