Haltech HT-010910 150 PSI Motorsport Pressure Sensor for Universal Applications

Vehicle Fitment

• Universal fitment for various motorsport applications

Fitment Notes

• Designed for use with Haltech ECUs; ensure compatibility with your specific ECU model
• Not vehicle-specific; intended for universal applications
• Must be remote mounted and connected via a flexible hose; do not mount directly into the fuel rail or engine block
• If required, use Pressure Sensor Extension Hose HT-039103 for installation

Features

• 150 PSI (10 bar) pressure measurement capability
• 1/8" NPT thread for easy installation
• Stainless steel diaphragm for durability and resistance to corrosion
• Compatible with fuel, oil, and wastegate pressure systems
• Provides real-time pressure data to Haltech ECUs for precise tuning
• Enhances engine performance and efficiency with accurate pressure monitoring
• Facilitates datalogging and engine protection strategies
• Includes matching Delphi plug and 3 pins for secure electrical connection

Specifications

• Pressure Range: 0-150 PSI (0-10 bar)
• Thread Size: 1/8" NPT
• Diaphragm Material: Stainless steel
• Connector Type: Matching Delphi plug with 3 pins
• Compatibility: Haltech ECUs (ensure specific model compatibility)
• Installation: Requires standard tools for mounting and electrical connections
• Mounting: Must be remote mounted; do not install directly into the fuel rail or engine block

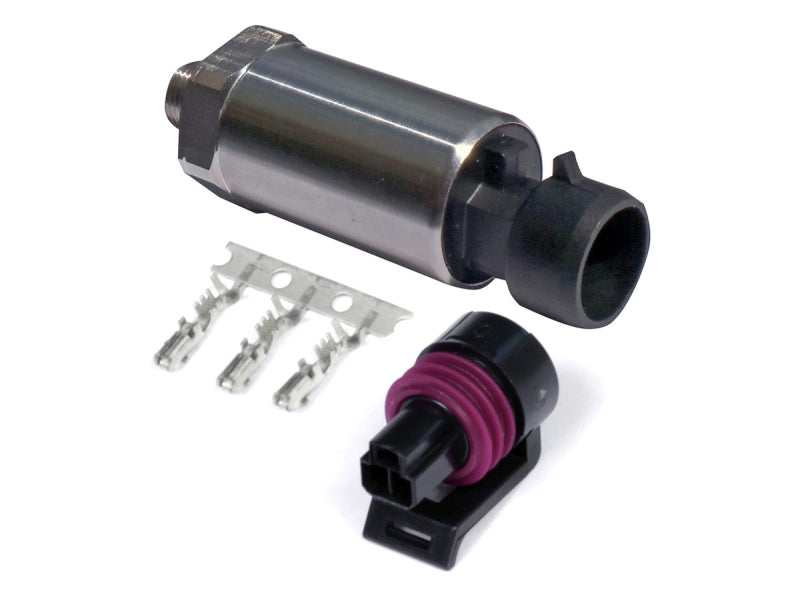

Included Components

• 1x Haltech HT-010910 150 PSI Motorsport Pressure Sensor
• 1x Matching Delphi plug
• 3x Pins
• 1x -4 AN adapter

Product Description

The Haltech HT-010910 150 PSI Motorsport Pressure Sensor is a high-performance component designed to monitor pressure levels in fuel, oil, and wastegate systems. With a pressure range of 0-150 PSI (0-10 bar), this sensor provides accurate and real-time data to Haltech ECUs, enabling precise tuning and optimization of engine performance.

Featuring a durable stainless steel diaphragm, the HT-010910 is built to withstand the harsh conditions of motorsport environments. The sensor is equipped with a 1/8" NPT thread for easy installation and includes a matching Delphi plug with 3 pins for secure electrical connections.

For proper installation, the HT-010910 must be remote mounted and connected via a flexible hose; it should not be mounted directly into the fuel rail or engine block. If necessary, use the Pressure Sensor Extension Hose HT-039103 to facilitate installation.

Enhance your engine's performance and efficiency with the Haltech HT-010910 150 PSI Motorsport Pressure Sensor - a reliable solution for precise pressure monitoring in various motorsport applications.
