FASS FC2001K Connect Digital Fuel System Monitoring Gauge ECU Kit

Vehicle Fitment

• Universal Diesel Applications (Cummins, Powerstroke, Duramax equipped with FASS systems)
• 1994-2026 Diesel pickup trucks with aftermarket FASS fuel systems
• Compatible with FASS lift pump systems only (model dependent installation)

Fitment Notes

• Universal monitoring system - does NOT replace or modify fuel system components
• Requires compatible FASS fuel system for full functionality
• Fitment depends on sensor installation, not vehicle model
• Works with app-based monitoring and optional in-cab gauge display
• Not a standalone fuel system or filter kit

Features

• Wireless ECU communication with smartphone app and digital gauge
• Monitors fuel pressure, filter life, voltage, and additional engine data
• Supports up to 5 sensor inputs for expanded monitoring capability
• Dual relay outputs for controlling accessories like heaters or lights
• Real-time fuel system diagnostics and performance tracking
• 0-100 PSI pressure sensor compatibility
• EGT and temperature sensor support (optional add-ons)
• Clean installation with no OBD-II integration required
• Designed for integration with FASS Titanium and similar systems

Specifications

• Part Number: FC2001K
• Product Type: Digital Monitoring System (Gauge + ECU Kit)
• Communication: Wireless ECU-to-gauge/app
• Sensor Capacity: Up to 5 inputs (expandable)
• Pressure Range: 0-100 PSI (sensor dependent)
• Fuel Type: Diesel / Gas compatible system monitoring
• Mount Type: Universal cab-mounted display system

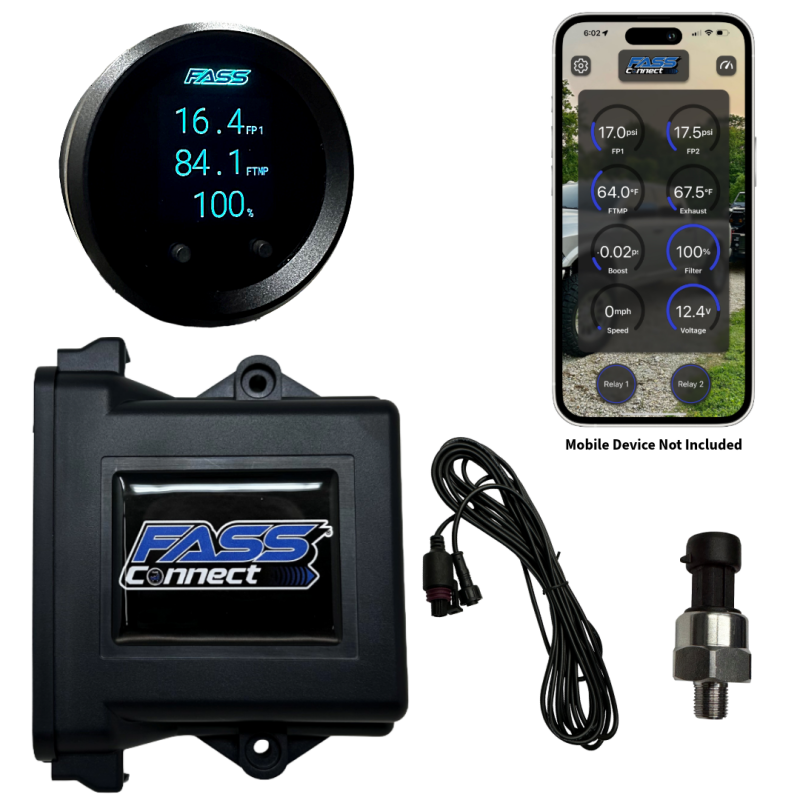

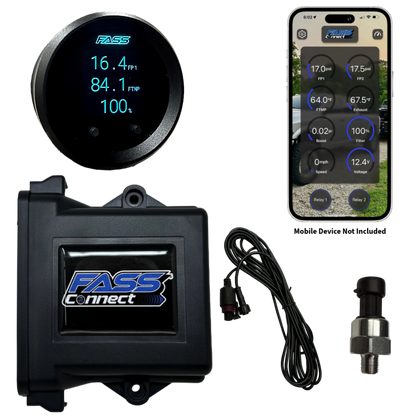

Included Components

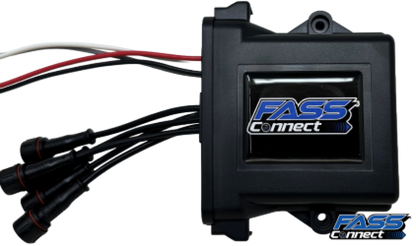

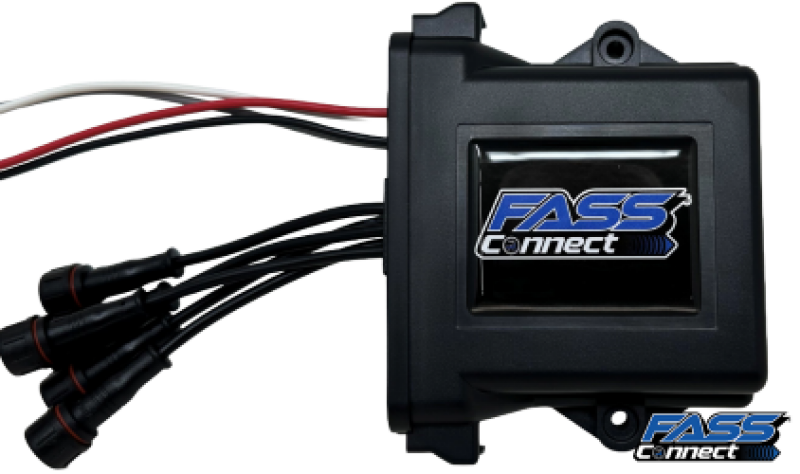

• 1x FASS Connect ECU module

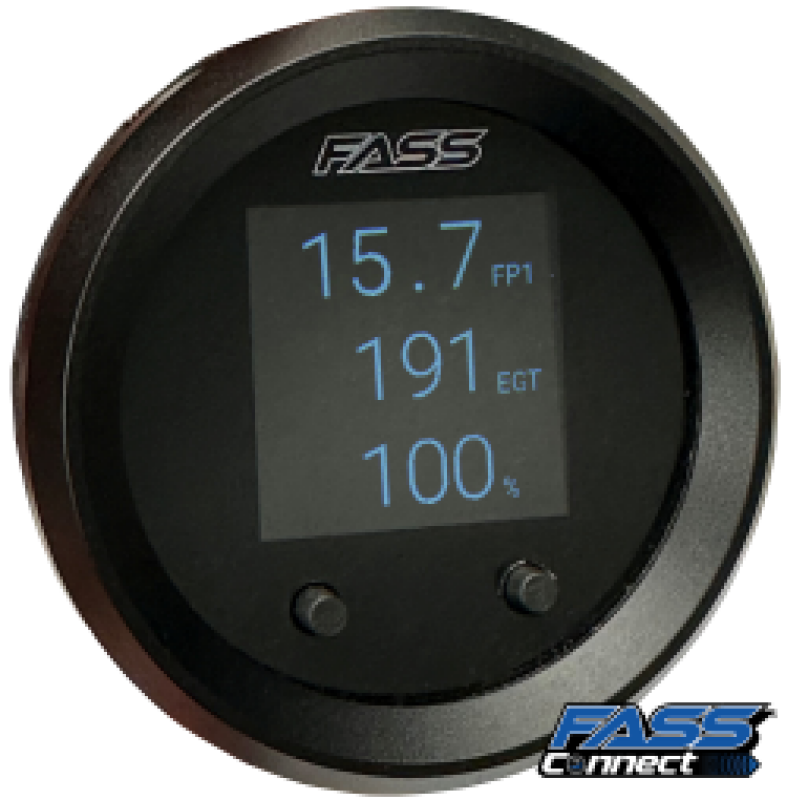

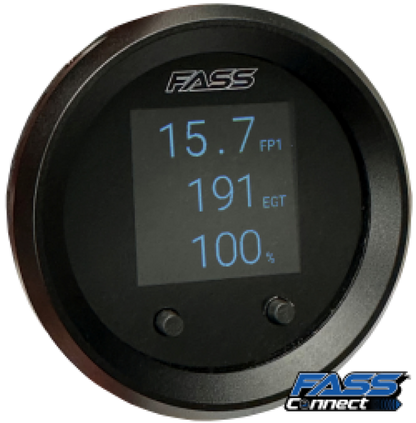

• 1x Digital in-cab gauge display
• 1x 0-100 PSI fuel pressure sensor
• 1x Wiring harness kit
• 1x Relay and fuse installation hardware

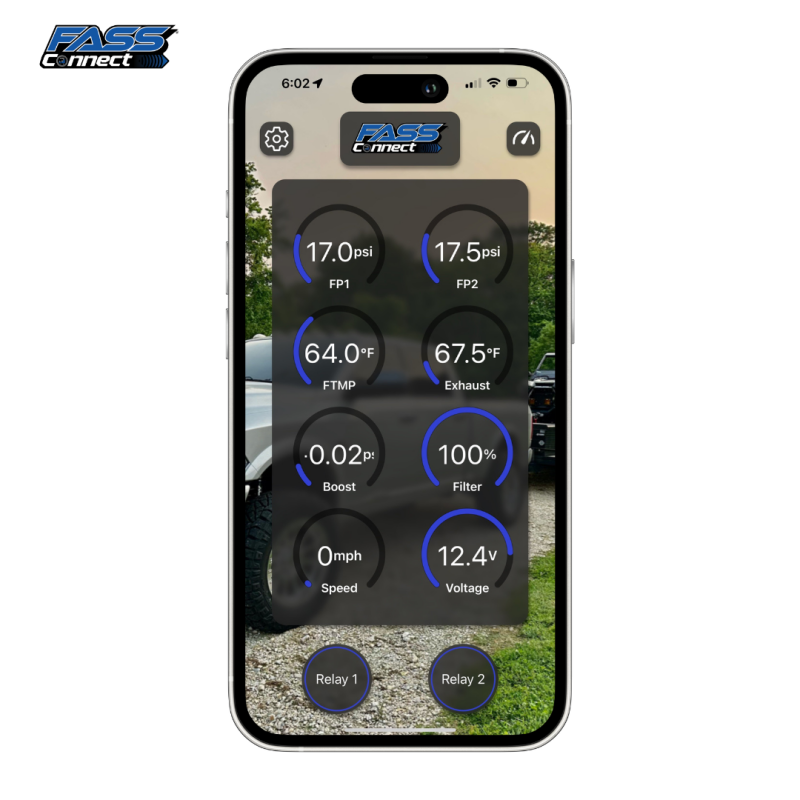

• 1x Mobile app access (download-based)
• 1x Installation instructions

Product Description

The FASS FC2001K Connect Digital Monitoring System is an advanced wireless monitoring solution designed for use with FASS fuel systems on diesel-powered vehicles. It provides real-time visibility into key performance data such as fuel pressure, filter life, and additional engine parameters through a dedicated in-cab gauge or smartphone application.

This system uses a wireless ECU to transmit data from multiple sensors to the display, eliminating the need for complex wiring through the vehicle cabin. It supports up to five sensor inputs, allowing users to expand monitoring capabilities with optional EGT, temperature, and additional pressure sensors. Dual relay outputs also allow control of accessories such as fuel heaters or auxiliary devices directly through the system.

Designed as a universal upgrade for vehicles already equipped with FASS fuel systems, the FC2001K enhances diagnostic capability and system awareness without modifying the fuel delivery hardware itself. It is ideal for diesel truck owners who want detailed insight into fuel system health and performance under towing, hauling, or high-performance driving conditions.
