RideTech 12290115 Front & Rear Lowering Kit for 2015-2026 Ford F-150 4WD

Vehicle Fitment

• 2015-2026 Ford F-150, 4WD

Fitment Notes

• 4WD only
• Does not fit PowerBoost Hybrid trucks (driveshaft clearance)
• 2021-2026 trucks equipped with headlight sensors require bracket kit, part number 12299501

Features

• Adjustable ride height
• Fox Factory shock technology
• Monotube, gas pressure, aluminum body shocks
• Adjustable valving
• New tubular upper control arm
• Improved camber and caster at lowered ride height
• 100% bolt-on installation, no welding
• Made in the USA
• 1,000,001-mile warranty

Specifications

• Front drop: 1.5in to 3in, adjustable
• Rear drop: 3.5in to 5.5in, adjustable
• Front shock type: Coilover
• Rear shock type: HQ Series
• Shock body material: Aluminum
• Damper design: Monotube, gas pressure

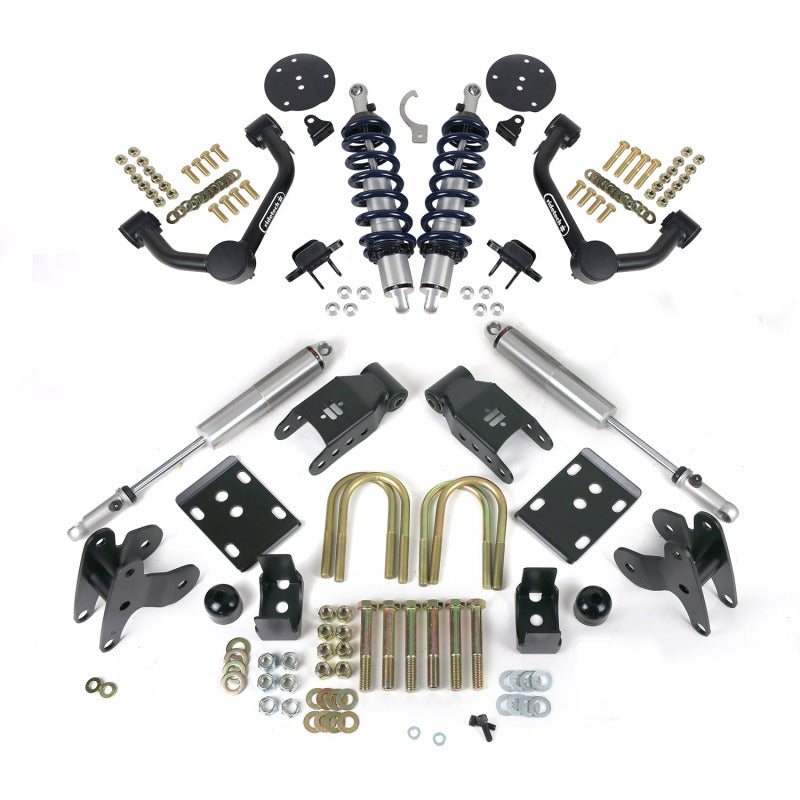

Included Components

• 2x Front tubular upper control arms
• 2x Front coilover shocks
• 1x Flip bracket kit
• 2x Rear HQ Series shocks
• Mounting hardware

Product Description

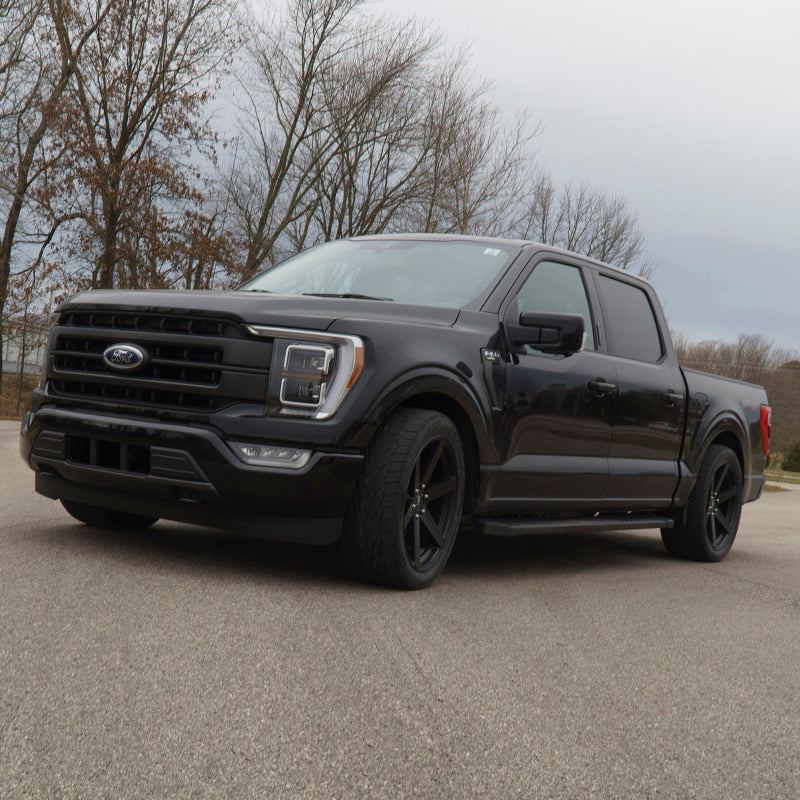

The RideTech 12290115 is a complete adjustable coilover lowering kit engineered for the 2015-2026 Ford F-150 4WD, delivering an aggressive, fully adjustable stance with up to 3 inches of drop in the front and 5.5 inches in the rear. This system transforms the F-150 into a high-performance muscle truck with a noticeably lower stance, sharper handling, and improved ride quality.

Front coilovers and rear HQ Series shocks use Fox Factory shock technology in a monotube, gas pressure aluminum body with adjustable valving for a genuinely tunable ride. A new tubular upper control arm improves camber and caster at the lowered ride height, correcting geometry that a simple spring-only drop would leave uncorrected, resulting in noticeably improved handling rather than just a lower stance.

This kit is intended for F-150 4WD owners looking for a comprehensive, adjustable lowering solution rather than a basic spring kit, and is 100% bolt-on with no welding required. It does not fit PowerBoost Hybrid trucks due to driveshaft clearance, and 2021-2026 trucks equipped with headlight sensors require an additional bracket kit, sold separately as part number 12299501. Made in the USA and backed by RideTech's 1,000,001-mile warranty.
