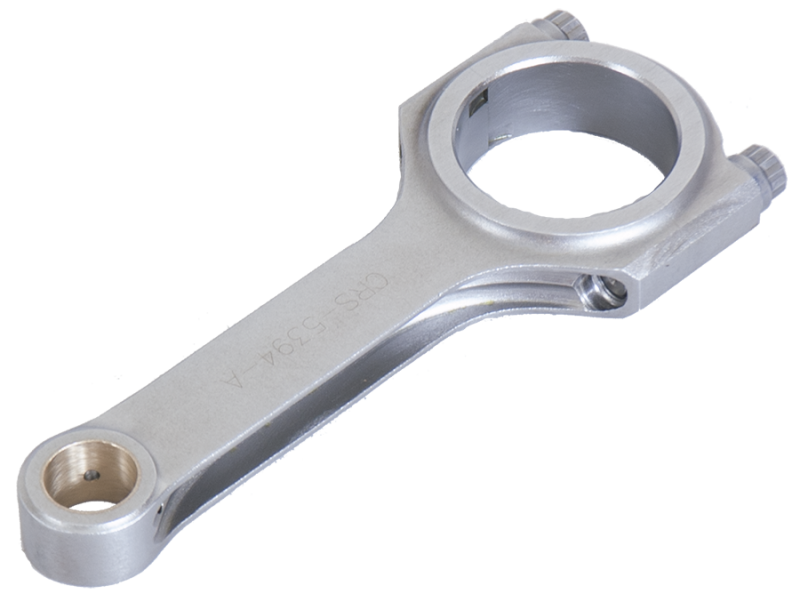

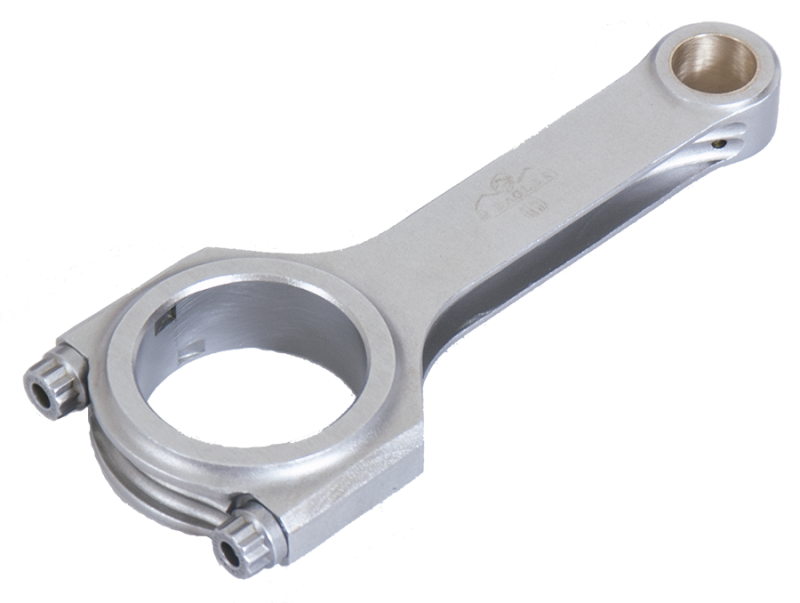

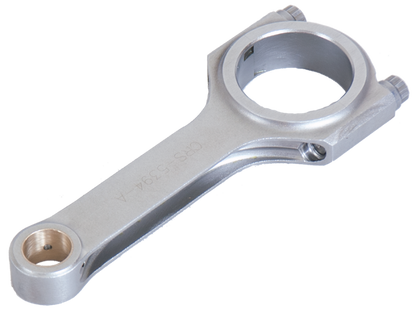

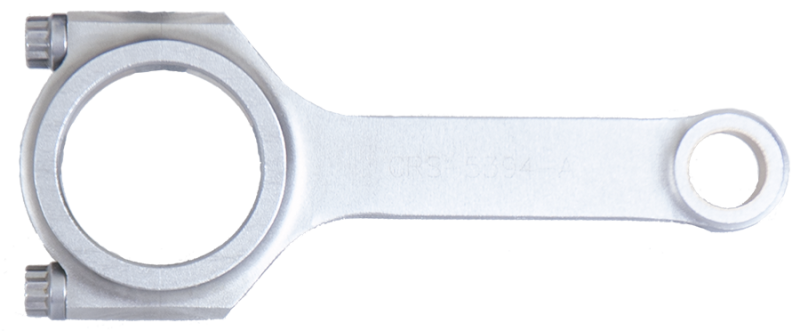

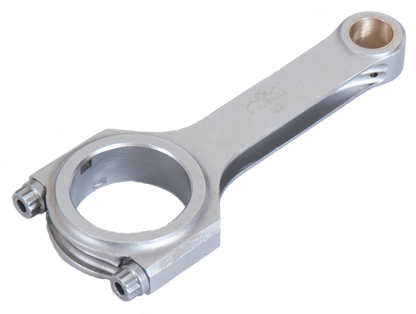

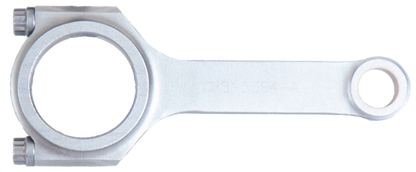

Eagle CRS5394H3D-1 Forged 4340 H-Beam Connecting Rod for 1991-2000 Honda/Acura

Vehicle Fitment

• 1991-1995 Acura/Honda with D16/ZC 1.6L L4
• 1996-2000 Honda non-VTEC Civic (D16A6 / D16Y7 / D16Y8) 1.6L SOHC-VTEC variations
• 1988-1991 Honda Civic / CRX with D16/ZC 1.6L engines
• 1993-1997 Honda Del Sol with D16 1.6L engine

Fitment Notes

• Full floating wrist pin (bushed) design - pin end requires correct bushing and wrist pin setup
• Some block and main girdle clearance may be required due to rod size (for high-performance builds) :contentReference[oaicite:0]{index=0}
• Designed for SOHC and non-VTEC setups; confirm engine code (D16A, D16Y, D16Z, ZC) before ordering :contentReference[oaicite:1]{index=1}

Features

• Forged 4340 chromoly steel construction for high fatigue strength :contentReference[oaicite:2]{index=2}
• H-Beam design for optimized stiffness and weight balance :contentReference[oaicite:3]{index=3}
• Weight matched to ±1 gram for consistency across rods :contentReference[oaicite:4]{index=4}
• Three-eights inch ARP 2000 rod bolts for high tensile strength fastener retention :contentReference[oaicite:5]{index=5}
• Shot-peened, magnaflux tested, multi-stage heat treated for durability :contentReference[oaicite:6]{index=6}
• Precision machined housing bore and pin end widths for tight tolerances :contentReference[oaicite:7]{index=7}
• Bushed/full-floating wrist pin style - supports high RPM with reduced pin binding :contentReference[oaicite:8]{index=8}
• Recommended for builds up to ~900 HP in 4-cylinder configurations depending on supporting parts and build type :contentReference[oaicite:9]{index=9}

Specifications

• Rod center-to-center length: **5.394 in** (≈ 137.0 mm) :contentReference[oaicite:10]{index=10}
• Rod weight (single): ~ 535 grams :contentReference[oaicite:11]{index=11}
• Rod journal (big end): **1.771 in** :contentReference[oaicite:12]{index=12}
• Housing bore (big-end inside diameter): **1.890 in** :contentReference[oaicite:13]{index=13}
• Pin (wrist-pin) diameter: **0.748 in** :contentReference[oaicite:14]{index=14}
• Big end width: **0.892 in** :contentReference[oaicite:15]{index=15}
• Pin end (small end) width: **0.716 in** :contentReference[oaicite:16]{index=16}
• Thickness above pin: **0.200 in** :contentReference[oaicite:17]{index=17}
• Fastener torque: **43 ft-lbs** with ARP moly lube :contentReference[oaicite:18]{index=18}

Included Components

• 1x Eagle CRS5394H3D-1 single connecting rod

Product Description

The Eagle CRS5394H3D-1 is a premium H-Beam single connecting rod designed for Honda/Acura 1.6L D16/ZC engine families (SOHC and non-VTEC). Made from forged 4340 chromoly steel, this rod is designed to deliver strength and reliability in high RPM or boosted environments. It is shot-peened, magnaflux inspected, machined to precision tolerances, and uses ARP 2000 bolts for reliable clamping force. The full floating wrist pin (bushed) design helps reduce side loading, minimizing wear under demanding conditions.

Ideal for engine builders upgrading their stock rods, this single rod fits a wide range of 1.6L models from 1988 through 2000 that use D16/ZC engines (Civic, Del Sol, Integra, CRX). It is verified through those model years. **Fitment confirmed through 2000. 2025 unconfirmed.**
