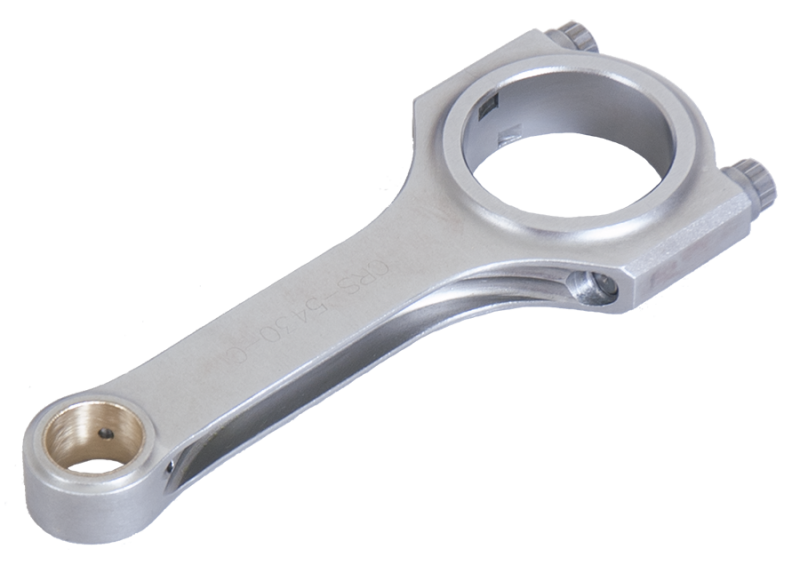

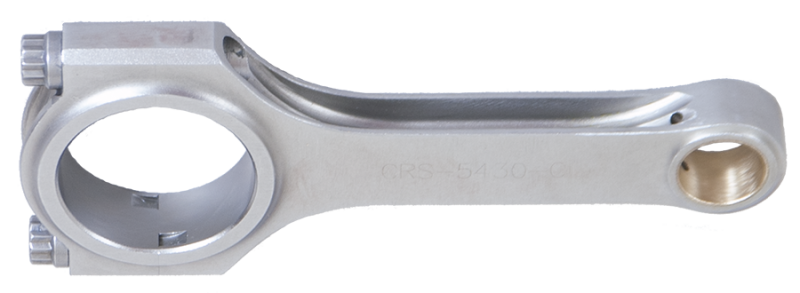

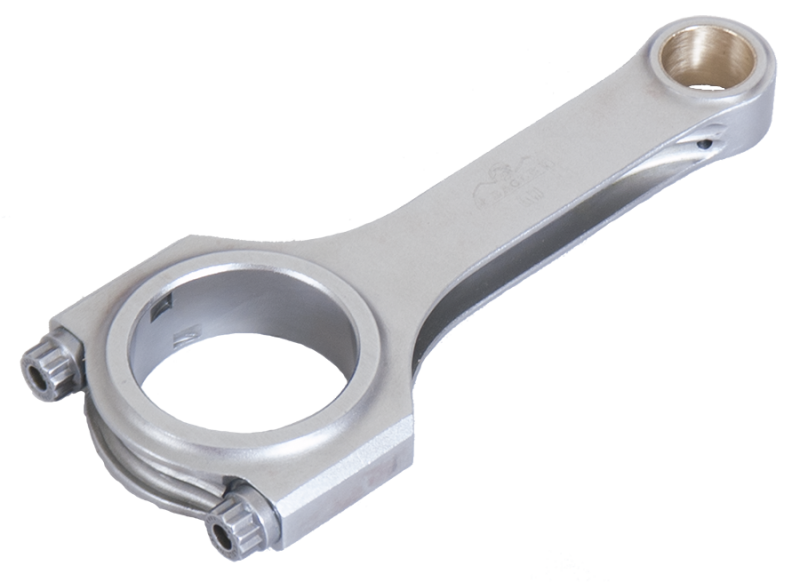

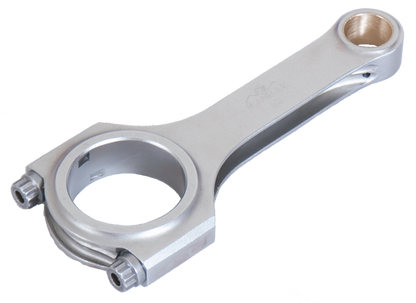

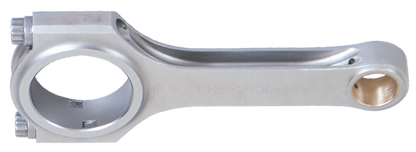

Eagle CRS5430A3D-1 Forged 4340 H-Beam Rod for 1994-2002 Honda/Acura B18C

Vehicle Fitment

• 1994-2002 Acura Integra GS-R / Type R - 1.8 L B18C (B18C1 / B18C5)
• 1994-2001 Honda Integra GSR / B18C (VTEC)

Features

• Forged 4340 chromoly steel for high strength and durability
• H-beam design for excellent load handling under high stress
• Two-piece forging with precision cap alignment for better fatigue life
• Shot-peened and fully machined surfaces
• Weight-matched manufacturing for consistent balance
• Bushed for full-floating piston pin (bronze bushings)
• Uses 3/8" ARP 2000 high-strength cap bolts
• Precision sizing held with tight tolerances (Sunnen K-ross grinding)

Specifications

• Center-to-center length: 5.430" (137.9 mm)
• Pin size: 0.827" (≈ 21.0 mm)
• Rod journal diameter: 1.771"
• Big end bore (housing): 1.89"
• Big end width: 0.858"
• Pin end width: 0.725"
• Bolt torque spec: 43 ft-lbs (use ARP moly lube only)
• Approximate weight per rod: ~535 g

Included Components

• 1x Eagle forged 4340 H-beam connecting rod (part CRS5430A3D-1)

Product Description

The Eagle CRS5430A3D-1 is a high-performance single connecting rod designed for the Honda/Acura B18C VTEC engine, commonly found in Integra GS-R and Type R models from 1994 to 2002. Constructed from forged 4340 chromoly steel, this H-beam rod is built to handle high RPM and elevated stress, making it ideal for both track builds and high-boost applications.

Each rod is precisely manufactured using a two-piece forging method, which aligns the grain of the steel for superior strength. The surfaces are shot-peened and machined, while the sizing is guaranteed with Sunnen K-ross grinding. These rods are bushed for full-floating piston pins and equipped with 3/8" ARP 2000 cap bolts, ensuring reliable clamping force under severe conditions.

Balanced weight and tight tolerances help maintain engine harmony, but because this is a high-stress performance component, careful assembly is recommended. Use ARP moly lube on the bolts and torque to spec (43 ft-lbs) to get the most out of this rod in your B18C build.
