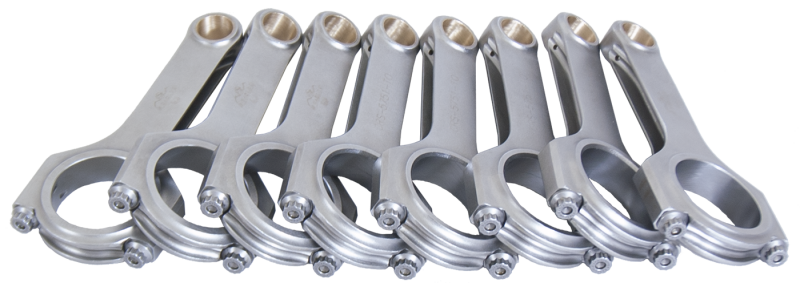

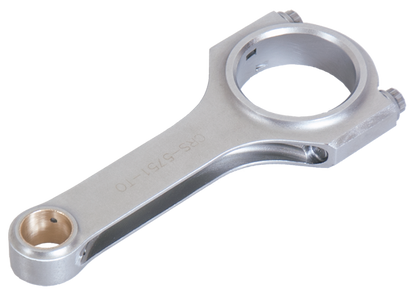

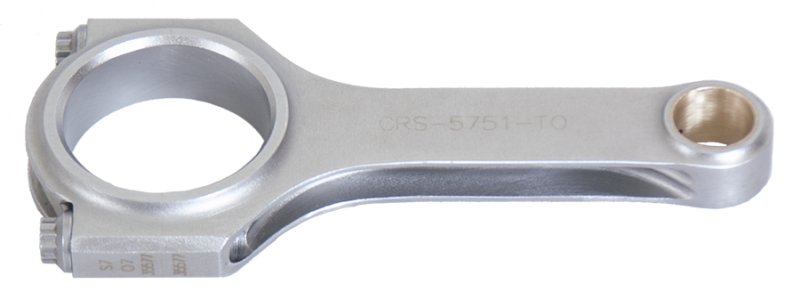

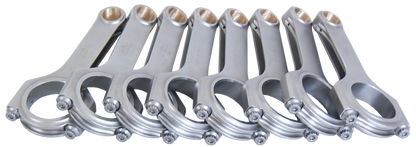

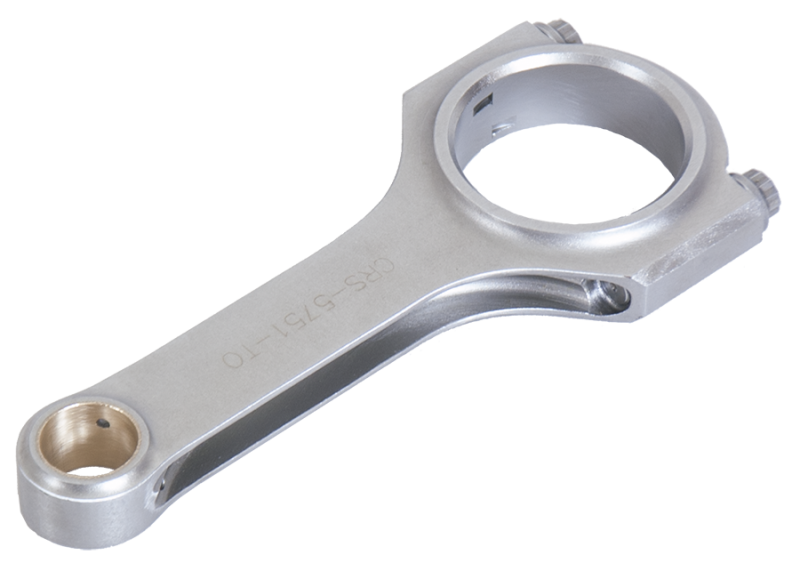

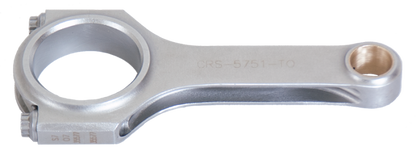

Eagle CRS5751T3D H-Beam Connecting Rods for 1990-2002 Toyota 1UZ-FE 4.0L V8

Vehicle Fitment

• 1990-2002 Toyota 1UZ-FE 4.0L V8

Fitment Notes

• Compatible with both Toyota and Lexus 1UZ-FE applications.
• Not suitable for 2UZ-FE or 3UZ-FE engines.

Features

• Forged 4340 chromoly steel construction for enhanced strength.
• 7/16" ARP 8740 bolts for secure fastening.
• Full-floating piston pin design for improved performance.
• Shot-peened surface for increased durability.
• Precision-machined to exact tolerances for optimal fit.
• Weight-matched to within +/- 1g for balanced operation.
• Suitable for high-performance applications up to 900 hp.
• Sold as a set of 8 connecting rods.

Specifications

• Center to Center Length: 5.751 inches (146 mm)
• Pin Size: 0.866 inches (22 mm)
• Rod Journal: 2.047 inches (52.03 mm)
• Housing Bore: 2.166 inches (55.03 mm)
• Pin End Width: 0.83 inches (21.08 mm)
• Big End Width: 0.902 inches (22.91 mm)
• Typical Weight: 615 grams per rod
• Material: Forged 4340 steel
• Bolts: 7/16" ARP 8740
• Bushed for full-floating piston pin

Included Components

• 8x Eagle CRS5751T3D H-Beam Connecting Rods
• 8x ARP 8740 Bolts

Product Description

The Eagle CRS5751T3D H-Beam Connecting Rods are engineered for high-performance applications, specifically designed for the 1990-2002 Toyota 1UZ-FE 4.0L V8 engine. Crafted from forged 4340 chromoly steel, these rods offer superior strength and durability, making them ideal for builds aiming for power outputs up to 900 hp.

Each rod is precision-machined to exact tolerances and weight-matched to within +/- 1g, ensuring balanced operation. The full-floating piston pin design enhances performance, while the shot-peened surface treatment increases fatigue resistance. The rods are equipped with 7/16" ARP 8740 bolts, known for their reliability in high-stress environments.

Sold as a set of 8, the Eagle CRS5751T3D H-Beam Connecting Rods are a reliable choice for enthusiasts and professionals seeking to build a robust bottom end for their 1UZ-FE engine.
