Eagle CRS6243R3D Forged 6.243-in 4340 H-Beam Connecting Rods for 03-24 Chrysler

Vehicle Fitment

• 2003-2024 Chrysler / Dodge / Jeep (2005-10 for 6.1L) 5.7L Gen III HEMI V8 (includes LX-, Ram-, Durango-, Charger/Challenger/300-platforms)
• 2005-2010 Chrysler 300C / Dodge Charger / Challenger / Magnum / Jeep Grand Cherokee SRT-8 with 6.1L HEMI V8

Fitment Notes

• Does **not** fit HEMI engines with non-floating wrist pins or different pin diameter than .984 in
• Engine must be Gen III HEMI; earlier HEMIs (pre-2003) are excluded
• Does not fit performance trims that use the 6.4L / Hellcat / Demon etc unless modifying rods

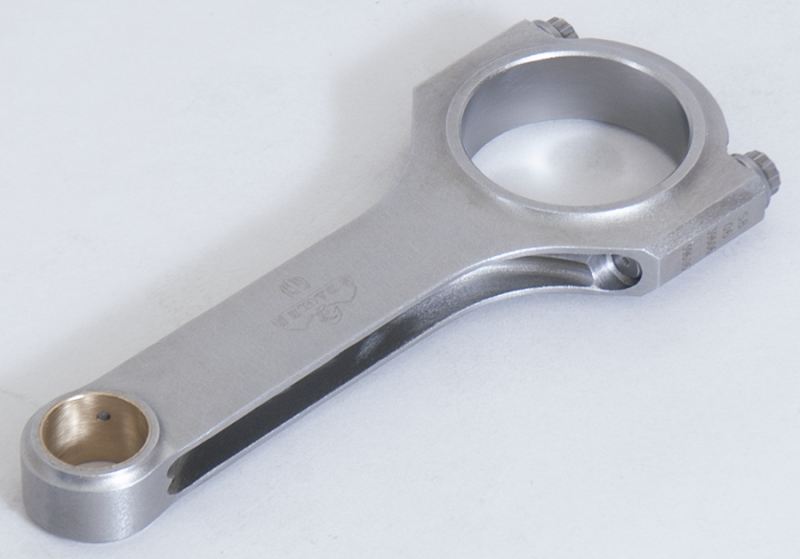

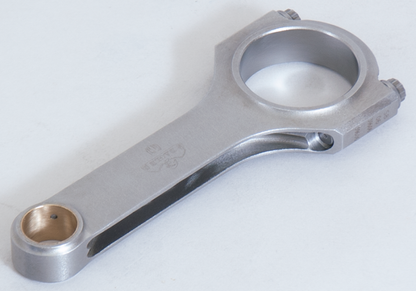

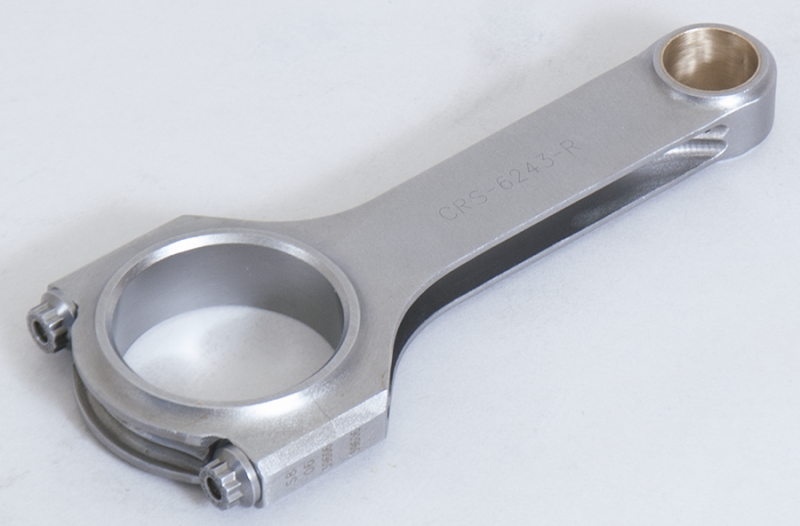

Features

• Forged 4340 steel construction for high strength and durability
• H-Beam design for optimized stiffness under high loads
• Floating wrist pins with silicon bronze bushings for smooth motion
• .984-inch pin end bore diameter accurately machined
• Magnafluxed, shot-peened, X-rayed and sonic tested for integrity

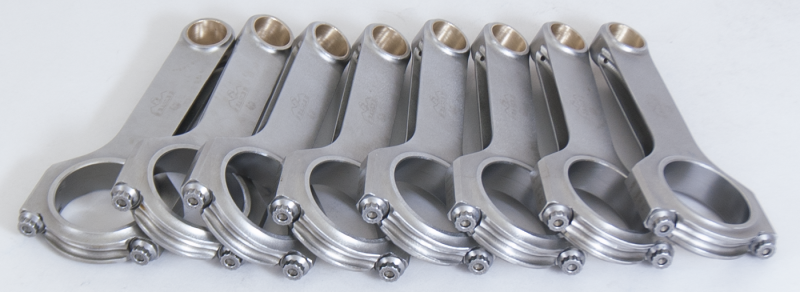

• Weight matched set of 8 rods to reduce engine imbalance
• Cap screw retention system with precision cap alignment sleeves
• Options for high strength ARP bolts for higher horsepower builds

Specifications

• Rod length, center-to-center: **6.243 in** (≈158.572 mm)
• Pin end bore diameter: **0.984 in** (25.0 mm)
• Rod journal diameter: **2.126 in**
• Rod bolt diameter: **7/16 in**, standard ARP 8740; upgrades available to ARP 2000 / L-19
• Weight per rod approx **640 grams**; set of 8 is weight matched
• Material: forged 4340 steel, vacuum-degassed; H-Beam form
• Wrist pin style: floating (silicon bronze bushing)
• Torque spec: using ARP bolt with specified lubrication, torque per manufacturer recommendations (≈ 63 ft-lbs for 8740 bolts typical, verify bolt spec used)

Included Components

• 8x Eagle CRS6243R3D forged connecting rods
• 8x rod cap bolts (standard ARP 8740 bolts or equivalent, unless upgraded)
• 1x set of rod bolt lubrication instructions and torque spec sheet

Product Description

The Eagle CRS6243R3D is a high-performance connecting rod set built for the Gen III HEMI V8 engines. Designed to cover both the 5.7L (2003-2024) and 6.1L (2005-2010) versions, these rods deliver forged 4340 steel strength with rigorous prep: magnafluxing, shot-peening, sonic & X-ray inspection to ensure integrity even under demanding loads. With a 6.243-inch center-to-center length and .984-inch wrist pin bore, they match the floating pin design used in these engines, making them a suitable upgrade for stock or modified builds that retain pin size and wrist pin type.

Ideal for builders wanting more durability in boosted, high-RPM or heavily used applications, the CRS6243R3D set replaces weaker OEM cast or lower spec rods. Note that fitment is verified through 2024 for the 5.7L applications; **2025 fitment is unconfirmed** for the 6.1L since that engine was discontinued in 2010. Before installation, ensure engine block, wrist pin, and bolt specs match OEM or upgraded standard: using upgraded ARP bolts requires proper torque and lubrication. These rods are not a bolt-on for many performance-trims using 6.4L or Hellcat motors without additional modifications.
