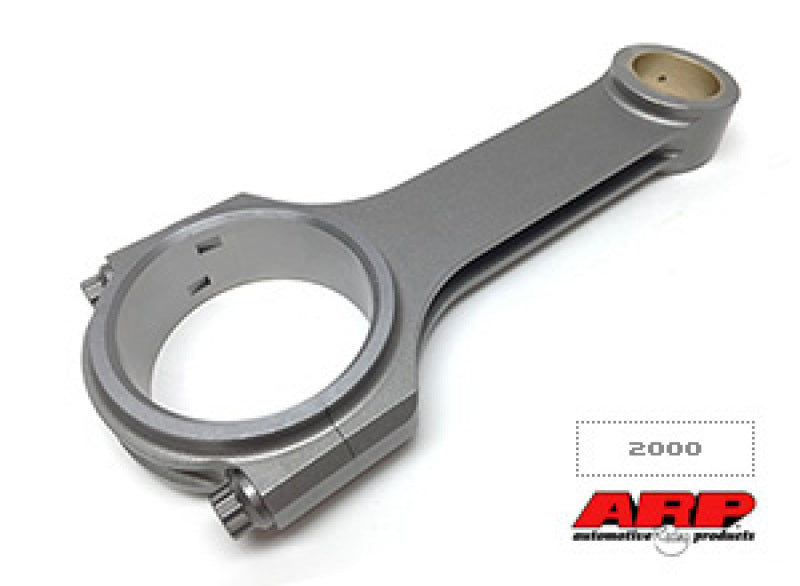

Brian Crower BC6430 Pro H-Beam Rods for 1994-2003 Ford 7.3L PowerStroke

Vehicle Fitment

• 1994-2003 Ford 7.3L PowerStroke Diesel (F-Series, Super Duty, 4WD/2WD)

Features

• Pro H-Beam design engineered for high strength
• 7/16" ARP fasteners for superior clamp load
• Accommodates up to 200 HP per cylinder
• CNC machined with micropolished surface finish
• Aerospace-grade 4340 chromoly steel construction
• Tapered pin end for precise fitment
• Finish-honed to exacting tolerances
• Includes ARP Custom Age 625+ option for extreme-duty applications

Specifications

• Center-to-Center (C-to-C): 7.130"
• Big End (BE) Bore: 2.690"
• BE Width: 1.230"
• Pin End (PE) Bore: 1.309"
• PE Width: 1.230"
• Weight per rod: approximately 1190-1180 g (source-dependent)
• Torque spec: ~77-80 ft-lb for the 7/16" ARP fastener

Included Components

• 8x Pro H-Beam connecting rods (BC6430)
• 8x ARP 7/16" fasteners (standard; 625+ optional upgrade available)

Product Description

The Brian Crower BC6430 Pro H-Beam Rods are precision-engineered connecting rods designed specifically for the Ford 7.3 L PowerStroke Diesel engines from 1994 to 2003. Crafted from aerospace-grade 4340 chromoly steel and featuring CNC machining with micropolished surfaces, these rods deliver exceptional strength and reliability - ideal for boosted, high-rpm, or rugged-duty builds.

Each rod is finish-honed to maintain tight tolerances and utilizes a tapered pin end along with robust 7/16" ARP fasteners to ensure durability under stress. These rods are rated to handle up to 200 HP per cylinder, making them excellent for performance or heavy-duty applications. The torque specification for the fasteners is approximately 77-80 ft-lb.

Fitment is confirmed through 2003. 2025 coverage is unconfirmed at time of listing. Designed for F-Series and Super Duty applications (2WD and 4WD), they are ideal for enthusiasts seeking OEM-plus strength without redesigning the rotating assembly. Optional ARP Custom Age 625+ fasteners are available for extreme-duty builds.
