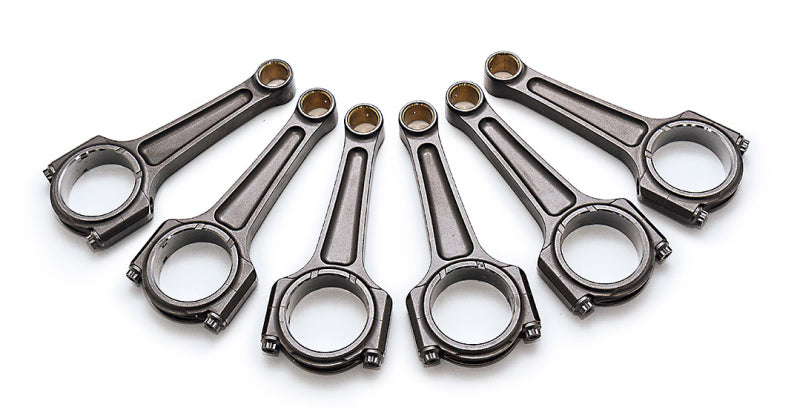

Manley 14424-6 Turbo Tuff I-Beam Connecting Rods for 09-21 Nissan GT-R VR38DETT

Vehicle Fitment

• 2009-2021 Nissan GT-R R35 (VR38DETT 3.8L twin-turbo V6 engine)

Features

• Pro Series Turbo Tuff I-Beam connecting rod design forged for high performance
• Forged from 4340 aircraft-quality vacuum-degassed steel for exceptional strength
• Shot peened after machining and 100% magnaflux inspected to eliminate defects
• Fully machined big and small end bores with precise tolerances for consistency
• Weight-matched rods for improved engine balance and reduced vibration
• 7/16" ARP 2000 high tensile cap screws with 12-point heads for superior clamp force
• Designed for high-boost turbo applications and extreme horsepower builds
• Capable of supporting high horsepower when properly built and tuned

Specifications

• Center-to-Center Length: 6.500" (165.10 mm)
• Big End Bore Diameter: 2.323" (59.00 mm)
• Big End Width: 0.897" (22.78 mm)
• Pin Diameter: 0.9055" (23 mm)
• Pin Bore: 0.9063"
• Approx. Rod Weight: ~733 g each
• Rod Style: Pro Series Turbo Tuff I-Beam
• Fasteners: 7/16" ARP 2000 cap screws

Included Components

• 6x Pro Series Turbo Tuff I-Beam Connecting Rods
• 6x ARP 2000 7/16" Rod Bolts

Product Description

The Manley 14424-6 Turbo Tuff I-Beam Connecting Rod Set is engineered for high-performance builds on the 3.8 L VR38DETT twin-turbo V6 engine found in the 2009-2021 Nissan GT-R R35. Forged from aircraft-quality 4340 vacuum-degassed steel, each rod undergoes precision machining, shot peening, and magnaflux inspection to ensure maximum strength, durability, and consistency under extreme loads and high-boost conditions.

Weight-matched for balance and equipped with 7/16" ARP 2000 high-tensile rod bolts, this 6-rod set is designed to support serious horsepower goals in turbocharged applications. With robust I-Beam styling and rigorous quality control, the Manley 14424-6 rods are a trusted choice for tuners and builders pushing the limits of the GT-R VR38DETT platform.
