Eagle CRS4783N3D 4340 H-Beam Connecting Rods Set for 1989-2002 Nissan RB26 RB26D

Vehicle Fitment

• 1989-2002 Nissan Skyline / Nissan/Infiniti RB26 / RB26DETT (RB26DE, RB26DETT engine, RWD)

Fitment Notes

• Does not fit non-RB26 engines (such as RB25, unless modified to RB26 spec).
• Intended for high performance / competition / upgraded power builds; stock OEM rods must be replaced entirely.
• 2025 fitment unconfirmed. Fitment confirmed through 2002 for RB26, RB26DE, RB26DETT. 2025 unconfirmed.

Features

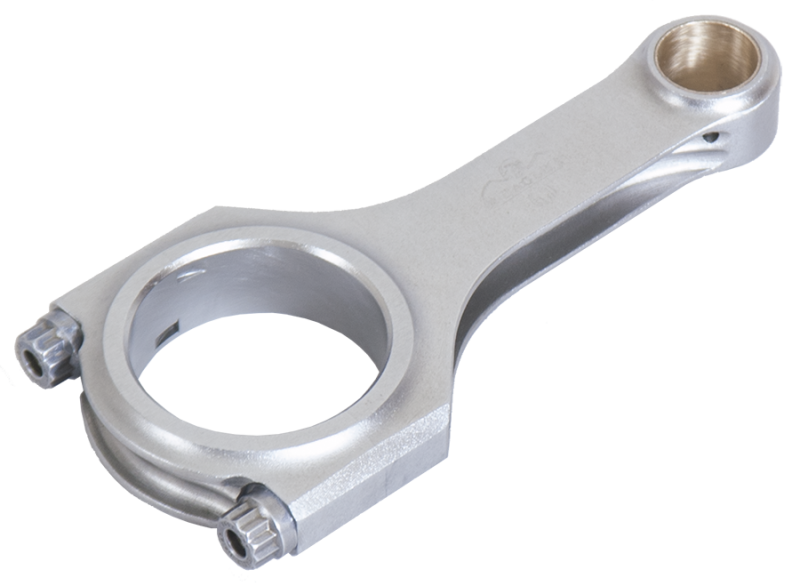

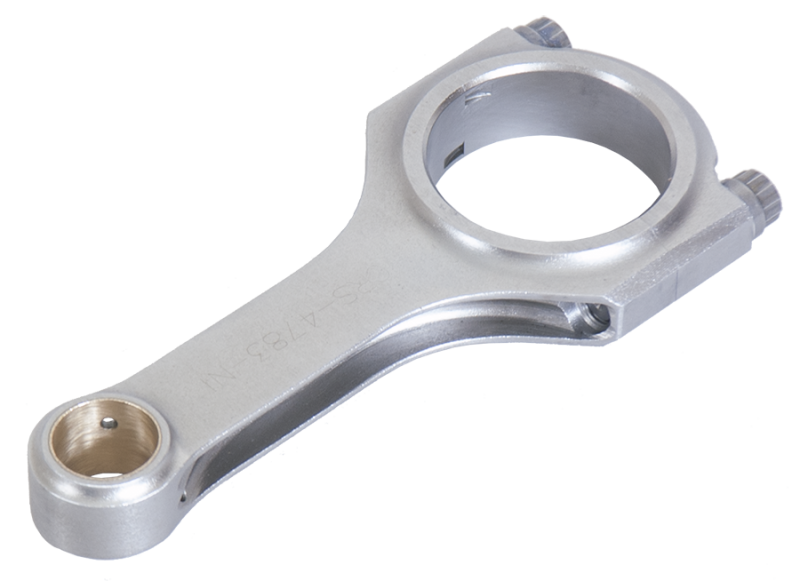

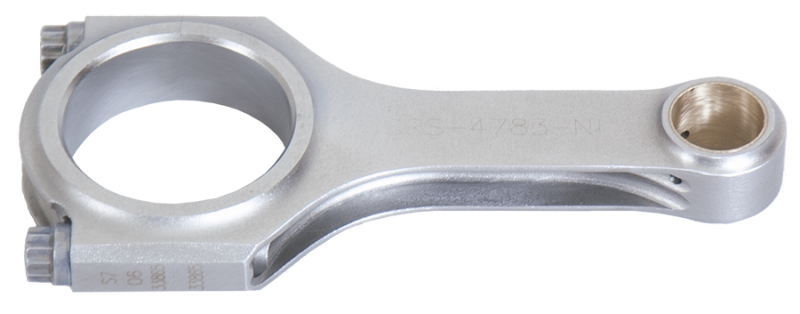

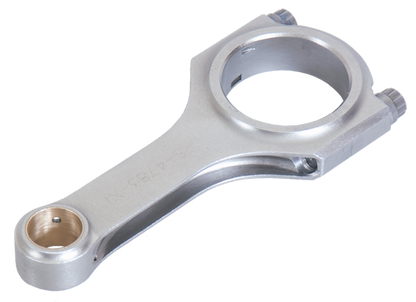

• Forged SAE 4340 chromoly steel H-beam construction for high strength and fatigue resistance.
• Shot-peened, magnafluxed, and multi-stage heat treated to ensure durability under high load.
• Precision cap alignment sleeves to ensure accurate cap location and reduce distortion.
• Weight-matched to ±1 gram per rod for balanced rotating assembly.
• Uses high-strength ARP 2000 (or upgradeable) rod bolts, 3/8-in cap screw type.
• Bushed floating wrist pin design for RB26 floating pin configuration.
• Sunnen Kross-grinding to maintain precise bearing bore tolerances.
• Rated for very high horsepower applications (up to ~1500 hp depending on supporting modifications).

Specifications

• Center-to-center rod length: 4.783 in (≈ 121.49 mm)
• Big end width: 0.858 in
• Pin size (wrist pin bore): 0.826 in
• Rod journal (big end bore): ~1.889 in (≈ 48 mm)
• Housing bore (big end inner diameter): 2.007 in
• Pin end width: 0.858 in
• Thickness above pin: 0.205 in
• Typical rod weight: ~495 grams per rod
• Quantity: Full set of 6 rods (for 6-cylinder RB26 engine)

Included Components

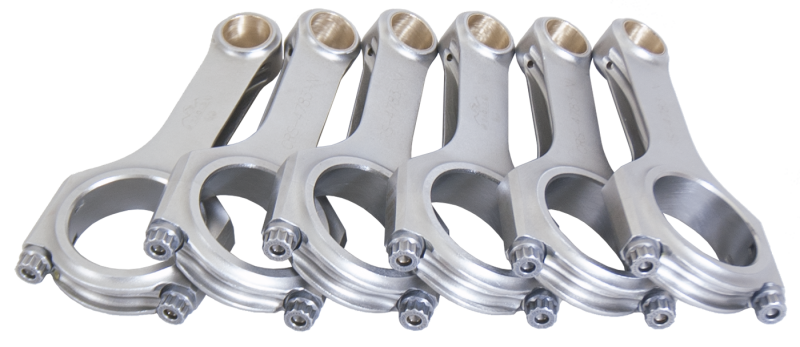

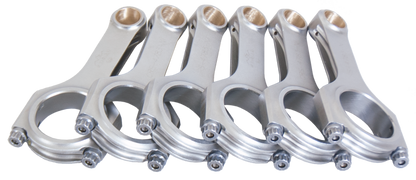

• 6x Connecting Rods (Eagle CRS4783N3D, set of 6)
• 6x Matching ARP 2000 rod bolts (cap screw style)
• Rod cap alignment sleeves

Product Description

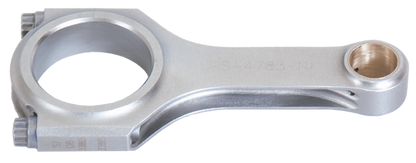

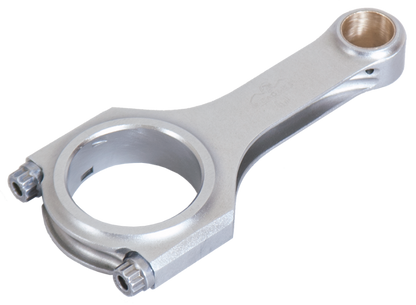

The Eagle CRS4783N3D connecting rods are a premium upgrade designed for the Nissan RB26 / RB26DETT engines used in 1989-2002 Nissan Skyline and compatible RB26 builds. Crafted from SAE 4340 forged steel, these H-beam rods undergo shot-peening, magnafluxing, and precise machining to offer exceptional strength and reliability under high stress. The floating pin/bushed wrist pin design matches OEM RB26 standards, while alignment sleeves and weight matching ensure smooth, balanced performance in high-RPM/high-boost or high horsepower setups.

These rods are intended for serious performance builds. Stock rods must be removed and replaced; proper torque on the ARP bolts is critical, and matching to correct bearing clearances is required. These rods are **not** universally compatible with other engine families without modification. Users building RB26 motors for street or track use will benefit significantly from their enhanced durability. Fitment is fully confirmed for 1989 through 2002 RB26, RB26DE, RB26DETT applications; **2025 fitment is unconfirmed**.
