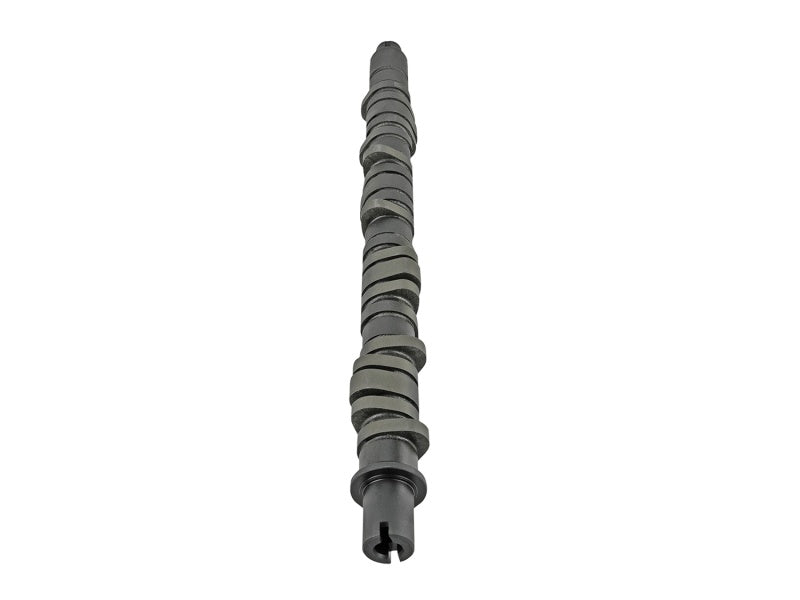

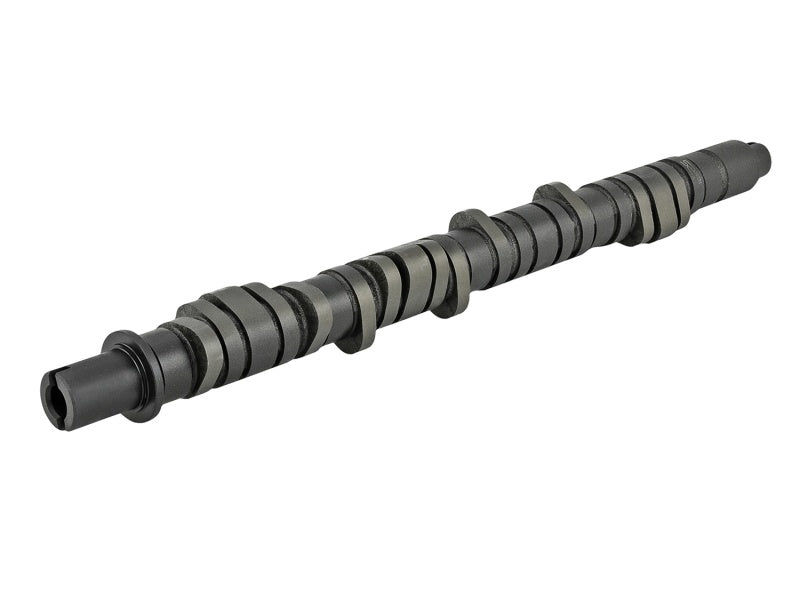

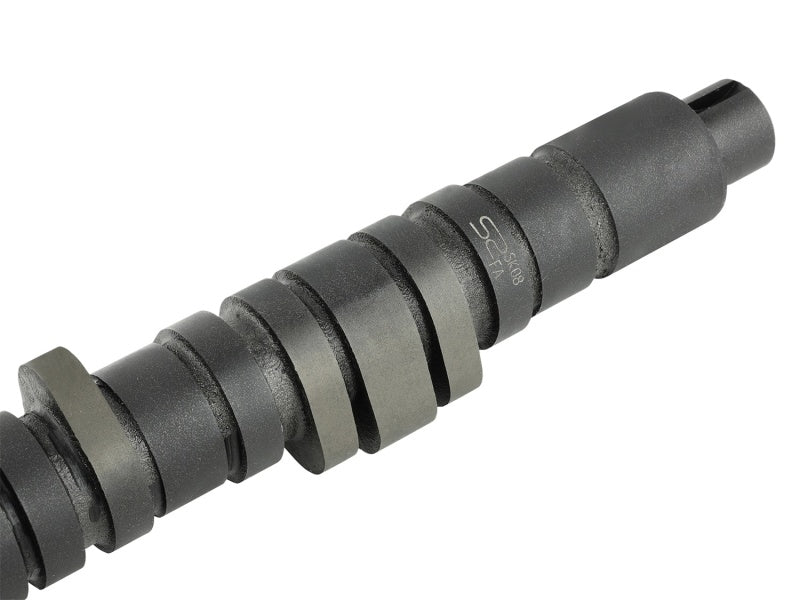

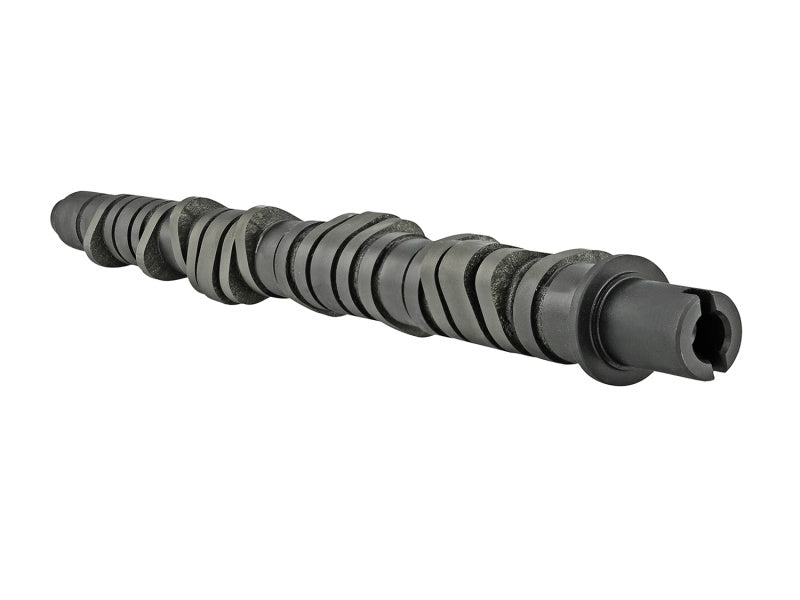

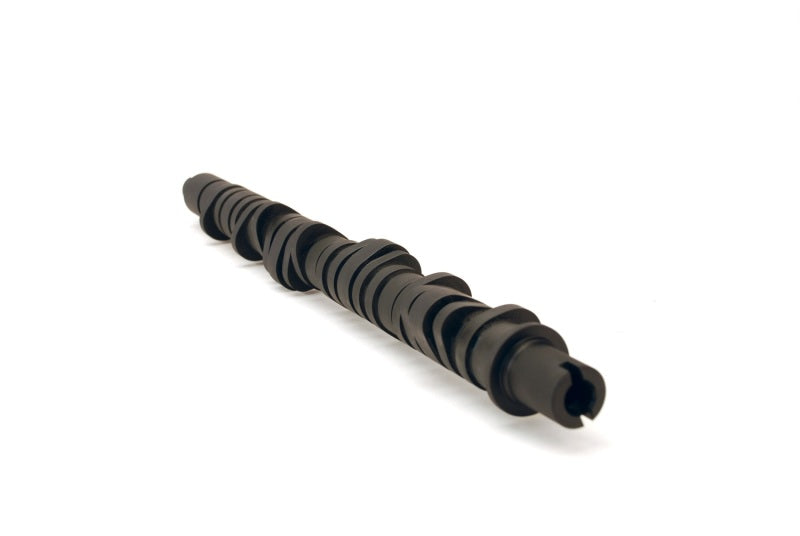

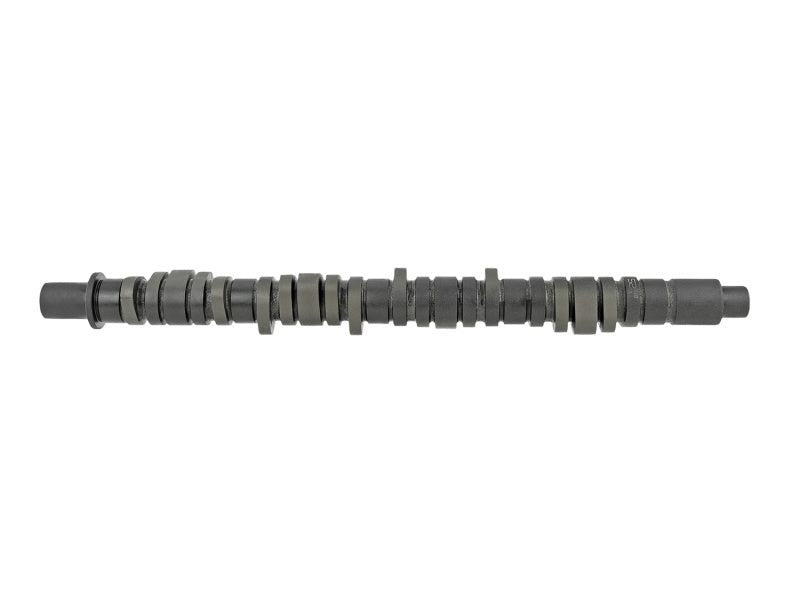

Skunk2 305-05-0055 Tuner Stage 4 Camshaft for Honda D-Series VTEC D15/D16

Vehicle Fitment

• 1988-2000 Honda Civic -- CX / DX / EX / GX / HX / LX / Si (D15/D16 VTEC)
• 1988-1991 Honda CRX -- Base / HF / Si (D15/D16 VTEC)
• 1993-1997 Honda Civic del Sol -- S / Si (D15/D16 VTEC)

Fitment Notes

• D-Series SOHC VTEC engines ONLY -- D15 and D16 VTEC variants
• Does NOT fit non-VTEC D-Series engines
• Valve spring and retainer upgrade REQUIRED due to additional lift and RPM range
• Skunk2 adjustable cam gear required for fine-tuning -- sold separately
• Designed for highly modified engines -- NA and forced induction builds
• Not legal for sale or use in California on pollution-controlled vehicles

Features

• Tuner Stage 4 -- highest stage in Skunk2 Tuner Series lineup
• Outperforms all other Skunk2 Tuner Series offerings from idle to redline
• No loss in drivability despite aggressive profile
• Optimized mid-range and top-end horsepower and torque
• Peak power moved up the RPM band -- seamless VTEC crossover
• Fast Ramp technology -- reduced seat timing for increased cylinder pressure and torque
• AMAX technology -- maximizes area under the lift curve for greater efficiency and power
• More duration than competitors above 1mm lift -- greater airflow efficiency
• Ideal for max-effort NA and turbo builds
• 1-year warranty

Specifications

• Series: Tuner Stage 4
• Engine: Honda D-Series SOHC VTEC (D15 / D16)
• Cam Style: SOHC
• Intake Duration (Advertised): 254°
• Exhaust Duration (Advertised): 254°
• Intake Lift: 12.09mm (0.476 in.)
• Exhaust Lift: 11.68mm (0.460 in.)
• Valve Clearance -- Intake: 0.008 in.
• Valve Clearance -- Exhaust: 0.010 in.
• Use: Street/Strip
• UPC: 873265013104
• Warranty: 1 year

Included Components

• 1x Skunk2 Tuner Stage 4 camshaft

Product Description

The Skunk2 305-05-0055 is a Tuner Series Stage 4 camshaft for Honda D15 and D16 SOHC VTEC engines found in 1988-2000 Civics, 1988-1991 CRX, and 1993-1997 del Sol. As the top of Skunk2's Tuner Series lineup, the Stage 4 is engineered for highly modified engines -- both naturally aspirated and turbocharged -- and delivers optimized mid-range and top-end power with a seamless VTEC crossover and no loss in drivability.

The cam profile incorporates Skunk2's Fast Ramp technology (reduced seat timing for increased cylinder pressure, borrowed from Formula One) and AMAX (maximizes area under the lift curve for greater airflow efficiency above 1mm lift). With 254° duration and 12.09mm intake / 11.68mm exhaust lift, a valve spring and retainer upgrade is required, and a Skunk2 adjustable cam gear is strongly recommended for fine-tuning. Not legal for sale or use in California on pollution-controlled vehicles.
