COMP Cams 191160 XFI NSR 236/239 Hydraulic Roller Cam Set for 11-14 Ford Musta

Vehicle Fitment

• 2011-2014 Ford Mustang GT (5.0L Coyote V8)
• 2011-2014 Ford F-150 / F-150 Raptor (5.0L Coyote V8)

Features

• XFI NSR design compatible with stock valve springs
• Hydraulic roller camshafts for high-RPM performance
• Optimized for street and strip applications
• Billet steel construction for durability
• Integral counter-balance reduces vibration at high RPM
• Requires custom ECU tuning for optimal performance
• Phaser limiter or lock-out kit recommended
• Broad operating RPM range from ~1,900 to 7,200 RPM

Specifications

• Operating RPM: 1,900-7,200
• Intake duration @ .050": 236°
• Exhaust duration @ .050": 239°
• Advertised intake duration: 276°
• Advertised exhaust duration: 283°
• Intake valve lift: 0.492"
• Exhaust valve lift: 0.453"
• Lobe separation angle: 126°
• Camshaft gear attachment: 3-bolt

Included Components

• 1x pair of intake cams
• 1x pair of exhaust cams

Product Description

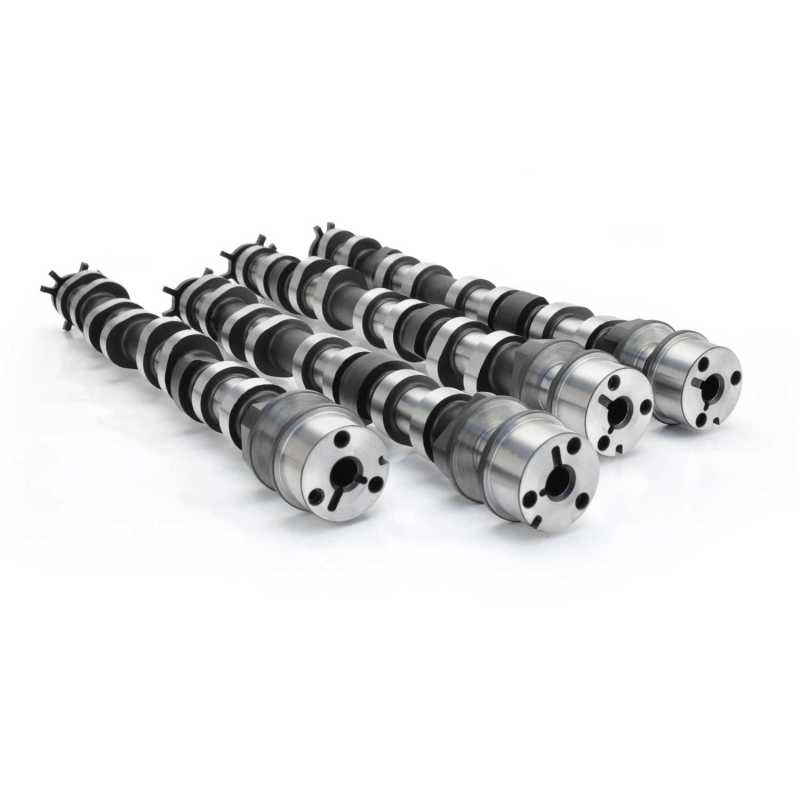

The COMP Cams 191160 is a high-performance hydraulic roller camshaft set (XFI NSR) designed for the 5.0L Ford Coyote V8 used in 2011-2014 Mustangs and F-150s. With aggressive 236°/239° duration and 126° lobe separation, it delivers strong power gains in the upper RPM range, ideal for street and strip performance applications.

The NSR design allows the cam to operate with stock valve springs, simplifying installation. To achieve optimal performance, custom ECU tuning is required, and a cam phaser limiter or lock-out kit should be installed to manage phaser operation safely. This cam set is built for enthusiasts looking to maximize high-RPM output while maintaining reliable street performance.
