Vibrant 12560 VanJen Stainless Steel Weld Fittings for 5 in OD Tubing Universal

Vehicle Fitment

• Universal Fit - Compatible with all makes and models using 5.000 in. O.D. stainless steel or aluminum charge piping and exhaust fabrication applications

Fitment Notes

• Designed for use with the Vibrant VanJen Clamping System - requires compatible VanJen Clamp and Union Sleeve for a complete connection (sold separately)
• Compatible with both stainless steel and aluminum 5.000 in. O.D. charge piping and exhaust tubing
• Not a standalone connection - must be welded onto tubing before use

Features

• Constructed from 304 stainless steel for maximum corrosion resistance and high-temperature durability
• Part of Vibrant's VanJen HD Clamping System - trusted by professional fabricators worldwide
• Provides a leak-free, modular connection ideal for pressurized charge piping and exhaust applications
• O-Ring seal included for a secure, pressure-tight interface
• Reusable and fully serviceable - ideal for custom fabrication builds requiring future access
• Superior alternative to traditional flanged, slip-fit, or silicone-coupled connections
• Handles vibration, axial movement, lateral misalignment, and angular deflection up to 12 degrees

Specifications

• Part Number: 12560
• Tubing O.D.: 5.000 in.
• Material: 304 Stainless Steel
• Finish: Natural / Polished Stainless
• Fitment Type: Universal
• Compatible Clamp System: Vibrant VanJen Series (sold separately)
• UPC: 690092167790

Included Components

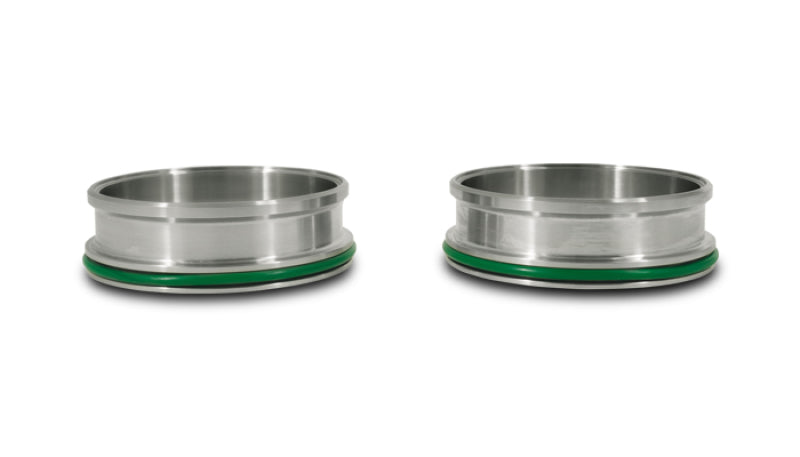

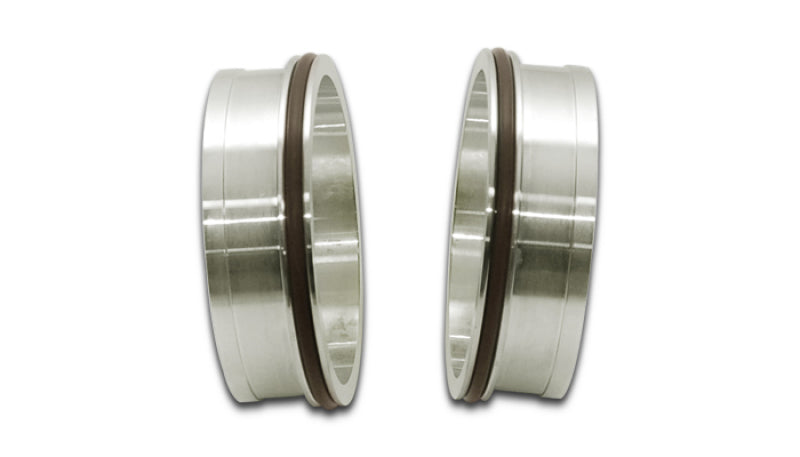

• 2x Vibrant VanJen Stainless Steel Weld Fittings (5.000 in. O.D.)
• 2x O-Ring Seals

Product Description

The Vibrant Performance 12560 VanJen Stainless Steel Weld Fittings are built for demanding custom fabrication work involving 5.000 in. O.D. charge piping or exhaust tubing. Made from 304 stainless steel, these weld-on ferrules deliver exceptional corrosion resistance and thermal durability while integrating directly with Vibrant's VanJen HD Clamping System for a clean, leak-free modular connection. Each fitting ships with an O-Ring for a secure, pressure-tight seal right out of the box.

Sold as a pair, the Vibrant 12560 is the solution for builders who need a robust, serviceable connection at the 5 in. diameter range - particularly useful in high-flow intake, intercooler, or large-format exhaust fabrication. Note that a complete connection also requires the appropriate VanJen Clamp and Union Sleeve, both sold separately. These fittings are universally compatible with any vehicle platform using 5 in. O.D. stainless steel or aluminum tubing.
