Timbren DR2500D Rear Suspension Enhancement System for 14-25 Ram 2500 2WD/4WD

Vehicle Fitment

2014-2019 Ram 2500 5.7L V8 2WD/4WD
2014-2024 Ram 2500 6.4L V8 2WD/4WD
2014-2024 Ram 2500 6.7L Cummins Turbo Diesel 2WD/4WD
2025 Ram 2500 (All Engines) 2WD/4WD

Fitment Notes

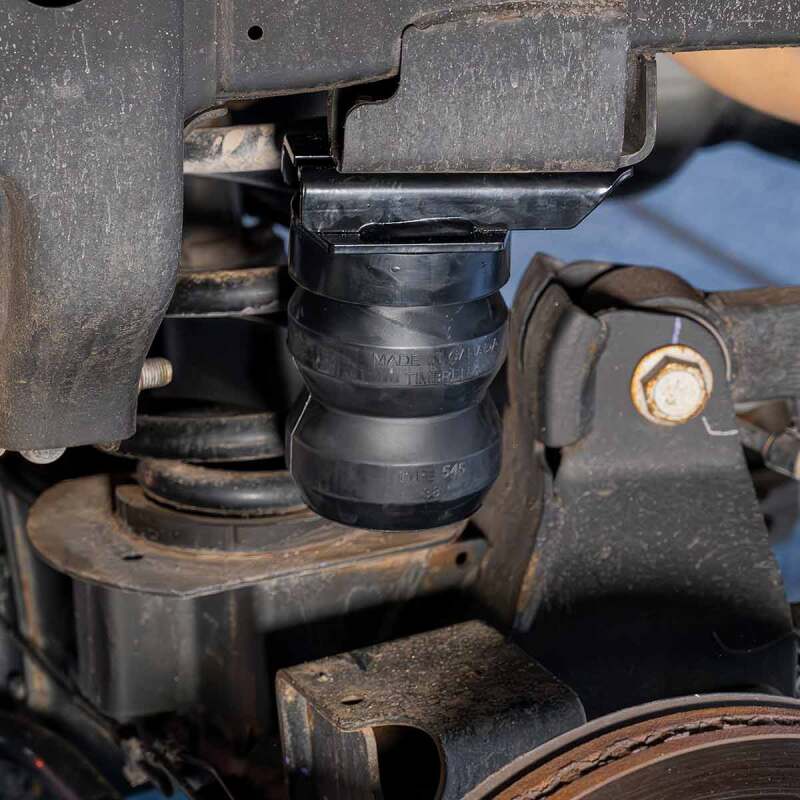

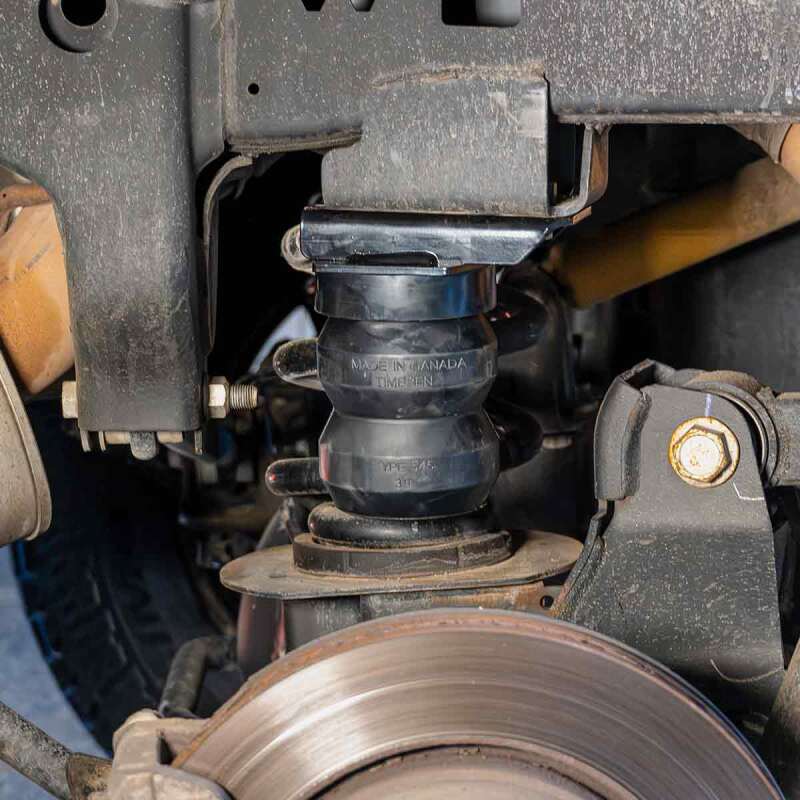

• Rear axle application - replaces factory bump stops
• Fits both 2WD and 4WD pickup truck models
• Works with factory coil spring rear suspension
• Does NOT increase GVWR - never exceed manufacturer's gross vehicle weight rating
• Designed gap of ¬Ω" to 1¬Ω" between rubber spring and axle ensures comfortable unloaded ride

Features

• Aeon hollow rubber springs with progressive spring rate
• Automatically adjusts to uneven loads and road conditions
• Eliminates rear suspension sag when towing or hauling
• Controls trailer sway and reduces body roll
• Absorbs road shocks and prevents bottoming out
• Zero maintenance - no air lines, fittings, compressors, or leaks
• Independent left/right operation for off-center load support
• Laser-cut steel brackets with black powder coat finish

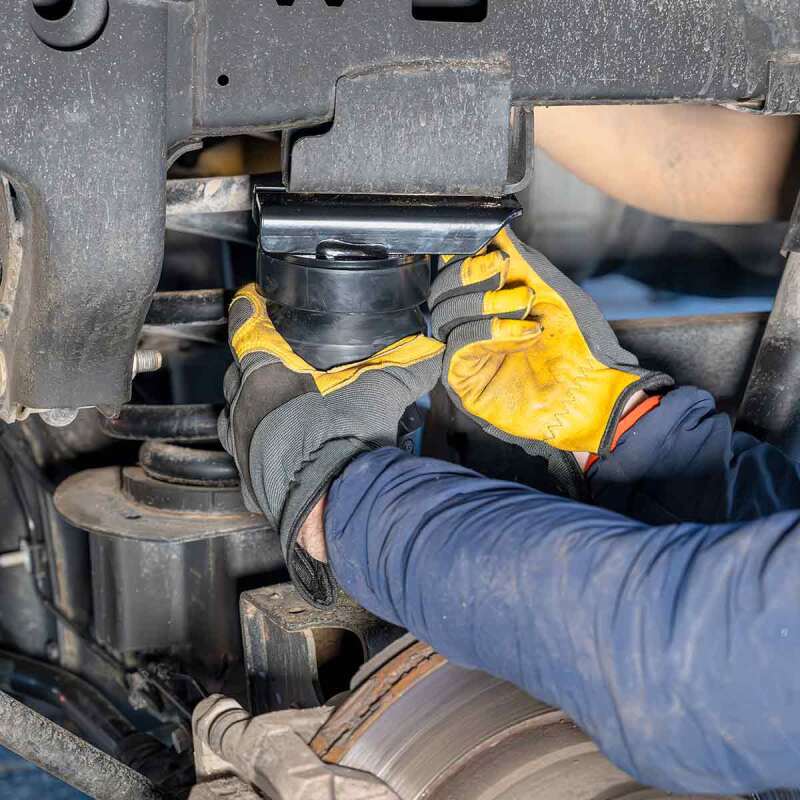

• No drilling required - installs in approximately 30 minutes
• ISO 9001 certified manufacturing

Specifications

• Brand: Timbren
• Part Number: DR2500D
• Product Line: SES (Suspension Enhancement System)
• Type: Rear Suspension Helper Springs
• Position: Rear Axle
• Load Capacity: 8,600 lbs (per pair)
• Spring Material: Aeon Hollow Rubber
• Spring Rate: Progressive
• Bracket Material: Laser-Cut Steel
• Bracket Finish: Black Powder Coat
• Installation: Bolt-On (No Drilling)
• Dimensions: 9.3" D x 7.0" W x 5.3" H
• Weight: 9.25 lbs
• Quantity: Complete Rear Kit (Left and Right)

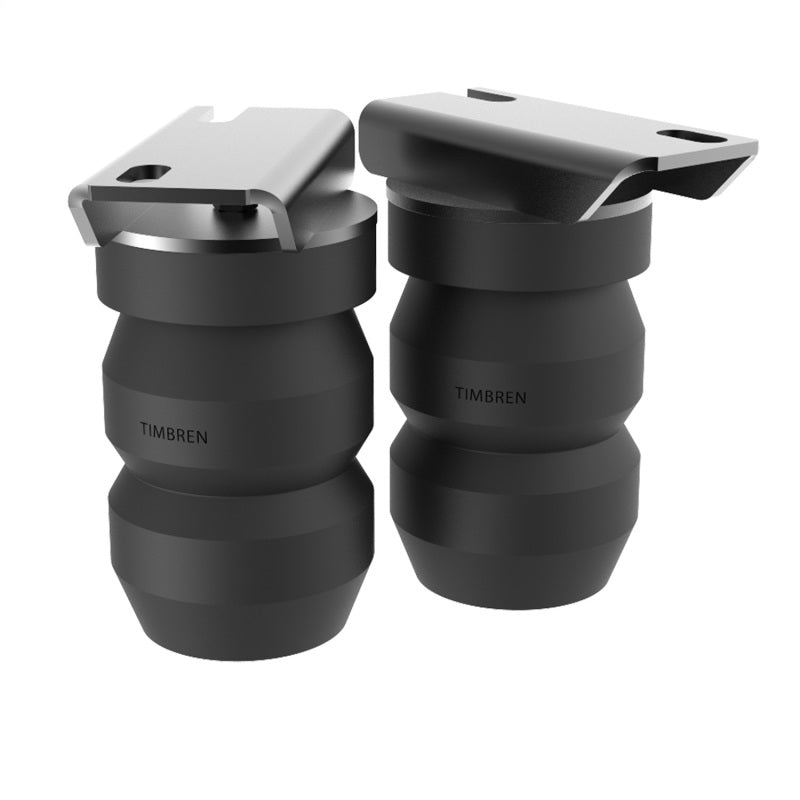

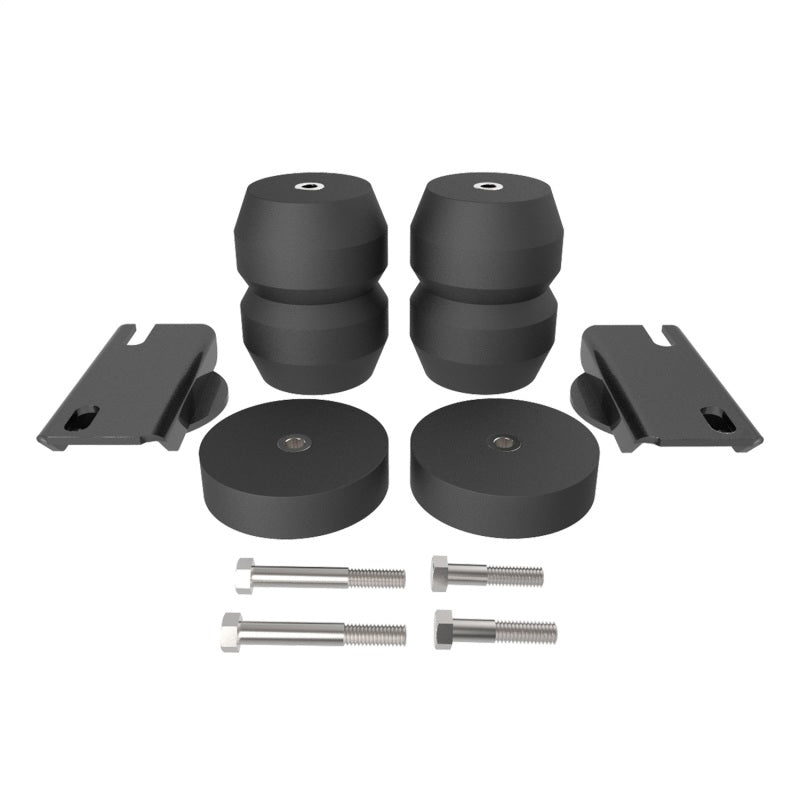

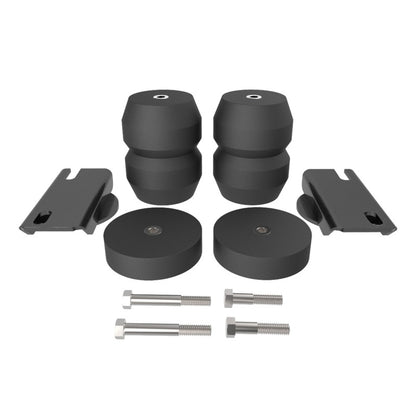

Included Components

• Aeon hollow rubber springs (2)
• Black powder-coated steel mounting brackets (2)
• Complete mounting hardware
• Installation instructions

Product Description

The Timbren DR2500D Suspension Enhancement System eliminates rear sag, sway, and instability when towing or hauling heavy loads in your Ram 2500. The patented Aeon hollow rubber springs deliver a progressive spring rate that automatically stiffens under load to keep your truck level without affecting the comfortable unloaded ride. Unlike air bag systems requiring compressors and maintenance, the Timbren SES is a true set-it-and-forget-it solution with zero post-installation upkeep. Rated at 8,600 lbs capacity, installation takes approximately 30 minutes with basic hand tools and no drilling. Backed by Timbren's lifetime warranty and 100-day money-back guarantee.
