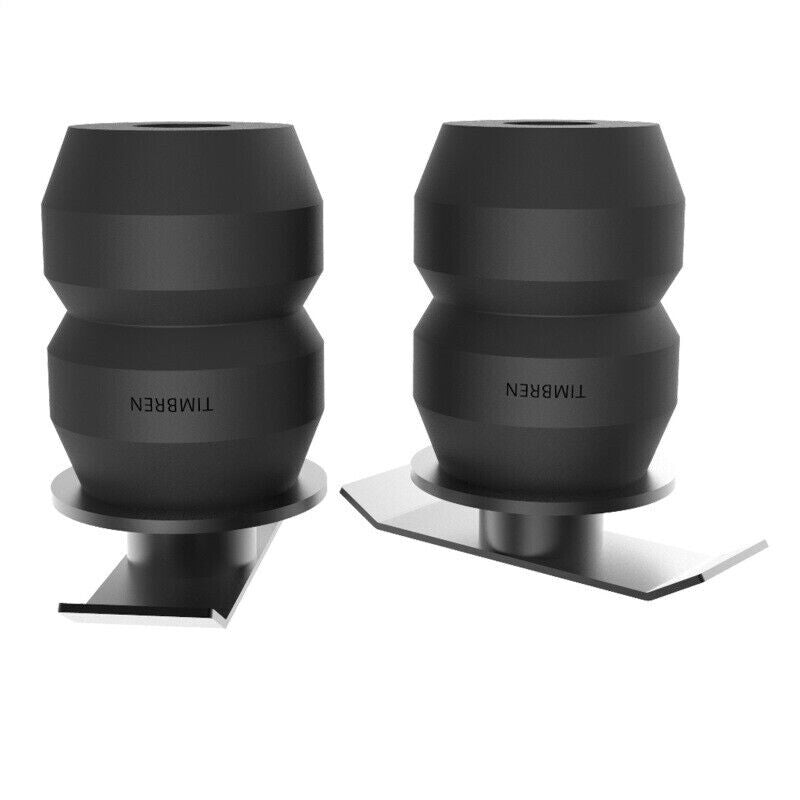

Timbren NRTTN SES Rear Suspension Enhancement System for 04-24 Nissan Titan 4WD

Vehicle Fitment

2004-2024 Nissan Titan 4WD (First Generation A60 Platform)

Fitment Notes

• For 4WD models only
• Does NOT fit Titan XD - see NRTTN-P2 or NRTTNA for Titan XD applications
• Does NOT fit PRO-4X models with frame-mounted bumpstops - see NRTTNB
• Replaces factory jounce stop on frame
• U-bolt clamped installation on leaf spring pack
• Requires ¬Ω" to 1¬Ω" gap between rubber spring and frame for proper unloaded ride quality
• Does not require drilling - bolt-on installation

Features

• SES (Suspension Enhancement System) rear helper spring kit
• Eliminates rear end sag when towing or hauling heavy loads
• Controls trailer sway in crosswinds and passing situations
• Reduces body roll during cornering
• Prevents bottoming out on rough roads
• Progressive spring rate - rubber springs push back harder as load increases
• Patented Aeon hollow rubber spring technology
• Automatically adjusts to uneven loads and road conditions
• Maintains comfortable ride quality when unloaded
• No air lines, fittings, compressors, or gauges to maintain
• Zero post-installation maintenance required
• Laser-cut steel brackets with precision bends
• Powder-coated finish for corrosion resistance
• DIY installation in under 30 minutes with basic hand tools
• Works with existing leaf springs
• Keeps vehicle level for improved headlight aim and steering
• Made in North America

Specifications

• Brand: Timbren
• Part Number: NRTTN
• Product Line: SES (Suspension Enhancement System)
• Application: Rear Suspension
• Kit Type: Standard Kit
• Rated Capacity: 6,000 lbs (per pair)
• Spring Type: Aeon Hollow Rubber Springs
• Mounting Style: U-Bolt Clamped
• Bracket Material: Laser-Cut Steel
• Bracket Finish: Powder-Coated
• Drilling Required: No
• Installation Time: Under 30 Minutes
• Weight: 7.0 lbs
• Package Dimensions: 9.5" W x 5.5" H x 7.0" L
• Warranty: Lifetime
• UPC: 809933003146

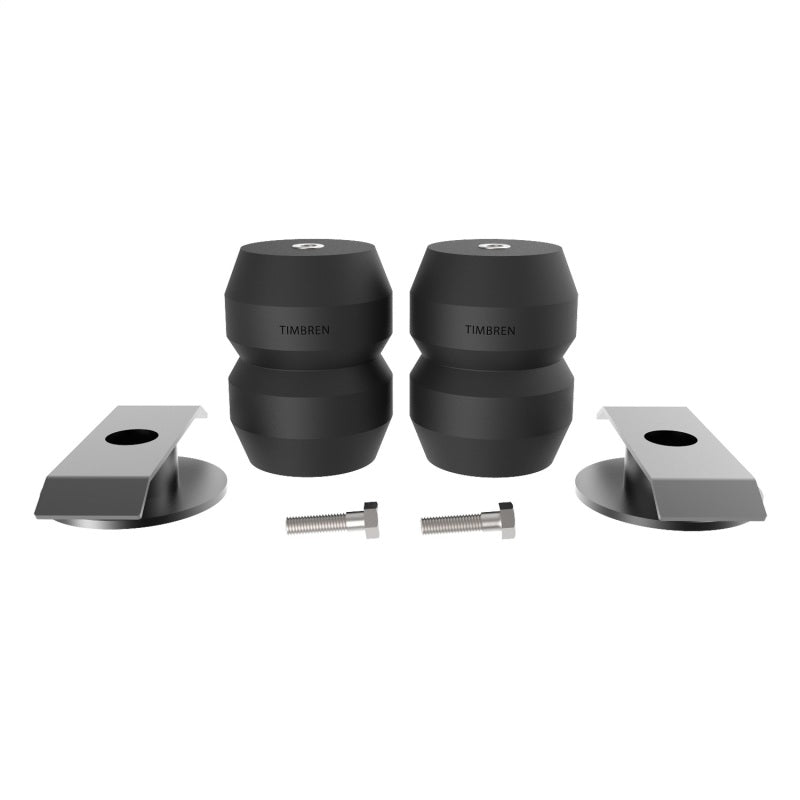

Included Components

• (2) Laser-cut steel mounting brackets
• (2) Patented Aeon SES hollow rubber springs
• All necessary mounting hardware
• Installation instructions

Product Description

The Timbren NRTTN SES (Suspension Enhancement System) is a rear helper spring kit engineered specifically for 2004-2024 Nissan Titan 4WD pickup trucks. This bolt-on system utilizes Timbren's patented Aeon hollow rubber spring technology to eliminate rear end sag, control trailer sway, and reduce body roll when towing or hauling heavy loads. The progressive spring rate design means the rubber springs automatically push back harder as weight increases, keeping your truck level at all times while maintaining a comfortable ride when unloaded. Unlike air bag systems, there are no air lines, fittings, compressors, or gauges to install or maintain - simply bolt on the kit and enjoy trouble-free suspension enhancement for the life of your vehicle. The laser-cut steel brackets are precision bent and powder-coated for a quality fit and long-lasting durability. Installation requires no drilling and can be completed in under 30 minutes using basic hand tools. The system replaces the factory jounce stop and mounts via the existing U-bolts on the leaf spring pack. For optimal performance, maintain a ¬Ω" to 1¬Ω" gap between the rubber spring and frame to ensure proper unloaded ride quality. Backed by Timbren's lifetime warranty and 100-day money back guarantee.
