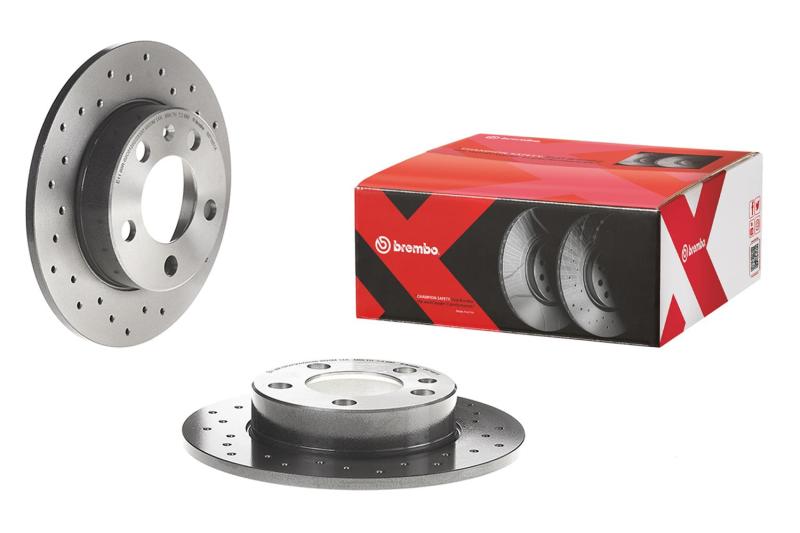

Brembo 09.5509.1X Front Xtra Cross Rotor for 90-05 Acura Integra/Honda Civic

Vehicle Fitment

• 1990-2001 Acura Integra (All trims RS / LS / GS / GS-R / Type R / Special Edition, 1.8L B18)
• 1990-2005 Honda Civic (All trims with 262mm front rotor)
• 1993-1997 Honda Civic del Sol (All trims with 262mm front rotor)
• 2007-2008 Honda Fit (Sport)

Fitment Notes

• Front axle only
• Sold individually -- 2 required per vehicle
• 262mm rotor diameter -- verify against existing rotor before ordering
• Fastening screws included
• ECE-R90 type-approved
• OE cross-reference: 45251-SK7-A00 / SK7-A10 / SK7-J00 / SR0-A00 / SR0-A10 / ST3-E10
• European applications include Lotus Elise, MG ZR / ZS, Rover 200 / 25 / 400 / 45, Honda Civic IV-VIII, CRX II / III
• No modifications required for installation

Features

• Brembo Xtra Line drilled performance design
• Cross-drilled braking surface
• UV-painted anti-corrosion coating
• High-carbon grey cast iron
• Ventilated construction
• Improved cooling
• Greater fade resistance
• Improved initial bite
• Superior wet-weather braking
• Higher friction coefficient
• Self-cleaning pad-scraping action
• Sport appearance
• ECE-R90 type-approved
• Direct OE replacement -- no modifications
• Fastening screws included

Specifications

• Series: Brembo Xtra Line
• Position: Front
• Quantity: Sold individually
• Type: Drilled, ventilated
• Diameter: 262mm
• Thickness: 21mm
• Minimum thickness: 19.5mm
• Height: 45mm
• Centering: 64mm
• Number of bolt holes: 4
• Tightening torque: 108Nm
• Material: High-carbon grey cast iron
• Surface treatment: UV coated
• Certification: ECE-R90 / UNECE R 90
• EAN: 8020584212394

Included Components

• 1x Brembo Xtra cross-drilled front brake rotor
• Fastening screws

Product Description

The Brembo 09.5509.1X is an Xtra Line cross-drilled, UV-coated, ventilated front brake rotor engineered for the 1990-2001 Acura Integra, 1990-2005 Honda Civic, 1993-1997 Civic del Sol, and 2007-2008 Honda Fit Sport -- covering every B-series and D-series Acura/Honda chassis equipped with the 262mm front rotor. The Brembo Xtra Line is the drilled performance tier in Brembo's aftermarket lineup, sitting above the OE-equivalent Prime and alongside the grooved Max and TY3-grooved Sport. Drilled holes across the braking surface improve cooling, accelerate gas expulsion, and produce a "scraping" effect that continuously cleans the pad face for higher friction coefficient and stronger initial bite -- particularly noticeable in wet weather, where the holes interrupt the water film that builds on a smooth rotor surface.

Each rotor is cast from high-carbon grey cast iron and finished with Brembo's signature UV-painted anti-corrosion coating that exceeds OE corrosion standards while delivering the sporty, aggressive Brembo look. Dimensions: 262mm diameter, 21mm thickness (19.5mm minimum), 45mm height, 4 bolt holes, 64mm centering, 108Nm tightening torque. ECE-R90 / UNECE R 90 type-approved for road use throughout Europe and globally. Fastening screws included. Sold individually -- order quantity 2 to cover the full front axle. No modifications required for installation. Pair with Brembo P28023N or P28056N Xtra ceramic pads (or order as complete kits KTX0005 / KTX0129) for the full matched Brembo Xtra brake performance package.
