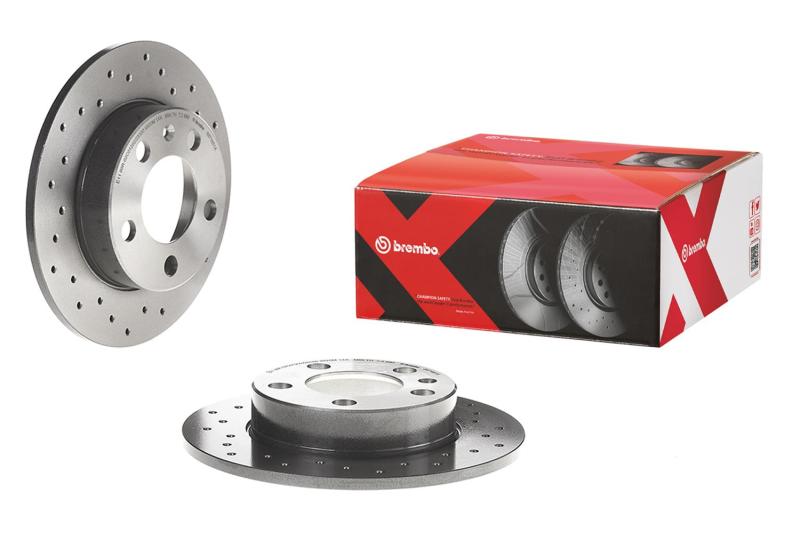

Brembo 09.7701.1X Xtra Drilled Front Brake Rotor for 99-06 BMW 323i/323Ci/325i

Vehicle Fitment

• 2000-2006 BMW 323Ci (E46) 2.5L
• 1999-2005 BMW 323i (E46) 2.5L
• 2001-2006 BMW 325Ci (E46) 2.5L
• 2001-2005 BMW 325i (E46) 2.5L
• 2001-2005 BMW 325xi (E46) 2.5L
• 2001-2005 BMW 325i Sport Wagon (E46) 2.5L
• 2001-2005 BMW 325xi Sport Wagon (E46) 2.5L
• 1999-2000 BMW 328i (E46) 2.8L
• 2000 BMW 328Ci (E46) 2.8L
• 1999-2002 BMW Z3 2.5L / 2.8L / 3.0L (300mm rotor applications)
• 2003-2005 BMW Z4 2.5i / 3.0i (E85)

Fitment Notes

• Front axle -- sold individually (need 2 per vehicle)
• 300mm diameter -- verify rotor size before ordering
• Does NOT fit E46 M3 or Z4 M
• OE#: 34111164539, 34116757526, 34116766224, 34116855152
• Companion rear rotor: 09.7702.1X
• Companion front pads: Brembo P06024N (ceramic)
• Includes fixing screw kit

Features

• Brembo Xtra cross-drilled performance brake rotor
• Drilled holes improve cooling and fade resistance
• Greater grip in initial braking stages
• UV coating -- corrosion protection and sporty look
• High carbon cast iron -- reduces noise and vibration
• ECE-R90 homologated
• Meets or exceeds OE specifications

Specifications

• Part Number: 09.7701.1X
• Brand: Brembo
• Series: Xtra
• Type: Cross-drilled ventilated front brake rotor
• Position: Front
• Diameter: 300mm (11.81")
• Thickness: 22mm
• Min Thickness: 20.6mm
• Hat Height: 52mm
• Center Bore: 79mm
• Bolt Holes: 5
• Rotor Type: Ventilated
• Material: High carbon cast iron
• Finish: UV coated
• Tightening Torque: 120 Nm
• Certification: ECE-R90
• EAN: 8020584212509
• Quantity: Sold individually

Included Components

• 1x Brembo Xtra cross-drilled front brake rotor
• Fixing screw kit

Product Description

The Brembo 09.7701.1X is an Xtra series cross-drilled front brake rotor for the BMW E46 3-Series (323i, 323Ci, 325i, 325Ci, 325xi, 328i, 328Ci) and E85 Z4 (2.5i, 3.0i) with the 300mm front brake setup. The Xtra line features precision-engineered drillings on the braking surface designed to improve cooling, generate greater fade resistance, and provide enhanced grip in the initial stages of braking. High carbon cast iron construction minimizes noise and vibration while delivering maximum performance and driving comfort.

The UV coating provides corrosion protection across all surfaces including the braking plate and hub area, maintaining a clean, sporty appearance even after extended use. ECE-R90 homologated for safety compliance across the entire Brembo Xtra range. Sold individually -- two rotors required per vehicle. Includes a fixing screw kit for straightforward installation. For optimal braking performance, replace rotors and pads together -- pair with Brembo P06024N ceramic front pads. Companion rear rotor is 09.7702.1X.
