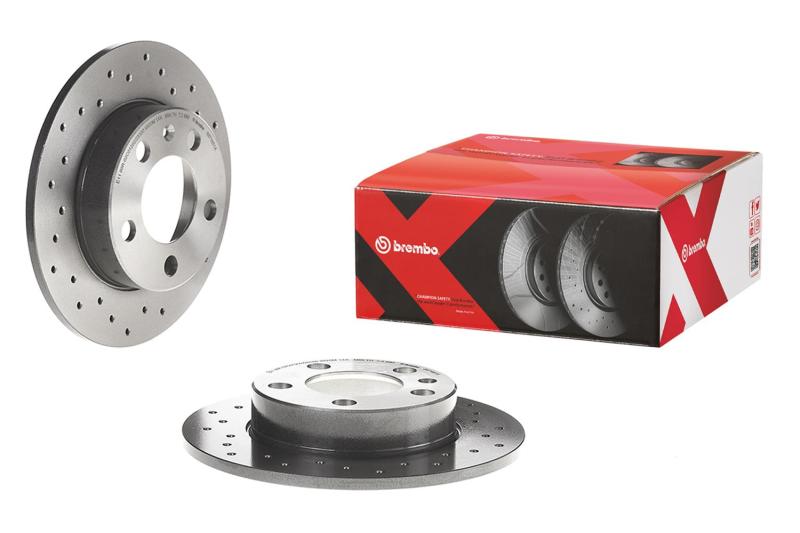

Brembo 09.7812.2X Xtra Drilled Front Rotor for 05-14 Impreza/15-17 WRX STI

Vehicle Fitment

• 2005-2014 Subaru Impreza 2.5L AWD (GM-GR chassis)
• 2015-2017 Subaru WRX STI 2.5L AWD (VA chassis)
• 2019-2020 Toyota 86 2.0L NA RWD (Hakone Edition with Brembo)

Features

• Cross-drilled Xtra design for enhanced cooling and degassing
• UV corrosion-resistant coating across entire rotor
• High-carbon cast iron construction to reduce noise and vibration
• Vented (PVT) design to dissipate heat efficiently
• Drilled holes aid wet performance and pad bite
• ECE-R90 homologation for street legality
• Visible part number and min thickness marking
• Includes fixing hardware for plug-and-play installation

Specifications

• Diameter: 326 mm; Height: 53 mm
• Nominal thickness: 30 mm; Min thickness: 28.5 mm
• Center bore: 58 mm; Bolt pattern: 5x114.3 mm
• Tightening torque: 100 Nm
• Cross-drilled PVT vented, solid 1-piece design
• Sold individually -- 1x per box

Included Components

• 1x 09.7812.2X Xtra Cross-Drilled Front Rotor (vented)
• 1x Fixing hardware kit (screws)

Product Description

The Brembo 09.7812.2X Xtra Front Rotor is engineered for performance-oriented Subaru and select Toyota vehicles. Featuring a 326 mm cross-drilled surface and vented high-carbon iron design, this rotor enhances heat dissipation, braking response, and wet performance--ideal for spirited driving without compromising street comfort. The full UV coating offers excellent corrosion protection while preserving OEM aesthetics.

This rotor installs directly onto the front hubs of AWD Impreza and STI models and select Hakone Edition Toyota 86s equipped with Brembo brakes. It includes required fixing hardware for a seamless bolt-on upgrade. ECE-R90 certification ensures legal street use, and visible markings help with inspection and bedding. Sold individually--pair with matching front or rear rotors for optimal performance and balanced brake system function.
