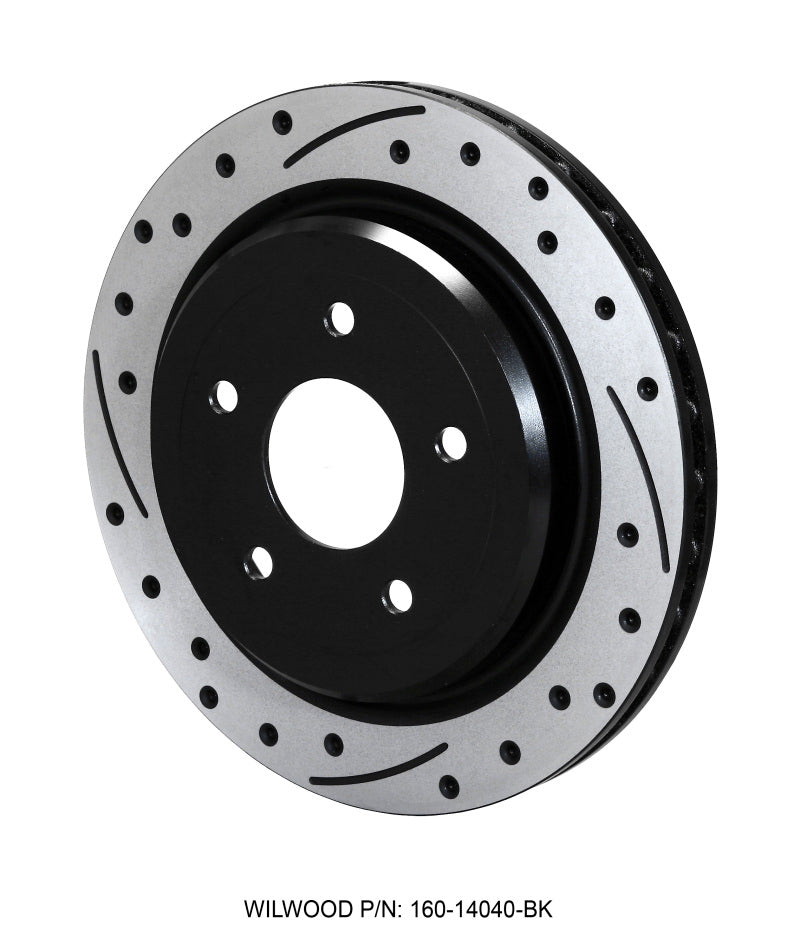

Wilwood 160-14040-BK SRP Drilled RR Rotor/ Hat for 97-04/05-13 Vette C5/C6

Vehicle Fitment

• 1997-2004 Chevrolet Corvette (C5, Rear Passenger, 305 mm SRP rotor)
• 2005-2013 Chevrolet Corvette (C6, Rear Passenger, 305 mm SRP rotor)

Features

• SRP ("Sport Race Performance") drilled and slotted design for cooling and pad cleaning
• Black electro-coat finish for corrosion resistance
• Directional cross-drill pattern improves heat dissipation
• Face slots reduce pad glaze and irregular pad buildup
• Precision machining to tight tolerances for flatness and run-out
• Ventilated iron rotor for enhanced cooling under load
• Integrated hat simplifies installation on compatible hubs
• High-tech cosmetic appearance with performance function

Specifications

• Rotor Outside Diameter: 12.01 in (305 mm)
• Width: 1.03 in
• Rotor Bolt Pattern: 5 x 4.75 in
• Vented iron construction
• Offset: 0.59 in
• Stud Diameter: 0.52 in
• Black electro-coat finish (wears off rotor face during bedding)
• Passenger side (R/H) configuration

Included Components

• 1x SRP Drilled Performance Rotor (12.01", Black)
• 1x Aluminum Hat (Matched for Rear Passenger Side)

Product Description

The Wilwood 160-14040-BK SRP Drilled Performance Rear Rotor & Hat is an upgrade rotor assembly designed specifically for rear passenger side applications on C5 and C6 Corvette models. Its drilled and slotted surface enhances heat dissipation during spirited driving and helps maintain consistent pad contact by reducing glaze and debris buildup. The black electro-coat provides corrosion resistance and an aggressive appearance, although this finish typically wears off the braking surface during bedding.

This rotor and hat assembly is precision machined for low run-out and flatness, ensuring smooth braking performance with OEM or performance pads. It fits 1997-2004 Corvette C5 and 2005-2013 Corvette C6 vehicles on the rear passenger side (right-hand). Installation integrates with existing hubs that accept the 5x4.75 in bolt pattern, making it a straightforward upgrade for enthusiasts looking for improved rotor cooling and brake feel without a full big-brake kit.
