DBA DBA53919BLKS 5000 T3 Slotted Front Rotor 400mm for 18-21 Jeep SRT/Trackhawk

Vehicle Fitment

• 2018-2021 Jeep Grand Cherokee Trackhawk (WK2, 6.2L Supercharged V8, BR7 Brake Package)
• 2018-2021 Jeep Grand Cherokee SRT (WK2, 6.4L V8, BR7 Brake Package)

Fitment Notes

• BR7 brake package required -- verify brake code before ordering
• Sold individually -- 2 required per vehicle (front axle)
• Replaces OEM Mopar part # 68305562AB
• Black aluminum hat -- replacement flat disc rings available separately
• Position: Front

Features

• T3 bi-directional slot design -- 48 precision CNC machined tri-symmetrical slots
• 2-piece composite construction -- high carbon cast iron ring with 6061-T6 aerospace aluminum hat
• DBA Aluma-Lite hat reduces unsprung weight
• NAS bolts and crimp nuts -- National Aerospace Standards fasteners
• Kangaroo Paw vane design -- up to 20% better heat dissipation
• Thermal Stability Profiling (TSP) -- heat treatment for increased stability and durability
• CBN (Cubic Boron Nitride) machine turned finish -- minimizes disc thickness variation
• Thermographic Heat Paint (TGHP) -- temperature threshold colour change indicators
• Bi-directional slotting -- universal left/right fitment
• Anti-rust paint on non-friction surfaces
• Replacement disc rings available separately for cost-effective future servicing

Specifications

• Series: 5000 T3
• Position: Front
• Outer Diameter: 400 mm (15.75")
• Disc Thickness: 36 mm (1.42")
• Minimum Thickness: 36 mm
• Height: 54.5 mm
• Centering Diameter: 72 mm
• Number of Holes: 5
• Pitch Circle Diameter: 127.00 mm
• Vane Design: Kangaroo Paw (KP)
• Surface Design: Slotted (T3 bi-directional)
• Hat Material: 6061-T6 Aerospace Aluminum -- anodized black
• Ring Material: High carbon alloyed cast iron
• Quantity: Sold individually (each)
• Warranty: 12 months / 20,000 km / 12,000 miles
• Barcode: 9316391458643

Included Components

• 1x Front brake rotor assembly (hat and disc ring assembled)

Product Description

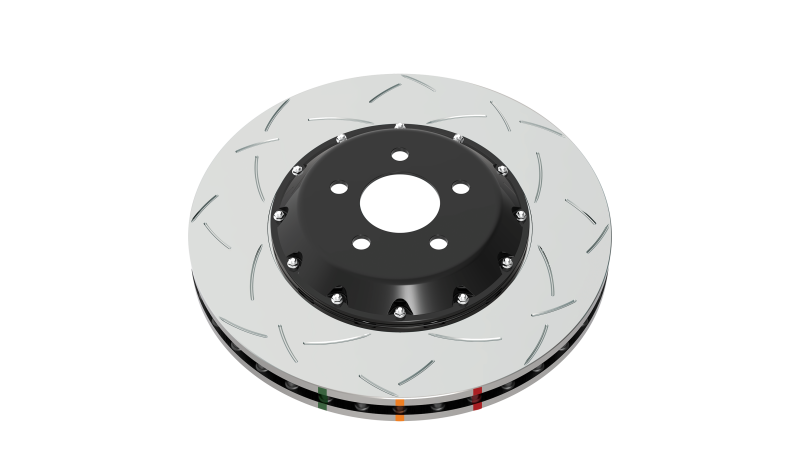

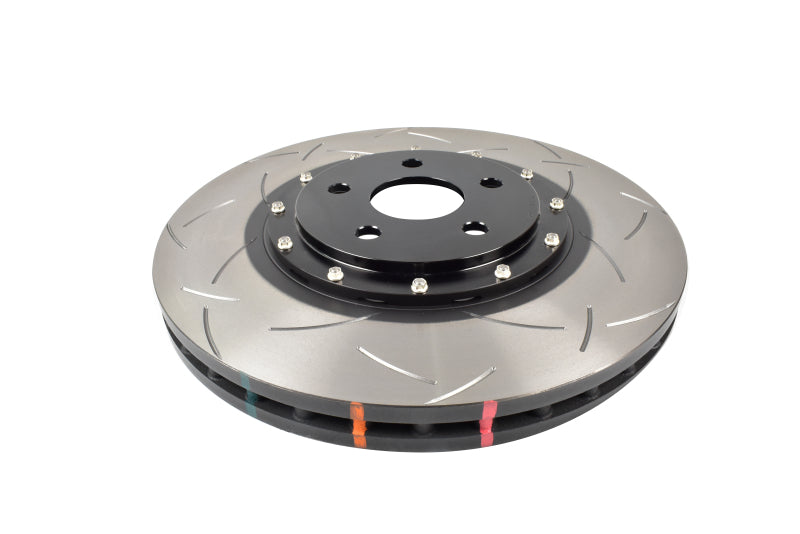

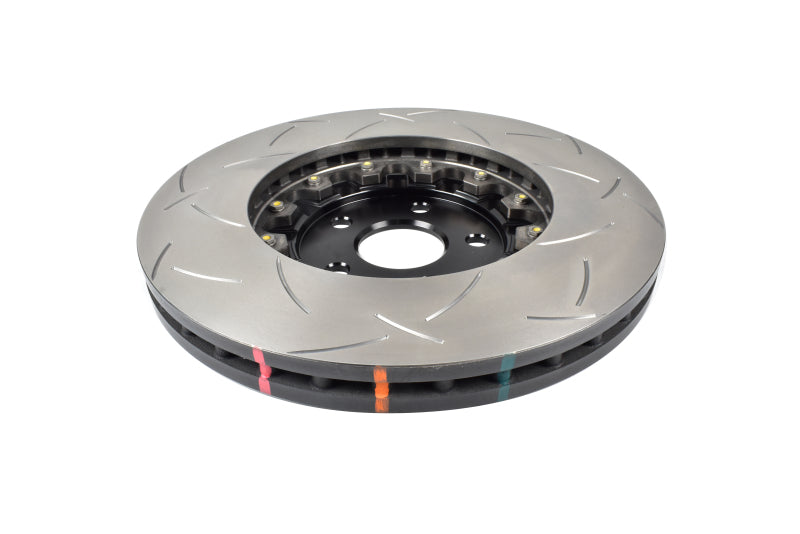

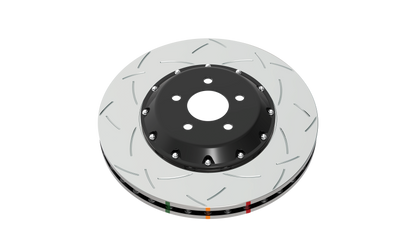

The DBA DBA53919BLKS is a 5000 Series T3 two-piece slotted front brake rotor engineered for the 2018-2021 Jeep Grand Cherokee Trackhawk and SRT equipped with the BR7 brake package. Built around a high carbon alloyed cast iron disc ring paired with an anodized black 6061-T6 aerospace aluminum hat, the 5000 Series design reduces unsprung rotational mass compared to conventional one-piece rotors while improving thermal management through the aluminum hat's reduced heat transfer pathway to the wheel hub. The hat and ring assembly is held together by National Aerospace Standards (NAS) bolts and crimp nuts, delivering maximum strength at minimal weight. The T3 slot pattern consists of 48 precision CNC machined tri-symmetrical slots arranged bi-directionally, building on DBA's T2 slot foundation with additional exit points for brake pad friction dust and gases. The result is a quieter, more responsive pedal feel with improved consistency across repeated hard stops. DBA's Kangaroo Paw pillar vane design provides up to 20% greater heat dissipation versus straight-vane rotors. Thermal Stability Profiling (TSP) heat treatment realigns the microstructure of the iron for improved rotor stability under sustained heat load, while Thermographic Heat Paint indicators change color at specific temperature thresholds to assist in monitoring rotor fatigue during high-performance use. Each rotor is CBN (Cubic Boron Nitride) machine turned to minimize disc thickness variation and potential for pad knock. The DBA53919BLKS is sold individually -- two are required per vehicle. It directly replaces OEM Mopar part number 68305562AB and is compatible with the BR7 brake package only. Replacement disc rings are available separately for economical future servicing without replacing the aluminum hat.
