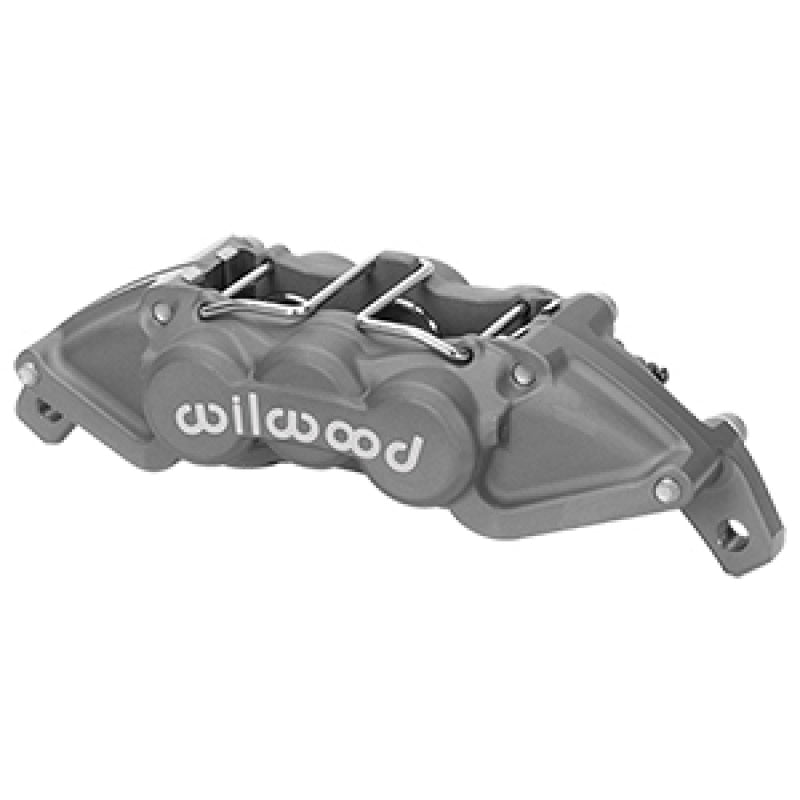

Wilwood 120-16567 UTV6 6-Piston Lug Mount Caliper LH 0.25in Rotor Anodize

Vehicle Fitment

• Universal UTV/Side-by-Side fitment - used in Wilwood big brake kits for Polaris RZR XP 1000, XP4 1000, and RS1 (2014-2023)
• Compatible with any UTV or off-road application using a 0.25 in. rotor up to 11.25 in. diameter with 8.75 in. lug mount spacing

Fitment Notes

• Left-Hand position - pairs with 120-16566 (Right-Hand) for a complete front or rear axle upgrade
• Lug mount type - requires proper bracket or caliper mount designed for 8.75 in. mount center spacing
• Designed for use with 0.25 in. (6mm) wide rotors only - rotor diameter must be between the minimum and 11.25 in. maximum
• Uses standard 7812 brake pad shape - verify pad compound selection for application
• Fits most 15 in. and larger UTV wheels when used as part of a Wilwood kit application

Features

• Differential-bore 6-piston design (1.12 / 1.12 / 1.00 in.) increases pad life and maintains optimal front-to-rear brake bias
• ASM (Advanced Structural Mesh) net forged aluminum body reduces deflection and increases clamping efficiency under load
• Stainless steel pistons resist corrosion and heat transfer in demanding off-road and UTV environments
• Anti-knock back springs prevent piston retraction from rough terrain vibration, improving pedal feel consistency
• Type III Hard Anodize finish resists bore wear, surface abrasion, and corrosion
• Engineered and manufactured in the USA (Camarillo, California)

Specifications

• Series: UTV6 Caliper
• Position: Left-Hand (LH)
• Mount Type: Lug
• Mount Center: 8.75 in.
• Mount Side: Universal
• Piston Count: 6
• Piston Bores: 1.12 in. / 1.12 in. / 1.00 in. (differential bore)
• Total Piston Area: 2.77 in²
• Piston Material: Stainless Steel
• Rotor Width: 0.25 in. (6mm) - Min: 0.19 in. / Max: 0.25 in.
• Maximum Rotor Diameter: 11.25 in. (285mm)
• Pad Type: 7812
• Pad Area: 6.36 in²
• Pad Volume: 2.1 in³
• Body Material: Forged Aluminum
• Finish: Type III Hard Anodize
• Weight: 3.2 lbs.
• Quantity: Sold individually (1 caliper)

Included Components

• 1x UTV6 Left-Hand Forged Aluminum Caliper (Type III Anodize)

Product Description

The Wilwood 120-16567 is the Left-Hand variant of the UTV6 6-piston lug mount caliper, designed specifically for the UTV and side-by-side market. The differential-bore configuration - two 1.12 in. pistons leading and one 1.00 in. piston trailing - ensures even pad wear and consistent engagement across the pad face, improving braking efficiency over equal-bore designs. The ASM net forged aluminum body is engineered to resist flex under the high clamping loads required for high-performance UTV braking, while anti-knock back springs maintain consistent pedal feel across rough terrain where vibration would otherwise push pistons back into the bore.

This caliper is used in Wilwood's matched front and rear big brake kit applications for the Polaris RZR XP 1000 platform, where it works alongside 11.25 in. dynamically mounted floating rotors for significantly increased brake torque and thermal capacity over the factory system. Sold individually - the matching Right-Hand caliper is 120-16566. Brake pads (7812 shape), rotors, and line fittings are sold separately. Also available in Black Powdercoat (120-16567-BK) and Red Powdercoat (120-16567-RD).
