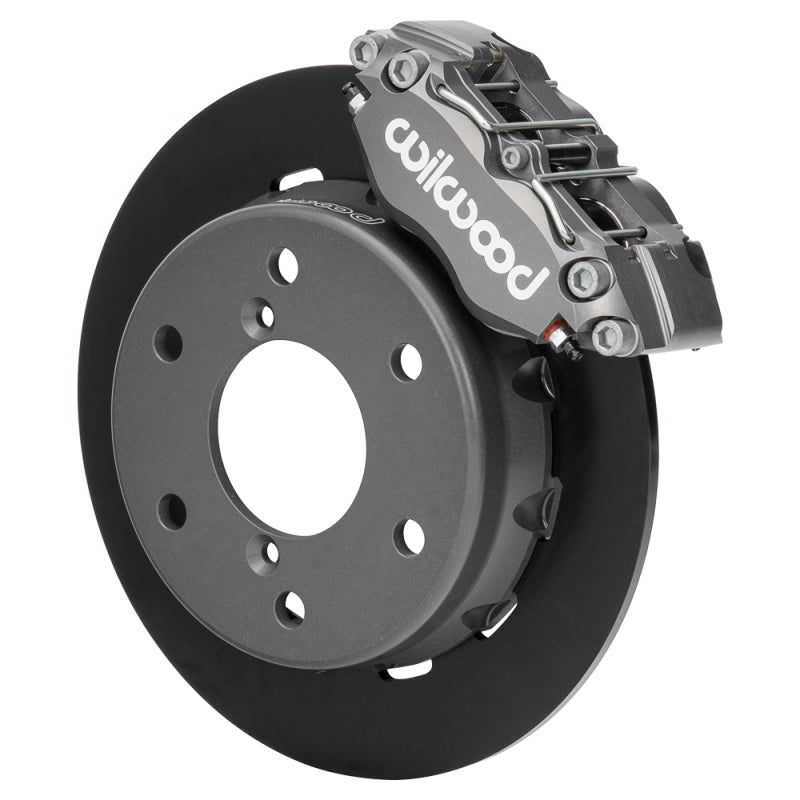

Wilwood 140-18028 Narrow DynaPro 4R Front Race Brake Kit for Can-Am Mav R

Vehicle Fitment

• 2024 Can-Am Maverick R (UTV/Side-by-Side)

Fitment Notes

• Front position only - Wilwood's matching rear race kit is a separate part number
• 6-lug configuration
• Race Kit variant - plain face rotor and anodized finish, distinct from the standard Gloss Red or Gloss Black street kits

Features

• Narrow DynaPro 4R caliper design for a compact, lightweight package
• Lug-drive rotor mounting for straightforward wheel compatibility
• Plain face rotor tuned for race applications
• BP-28 compound brake pads included as an axle set
• Dynamic mount design for consistent rotor alignment

Specifications

• Position: Front
• Rotor diameter: 11.75"
• Rotor style: Plain face, lug-drive, non-vented
• Caliper: Narrow DynaPro 4R
• Finish: Anodized (Race Kit)
• Bolt pattern: 6-lug
• Brake pad compound: BP-28 (included)

Included Components

• 2x Narrow DynaPro 4R Calipers (Anodized)
• 2x Plain Face Lug-Drive Rotors (11.75")
• BP-28 Compound Brake Pads (Axle Set)
• Mounting Hardware

Product Description

The Wilwood 140-18028 is the front Race Kit variant of Wilwood's Narrow DynaPro 4R brake system built specifically for the 2024 Can-Am Maverick R. Unlike the street-oriented Gloss Red or Gloss Black kits, this version comes with an anodized finish, a plain face rotor, and BP-28 compound pads - a setup tuned for consistent performance under sustained race conditions rather than street appearance.

The 11.75" lug-drive rotor and compact narrow caliper design keep the front end light while still delivering the stopping power needed for aggressive off-road racing. As with all of Wilwood's Maverick R kits, this is a direct, application-specific fit - no modification or spindle swap required.
