AMP Research 79109-01A Air Tank RelocationKit 19-24 RAM 2500/3500 Air Suspension

Vehicle Fitment

• 2019-2024 RAM 2500 - Crew Cab and Regular Cab; equipped with factory Active-Level Four-Corner Air Suspension (all trims where this suspension is optioned)
• 2019-2024 RAM 3500 - Crew Cab and Regular Cab; equipped with factory Active-Level Four-Corner Air Suspension (all trims where this suspension is optioned)

Fitment Notes

• This kit is ONLY required on 2019-2024 RAM 2500/3500 trucks equipped with the factory Active-Level Four-Corner Air Suspension option - RAM HD trucks with standard leaf-spring or coil-spring suspension do NOT need this kit and can proceed with a standard PowerStep installation
• Does NOT fit RAM 2500/3500 Mega Cab configurations - Mega Cab models require the separate AMP Research Air Tank Relocation Kit PN 79110-01A
• This kit must be installed BEFORE installing AMP Research PowerStep running boards on covered air-suspension-equipped RAM HD trucks - attempting to mount PowerStep brackets without relocating the air tank first will result in a fitment conflict on the frame rail
• Compatible with AMP Research PowerStep kit 76239-01A and other PowerStep / PowerStep XL kits for 2019-2024 RAM 2500/3500 - confirm the specific PowerStep kit requires this relocation kit before ordering
• After installation, the factory Active-Level Four-Corner Air Suspension system retains full functionality - the air tank is moved to a new mounting position that does not interfere with suspension operation

Features

• Resolves the fitment conflict between the factory Active-Level Four-Corner Air Suspension air tank and the AMP Research PowerStep frame rail mounting brackets on 2019-2024 RAM 2500/3500 trucks - moves the air tank to a new position on the frame that clears the PowerStep bracket mounting area
• Retains full factory air suspension functionality after installation - the air tank remains connected to all factory air lines and operates the Active-Level Four-Corner Air Suspension system exactly as before, just from its new mounting location
• Constructed from durable steel plate with a corrosion-resistant finish - engineered to withstand the same frame-rail environment as the factory air tank mounting location through all seasons and road conditions
• Simple installation requiring only basic hand tools - a 13mm wrench and socket with extension arm are the only tools needed; installation typically takes approximately 20 minutes
• No drilling required - the kit uses existing frame mounting points for the relocation bracket
• All necessary hardware for installation is included in the kit
• Backed by AMP Research's 5-year limited warranty

Specifications

• Part Type: Air suspension tank relocation bracket kit (required prerequisite for PowerStep installation on air-ride RAM HD applications)
• Material: Steel plate
• Finish: Corrosion-resistant
• Air Suspension Compatibility: Factory Active-Level Four-Corner Air Suspension (RAM 2500/3500)
• Air Suspension Retained: Yes - full functionality maintained after relocation
• Drilling Required: No
• Estimated Installation Time: Approximately 20 minutes
• Tools Required: 13mm wrench, 13mm socket with extension arm, safety glasses
• Mega Cab Compatible: No - use PN 79110-01A for Mega Cab applications
• UPC: 815410014857
• Warranty: 5-year limited

Included Components

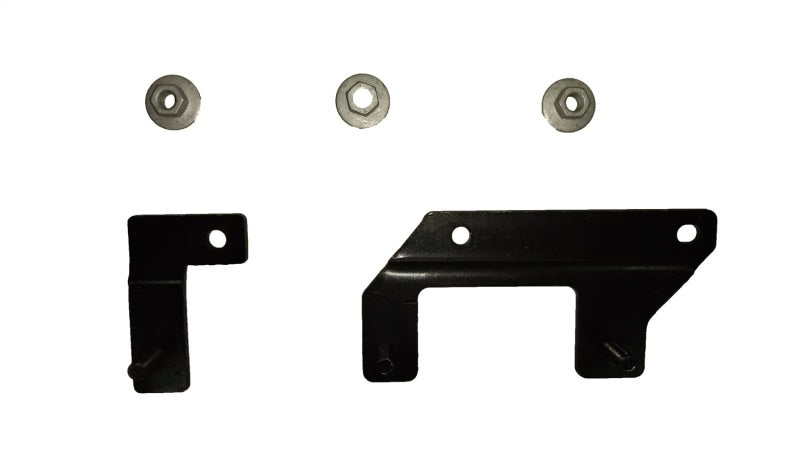

• 1x Steel relocation bracket for air suspension tank
• 1x Complete hardware kit (nuts, bolts, and fasteners for relocation)
• 1x Installation instruction sheet
• Note: AMP Research PowerStep running boards are NOT included - this kit is a prerequisite installation accessory only; the PowerStep kit must be purchased separately

Product Description

The AMP Research 79109-01A Air Tank Relocation Kit is a required prerequisite accessory for installing AMP Research PowerStep electric running boards on 2019-2024 RAM 2500 and 3500 trucks equipped with the factory Active-Level Four-Corner Air Suspension. On these trucks, the factory air suspension system includes an air tank mounted to the frame rail in a position that directly conflicts with the PowerStep running board mounting brackets - without relocating this tank first, the PowerStep cannot be physically installed.

The relocation kit solves this problem with a steel bracket that moves the air tank to a new frame-mounted position that clears the PowerStep bracket area without compromising air suspension performance. After installation, the factory Active-Level Four-Corner Air Suspension continues to operate exactly as designed - the tank remains connected to all factory air lines and functions normally from its relocated position. The relocation itself requires no drilling and only basic hand tools: a 13mm wrench, a 13mm socket with an extension arm, and safety glasses. Most installations take approximately 20 minutes.

This kit covers Crew Cab and Regular Cab configurations of the 2019-2024 RAM 2500 and 3500. Mega Cab models are not compatible with this kit - those applications require the separate PN 79110-01A Mega Cab air tank relocation kit. RAM HD trucks without the Active-Level air suspension option do not require any relocation kit and can proceed directly with a standard PowerStep installation. The 79109-01A is backed by AMP Research's 5-year limited warranty.
