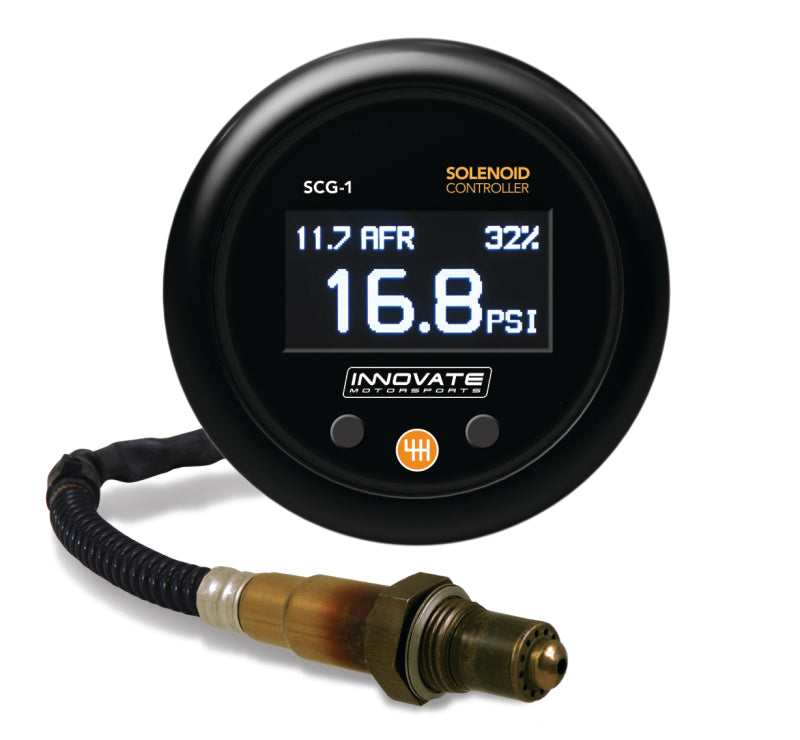

Innovate 3882 SCG-1 Solenoid Boost Controller & Wideband O2 Gauge Kit

Vehicle Fitment

• Universal - suitable for any combustion engine requiring boost control and AFR monitoring
• Compatible with gasoline, ethanol, methanol, diesel, and dual-fuel setups
• Works with standalone ECUs, data loggers, gauges, dynos, and tuning systems

Features

• All-in-one intelligent boost control and wideband air/fuel ratio gauge
• Controller and display housed in a 52mm (2 1/16") diameter gauge body
• Interchangeable faceplates & bezels: black & silver bezel, black & white faceplates included
• No PC required for configuration
• OLED user-configurable display: Boost, shift light, Air/Fuel ratio
• AFR or Lambda, inHG, PSI, kPa, or BAR selectable units
• Includes high-resolution solenoid
• 4 BAR MAP sensor, pressure range -29 inHG to 43.5 PSI (-1 to 3 BAR)
• User-programmable boost cut safety using Air/Fuel and Pressure references
• Programmable solenoid duty cycle with separate gain control function
• Peak hold function
• Patented DirectDigital™ wideband sensor control, 100% digital wideband air/fuel ratio technology
• Wideband O2 compatible with several fuel types (Leaded, Unleaded, Diesel, E85 & more)
• Ability to calibrate O2 sensor for maximum accuracy

Specifications

• Part Number: 3882
• Gauge Diameter: 52mm (2 1/16")
• Display Type: OLED
• MAP Sensor: 4 BAR, pressure range -29 inHG to 43.5 PSI (-1 to 3 BAR)
• Solenoid: High-resolution, included
• O2 Sensor: Bosch LSU 4.9 wideband sensor
• Power Supply: 12V DC
• Operating Temperature: Suitable for under-hood / engine bay conditions
• Programming Interface: No PC required for configuration

Included Components

• 1x SCG-1 gauge/controller unit
• 1x Bosch LSU 4.9 wideband O2 sensor
• 1x 8 ft sensor cable
• 1x 1" weld-on exhaust bung
• 1x solenoid with bracket
• 1x vacuum hose kit
• 1x black/silver bezel
• 1x black/white faceplate
• 1x serial programming cable
• 1x installation manual

Product Description

The Innovate Motorsports 3882 SCG-1 is a revolutionary approach to boost control that integrates an advanced standalone boost controller with Innovate's industry-leading DirectDigital™ wideband air/fuel ratio technology. Instead of repackaging the same boost control technology that has been used for decades, Innovate chose to pair their advanced O2 sensor control technology with an all-new, proprietary solenoid control that provides superior boost control accuracy, response, and safety.

The SCG-1 utilizes 100% digital wideband air/fuel ratio technology to provide real-time feedback to the SCG-1. This air/fuel information is displayed on an integrated OLED display along with manifold pressure and wastegate duty status. The air/fuel ratio information is also used to provide a user-definable boost cut that enhances the safety margin over most competitors' offerings that only rely on overboost threshold.

The controller and display are housed in a compact 52mm (2 1/16") diameter gauge body, making installation straightforward. The unit includes interchangeable faceplates and bezels, allowing customization to match your vehicle's interior. With no PC required for configuration, the SCG-1 offers user-friendly functionality without the need for additional software.
