Turbosmart TS-0223-1277 Kompact EM Plumb Back BOV for Toyota GR Corolla/Yaris

Vehicle Fitment

• 2020-2026 Toyota GR Yaris (XP210), 1.6L Turbo I3
• 2023-2026 Toyota GR Corolla, 1.6L Turbo I3
• 2015-2017 Lexus NX200t, 2.0L Turbo I4
• 2018-2021 Lexus NX300, 2.0L Turbo I4
• 2016-2017 Lexus IS200t, 2.0L Turbo I4
• 2018-2020 Lexus IS300, 2.0L Turbo I4
• 2016-2017 Lexus RC200t, 2.0L Turbo I4
• 2018-2020 Lexus RC300, 2.0L Turbo I4

Fitment Notes

• VR17 valve spec
• GR Yaris/Corolla confirmed directly for this PN
• Lexus models share the 8AR-FTS 2.0L turbo engine
• CARB restricted, cannot ship to California
• Plumb Back version, fully recirculating
• Dual Port version (TS-0223-1077) also available
• True plug and play, no adapters needed

Features

• Direct OEM diverter valve replacement
• Retains full OE control
• Patent-pending pressure control
• Integrated high-temp solenoid valve
• Billet aluminum construction
• High-temperature O-rings
• Boost-Balance Valve design
• Positive seal O-ring on piston face
• Actuates via pressure differential
• Fast response, lightest spring rate
• Minimizes turbo leakage
• Improved thermal performance
• No audible blow-off sound

Specifications

• Configuration: Plumb Back / Re-Circ
• Valve spec: VR17
• Construction: Billet aluminum
• Weight: 0.8 lb

Included Components

• 1x Kompact EM Blow-Off Valve

Product Description

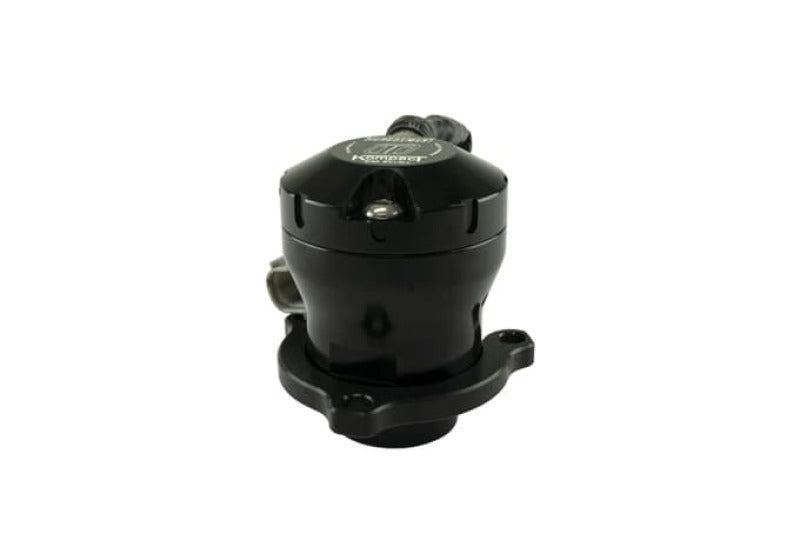

The Turbosmart TS-0223-1277 is a Kompact EM Plumb Back blow-off valve built on the VR17 valve spec, a true plug-and-play upgrade for the Toyota GR Yaris and GR Corolla's factory electronic diverter valve, sharing its architecture with the 8AR-FTS 2.0L turbo engine used across several Lexus IS, RC, and NX models. Unplug and unbolt the OE valve, bolt this one in its place -- no adapters, hoses, or extra assembly required, and the valve retains complete OE control over its own operation.

The Kompact EM series takes Turbosmart's motorsport-proven billet valve technology and adds an onboard proprietary solenoid with internal pressure control channels, eliminating the reference hoses and separate solenoids that plague other upgraded diverter valves. A Boost-Balance Valve design means the seal actually improves as boost increases, backed by a positive seal O-ring on the piston face and full billet aluminum construction for near-indestructible reliability.

This Plumb Back configuration is fully recirculating, venting only back into the intake for a quiet, factory-like operation with none of the atmospheric "whoosh" -- ideal for hybrid or larger-flowing turbos running an OE electronic diverter valve, where minimizing leakage lets the car reach target boost without stressing the turbo or wastegate. A Dual Port version (TS-0223-1077) is also available for those who want some audible blow-off. CARB restricted -- not for sale or shipment to California.
