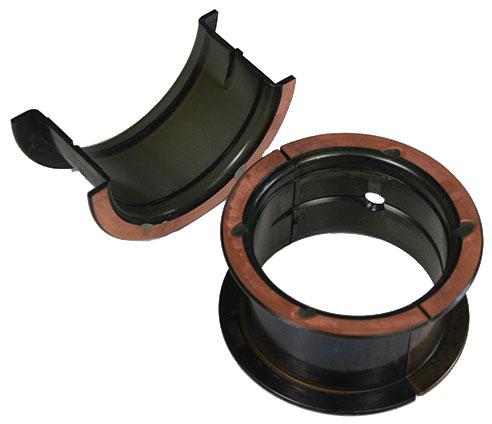

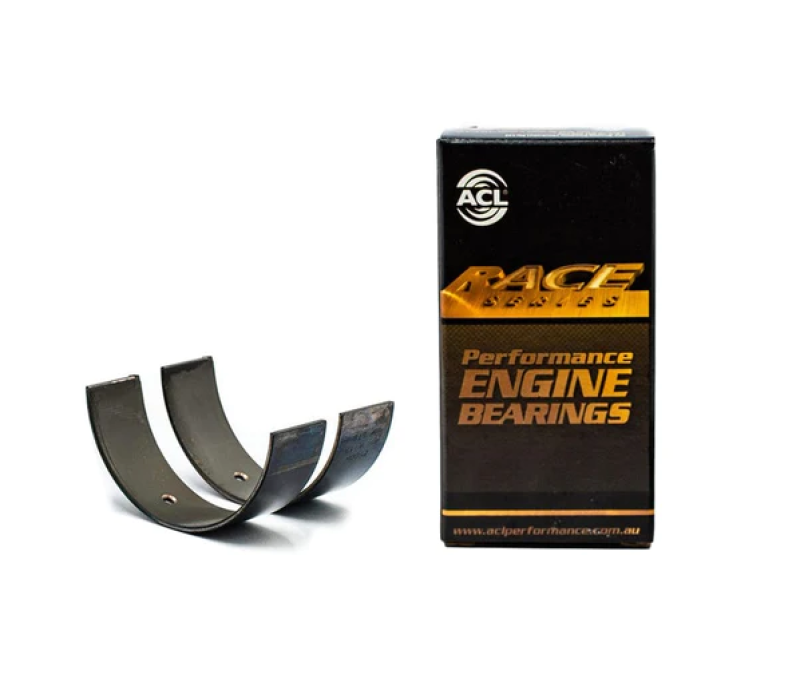

ACL 7M8103H-.25 High Performance Main Bearing Set for 1991-2005 Toyota/Lexus 2JZ

Vehicle Fitment

• 1991-2005 Toyota Supra (2JZ-GTE, 2JZ-GE)
• 1991-2005 Lexus SC300 (2JZ-GE)
• 2001-2005 Lexus IS300 (2JZ-GE)
• 2001-2005 Lexus GS300 (2JZ-GE)
• 1991-2005 Toyota Aristo (2JZ-GTE)
• 1991-2005 Toyota Soarer (2JZ-GTE)

Features

• Trimetal construction with copper, tin, and lead layers for enhanced durability
• Hardened steel backs on all bearings to improve support and retention
• Increased crush for improved bearing retention
• Elimination of flash plating on the back of the bearings to improve heat transfer
• Designed for high-RPM and track applications
• Direct-fit replacement for OEM main bearings
• Available in .25mm oversized size for engines requiring additional clearance
• Precision manufacturing to ensure consistent wall thickness and crush

Specifications

• Size: .25mm oversize
• Material: Trimetal (Copper, Tin, Lead)
• Coating: None
• Max shaft size: 2.441" (62.001 mm)
• Min shaft size: 2.4403" (61.984 mm)
• Max tunnel size: 2.5998" (66.035 mm)
• Min tunnel size: 2.5992" (66.02 mm)
• Wall thickness at crown: 0.0789" (2.004 mm)
• Groove type: 3/4 groove for optimal oil flow

Included Components

• 1x Upper main bearing half
• 1x Lower main bearing half
• 1x Upper main bearing half
• 1x Lower main bearing half
• 1x Upper main bearing half
• 1x Lower main bearing half
• 1x Upper main bearing half
• 1x Lower main bearing half
• 1x Upper main bearing half
• 1x Lower main bearing half
• 1x Upper main bearing half
• 1x Lower main bearing half
• 1x Upper main bearing half
• 1x Lower main bearing half

Product Description

The ACL 7M8103H-.25 Race Series Main Bearing Set is engineered for the Toyota and Lexus 2JZ-GTE and 2JZ-GE engines found in various models from 1991 to 2005. These bearings are designed to provide enhanced durability and performance under high-RPM and track applications.

Constructed with ACL's Trimetal technology, combining copper, tin, and lead, these bearings offer superior durability and resistance to wear under extreme operating conditions. The hardened steel backs enhance support and retention, while the increased crush design ensures improved bearing retention.

The elimination of flash plating on the back of the bearings improves heat transfer, and the 3/4 groove design ensures optimal oil flow to critical engine components, maintaining consistent performance and reliability. With a .25mm oversize, these bearings are suitable for engines requiring additional clearance.
