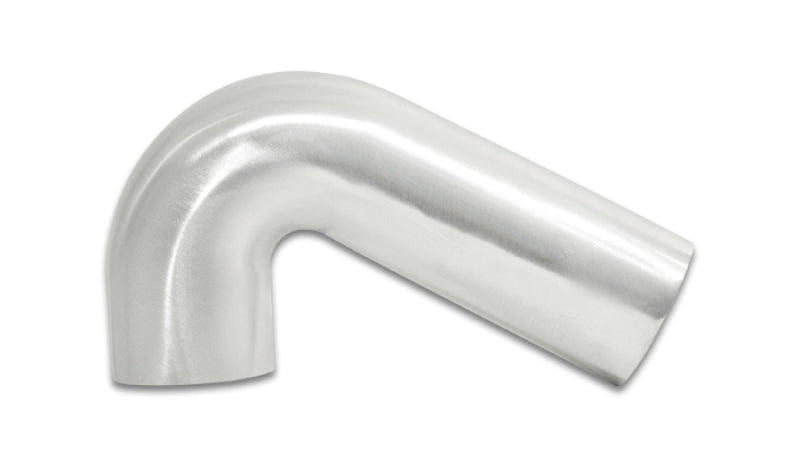

Vibrant Performance 12181 120 Deg Tight Radius Aluminum Bend 2.50" OD 6063 Univers

Vehicle Fitment

• Universal - compatible with any custom intercooler piping, intake fabrication, or charge air system requiring a 2.50" O.D. 120° tight radius aluminum bend in naturally aspirated or pressurized applications

Fitment Notes

• Universal fitment - not vehicle-specific; designed for custom fabrication using 2.50" O.D. aluminum tubing
• 120° bend angle provides a more gradual directional change than a 90° bend - useful when routing piping needs to redirect beyond a right angle in a single section
• Tight 1.75" centerline radius keeps the bend compact despite the wider sweep angle
• Leg Length A: 5.00"; Leg Length B: 1.50" - confirm available clearance before trimming to final length
• For the 90° tight radius bend at 2.50" O.D., use PN 12180; for 120° at 3.00" O.D., use PN 12186
• Sold individually as a single 120° bend section

Features

• True mandrel bent construction maintains a consistent 2.50" internal diameter throughout the full 120° sweep - no kinking or cross-sectional restriction that would reduce airflow
• 6063 aluminum construction is lightweight and suitable for both pressurized intercooler and turbo inlet piping as well as naturally aspirated intake fabrication
• 120° bend angle in a tight 1.75" CLR allows a wide directional sweep in a compact footprint - ideal for routing around engine bay components that require more than a 90° change
• Brushed aluminum finish provides a clean professional appearance and requires minimal surface preparation for TIG welding
• 2mm wall thickness provides adequate rigidity for pressurized applications while keeping weight low

Specifications

• Part Number: 12181
• Product Name: 120° Tight Radius Aluminum Bend - 2.50" O.D.
• Bend Angle: 120°
• Tube O.D.: 2.50"
• Centerline Radius (CLR): 1.75"
• Leg Length A: 5.00"
• Leg Length B: 1.50"
• Wall Thickness: 2mm
• Material: 6063 aluminum alloy
• Finish: Brushed aluminum
• Quantity: Sold individually

Included Components

• 1x Vibrant Performance 120° Tight Radius Aluminum Bend - 2.50" O.D., Brushed (12181)

Product Description

The Vibrant Performance 12181 is a 6063 aluminum 120° tight radius mandrel bend at 2.50" O.D., designed for custom intercooler piping, intake fabrication, and other pressurized or naturally aspirated air system builds. The 120° angle provides a wider directional sweep than a standard 90° bend in a single tube section, making it the right choice when routing needs to redirect beyond a right angle - such as when wrapping around a large engine component or routing from a turbocharger compressor outlet toward an intercooler inlet in a complex path. The 1.75" centerline radius keeps the overall footprint compact despite the wider sweep angle, and true mandrel bending maintains the full 2.50" internal diameter throughout.

Constructed from 6063 aluminum with a brushed finish, the 12181 is lightweight, corrosion resistant, and requires minimal surface preparation for TIG welding. Leg lengths of 5.00" and 1.50" allow trimming to the exact fit required. For the 90° tight radius equivalent at 2.50" O.D., use PN 12180; for the 120° tight radius at 3.00" O.D., use PN 12186. Sold individually.
