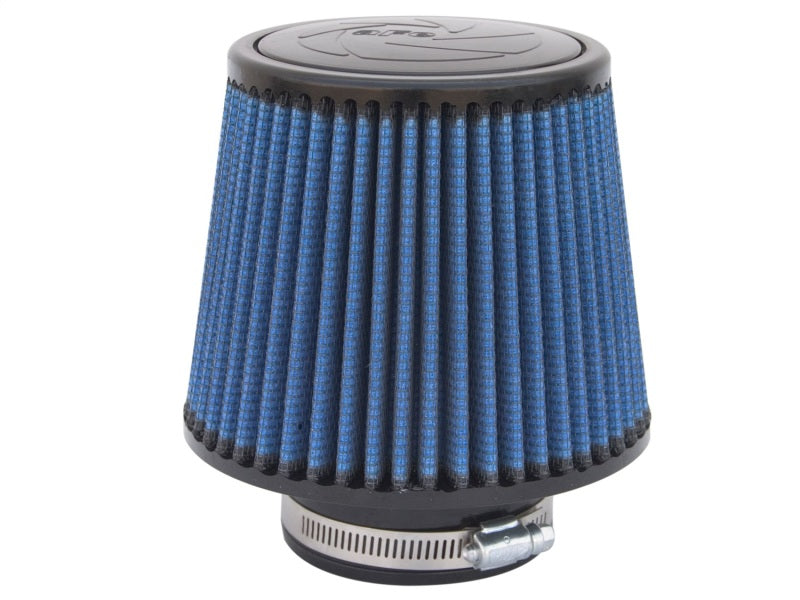

aFe 24-30016 Magnum FLOW Pro 5R Oiled Conical Air Filter 3 in x 6 in x 5 in

Vehicle Fitment

• Universal conical clamp-on air filter - fits any intake system using a 3-inch (76mm) inlet tube or connection point
• Compatible with cold air intake systems, short ram intakes, turbo inlet pipes, and custom intake builds requiring a 3-inch flanged conical filter
• Low-profile 5-inch height design suited to applications with limited vertical clearance above the intake tube connection point

Fitment Notes

• The 24-30016 is a universal clamp-on conical filter - fit is determined by the 3-inch flange inlet diameter. Confirm that the intake tube or connection point on your application measures 3 inches (76mm) OD before ordering.
• The 5-inch height is notably shorter than most conical filters in the 3-inch inlet class. This makes the 24-30016 suitable for applications where vertical clearance is limited - such as under-hood installations near the hood line, fender, or heat shield - but the shorter height provides less total filter surface area than taller options such as the 24-30018 (7 in H) or 24-30031 (14 in H) in the same 3 x 6 x 4-3/4-inch family.
• This is the Pro 5R pre-oiled cotton gauze version. The companion oil-free version is aFe 21-30016 (Pro DRY S), same physical dimensions. Re-oiling required after cleaning.
• A coupler is included for installation on the intake tube.
• Sold individually - one filter per package.

Features

• Pro 5R Five-Layer Oiled Cotton Gauze Media - Maximum Airflow: The 24-30016 uses aFe's Pro 5R filter media - five layers of progressively finer mesh cotton gauze, pre-oiled for maximum performance. Pro 5R is aFe's highest-flowing media, delivering the greatest horsepower and torque gains for street and track applications where peak power output is the primary objective over oil-free maintenance convenience.
• Low-Profile 5-Inch Height - Compact Fitment: The 3-inch flange with 6-inch base and 4-3/4-inch top across just 5 inches of height makes the 24-30016 one of the most compact options in the 3-inch inlet conical family. The low-profile design fits installations where taller filters would contact the hood, heat shield, or other under-hood components - providing the performance benefits of an oiled cotton gauze conical filter in a space-constrained package.
• Tall, Open, Evenly Spaced Pleats - Extended Service Intervals: Despite the compact 5-inch height, the open pleat design maximizes media surface area within the available filter profile - providing good dust-holding capacity and maintaining consistent airflow performance between cleaning and re-oiling cycles.
• 100% Polyurethane Top and Base: The polyurethane top and base provide structural rigidity, dimensional stability, and resistance to fuel, oil, and under-hood heat - maintaining the filter's shape and sealing dimensions across all operating temperatures.
• Pliable Polyurethane Flange with Integrated Bump Seal - No-Leak Connection: The pliable polyurethane flange with integrated bump seal creates a positive no-leak connection to the intake tube when the hose clamp is tightened - no sealants, tape, or gaskets required. The seal conforms to the intake tube and always returns to its original form after removal.
• Washable and Reusable: Clean with aFe's Pro 5R filter cleaner, rinse with water, allow to fully air-dry, then re-oil with aFe Pro 5R blue filter oil (restore kit PN 90-50001 or 90-50501) before reinstalling. Multiple cleaning cycles are supported without media degradation.

Specifications

• Part Number: 24-30016
• Brand: aFe Power (Magnum FLOW series)
• Product Type: Universal Conical Flanged Clamp-On Air Filter
• Filter Media: Pro 5R - Five-Layer Pre-Oiled Cotton Gauze
• Color: Blue
• Flange / Inlet ID: 3 in (76mm)
• Base OD: 6 in (152mm)
• Top OD: 4-3/4 in (121mm)
• Height: 5 in (127mm)
• Filter Style: Conical, flanged, clamp-on
• Frame Material: 100% Polyurethane (top and base)
• Seal: Pliable polyurethane flange with integrated bump seal
• Oiling Required: Yes - re-oil after cleaning with aFe Pro 5R blue filter oil
• Washable / Reusable: Yes
• Coupler Included: Yes
• MSRP: $87.50
• Companion Filter (same dims, oil-free): 21-30016 (Pro DRY S)
• Fitment: Universal (3-inch inlet)
• Quantity: 1 (sold individually)

Included Components

• 1x aFe Magnum FLOW Pro 5R Conical Air Filter (24-30016)
• 1x Coupler

Product Description

The aFe 24-30016 is a Magnum FLOW Pro 5R universal conical clamp-on air filter in the compact 3 x 6 x 4-3/4 x 5-inch configuration - designed for 3-inch inlet intake systems where vertical clearance limits the use of taller conical filters. The Pro 5R five-layer oiled cotton gauze media delivers maximum airflow for horsepower and torque output, making this the performance-focused choice for 3-inch inlet applications with limited hood clearance.

The low-profile 5-inch height fits under-hood environments where taller 7-inch or 9-inch conical filters would contact surrounding components. For installations with more vertical clearance, aFe offers the same 3 x 6 x 4-3/4-inch base dimensions in 7-inch height (24-30018) and 14-inch height (24-30031) variants. For oil-free maintenance in the same 5-inch height, order aFe 21-30016 (Pro DRY S). Washable and reusable with aFe's restore kit (PN 90-50001 or 90-50501). Coupler included. Universal fit for 3-inch inlet applications.
