ARB 171314 Remote Hose Coupling Mount Kit US Industrial Standard Quick-Connect

Vehicle Fitment

Universal - this kit is not vehicle-specific and is compatible with any ARB on-board air compressor paired with ARB 07402XX series braided hose (740201, 740203, 740204, 740206).

Fitment Notes

• Designed for use with ARB on-board air compressors - compressor sold separately
• Requires ARB 07402XX series braided hose to connect the compressor to the remote coupling - hose sold separately
• The quick-connect coupler uses US Industrial Standard sizing - compatible with US Industrial Standard male quick-connect air tools and inflation accessories
• The included JIC-04 to 1/4 in. NPT fitting and two JIC-04 90-degree elbows allow flexible routing of the braided hose to the bracket in tight or awkward installation locations
• The 3-way mounting bracket supports three different coupling orientations - vertical, horizontal, or angled - to suit the available mounting surface on your vehicle

Features

• Mounts an ARB US Industrial Standard quick-connect hose coupling at a fixed, accessible location anywhere on the vehicle - eliminating the need to run hose out from the compressor for each use
• Female US Industrial Standard quick-connect coupler accepts standard air tool plugs for on-demand tire inflation, air tools, or locker actuation
• Steel construction with black finish for durability in underbody, firewall, or exterior panel mounting environments
• 3-way mounting bracket allows the coupling to be oriented in three different directions to fit virtually any mounting surface and access angle
• JIC-04 to 1/4 in. NPT fitting converts the braided hose's JIC-04 flare end to a standard NPT thread for connection to the coupler body
• Two JIC-04 90-degree elbows provide routing flexibility when connecting the braided hose to the coupling bracket in confined spaces
• All hardware included - no additional fittings or brackets required beyond the ARB compressor and braided hose

Specifications

• Coupler Type: Female US Industrial Standard quick-connect
• Hose Bore: 1/4 in. (6.5mm)
• Coupler Material: Steel
• Coupler Finish: Black
• Mounting Bracket Orientations: 3
• Compatible Hose Series: ARB 07402XX (740201, 740203, 740204, 740206)
• Required Companion Parts: ARB compressor (sold separately), ARB 07402XX braided hose (sold separately)
• Warranty: 2-year limited

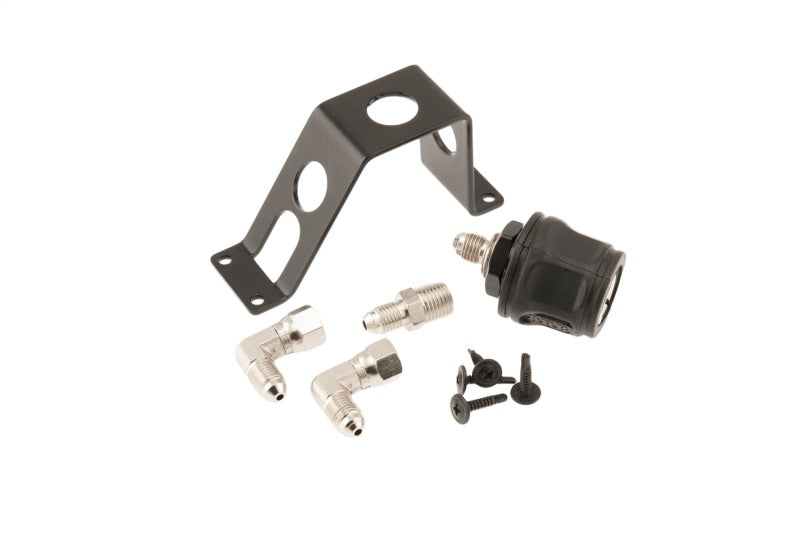

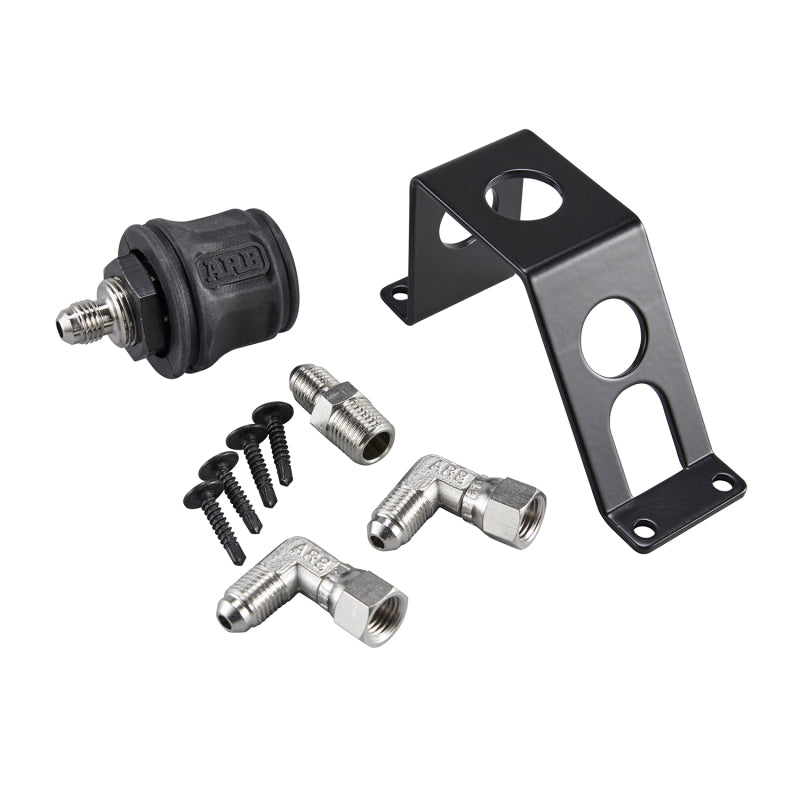

Included Components

• 1x female US Industrial Standard quick-connect hose coupling (steel, black)
• 1x 3-way mounting bracket with mounting screws
• 1x JIC-04 to 1/4 in. NPT fitting
• 2x JIC-04 90-degree elbows

Product Description

The ARB 171314 Remote Hose Coupling Mount Kit allows you to permanently mount an ARB US Industrial Standard quick-connect air coupling at any location on your vehicle - firewall, roll cage tube, body panel, or bumper - so compressed air is available on demand without running loose hose from the compressor each time. The kit is designed to work as part of a complete ARB on-board air system: the compressor feeds air through an ARB 07402XX series braided hose to the remote coupling mount, which terminates in a female US Industrial Standard quick-connect receptacle. Tire inflation chucks, air tools, and other US Industrial Standard accessories plug and unplug instantly from the fixed mount point.

The 3-way mounting bracket gives three different coupling orientation options - up, forward, or sideways - so the coupling face is always accessible regardless of where on the vehicle it ends up mounted. The included JIC-04 to 1/4 in. NPT fitting and two JIC-04 90-degree elbows handle the transition from the braided hose's flare ends to the coupling body and allow clean routing in tight spaces. All necessary hardware is included; the only additional items needed are the ARB compressor and an ARB 07402XX braided hose.
