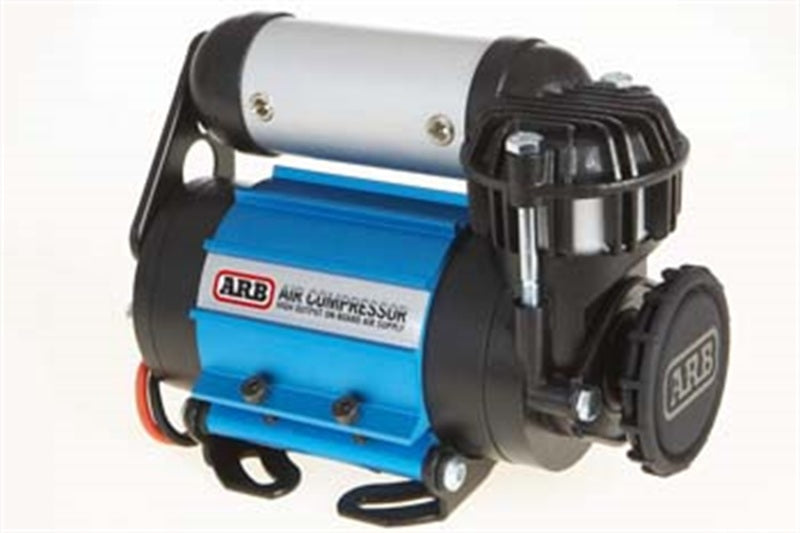

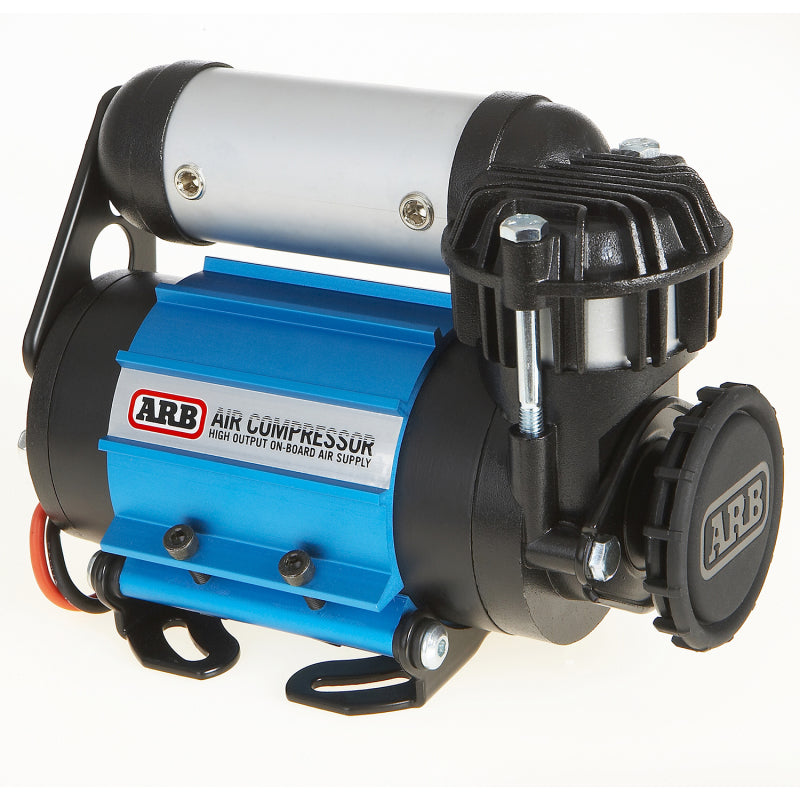

ARB CKMA24 24V Onboard Air Compressor for Universal 4WD Applications

Vehicle Fitment

• Universal Fit - Compatible with 24V systems in off-road vehicles, trucks, and 4x4s

Features

• High-output 24V compressor designed for ARB Air Locker activation and tire inflation
• Sealed for moisture and dust resistance (IP55 rated)
• Hard-anodized cylinder bore reduces friction and wear
• PTFE-impregnated carbon fiber piston seal ensures long-term reliability
• Remote-mount, splash-resistant air filter with washable sintered bronze element
• Internally thermal-protected motor prevents overheating
• Over-pressure safety valve and heavy-duty maxi-fuse for system protection
• Compact, lightweight design with anodized mounting bracket for 180° repositioning

Specifications

• Part Number: CKMA24
• Voltage: 24V DC
• Max Pressure: 175 PSI
• Air Flow: 3.08 CFM @ 0 PSI; 2.34 CFM @ 29 PSI
• Current Draw: 18 Amps
• Duty Cycle: 50% (30 min on / 30 min off)
• Dimensions: 7.5" L x 3.9" W x 5.7" H
• Weight: 7.7 lbs (3.5 kg)
• Tank Outlet: 1/4" NPT
• Oil Type: Oil-free
• Certifications: EN 55014.1, EMC Directive 2004/108/EC compliant
• Warranty: 3 years

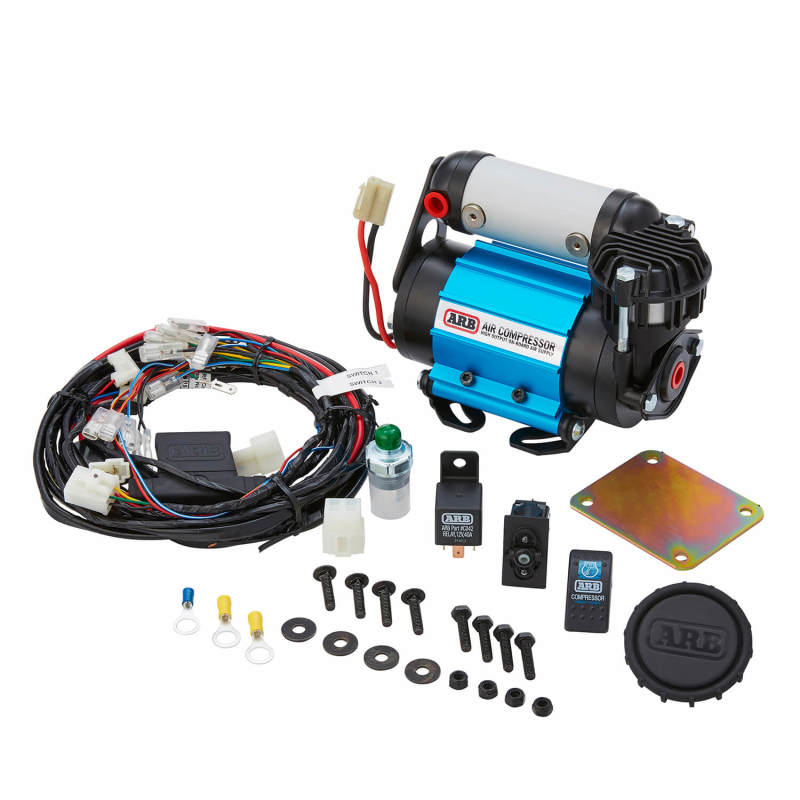

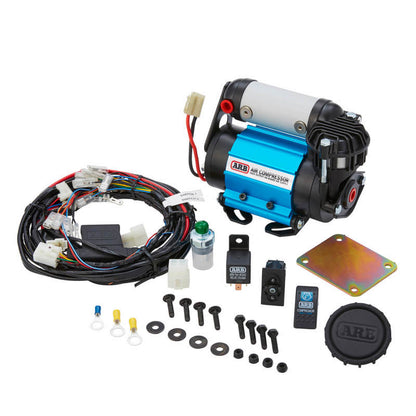

Included Components

• Fully assembled and tested 24V air compressor
• Complete wiring loom with Air Locker solenoid plug-in contacts
• OEM-quality compressor isolating dash switch
• Air Locker supply-rated pressure switch (70-100 PSI)
• Relocatable splash-resistant air filter with washable high-flow sintered bronze filter cartridge
• Mounting hardware with reinforcing backing plate
• Comprehensive photo-illustrated installation guide

Product Description

The ARB CKMA24 24V Onboard Air Compressor is engineered to meet the demands of off-road enthusiasts requiring a reliable and compact air source. Designed primarily for activating ARB Air Lockers, this compressor also excels at tire inflation and powering air tools, making it an essential component for any 4WD setup.

Constructed with high-quality materials, including a hard-anodized cylinder bore and PTFE-impregnated carbon fiber piston seal, the CKMA24 ensures durability and long service life. Its oil-free design and sealed components provide resistance against moisture and dust, while the integrated thermal protection safeguards the motor during extended use.

The compressor's compact dimensions allow for versatile mounting options, and the included wiring loom simplifies installation. Whether you're navigating challenging terrains or preparing for overland adventures, the ARB CKMA24 delivers consistent performance to keep your vehicle equipped for any situation.
